Headlamp (For USA): Disassembly

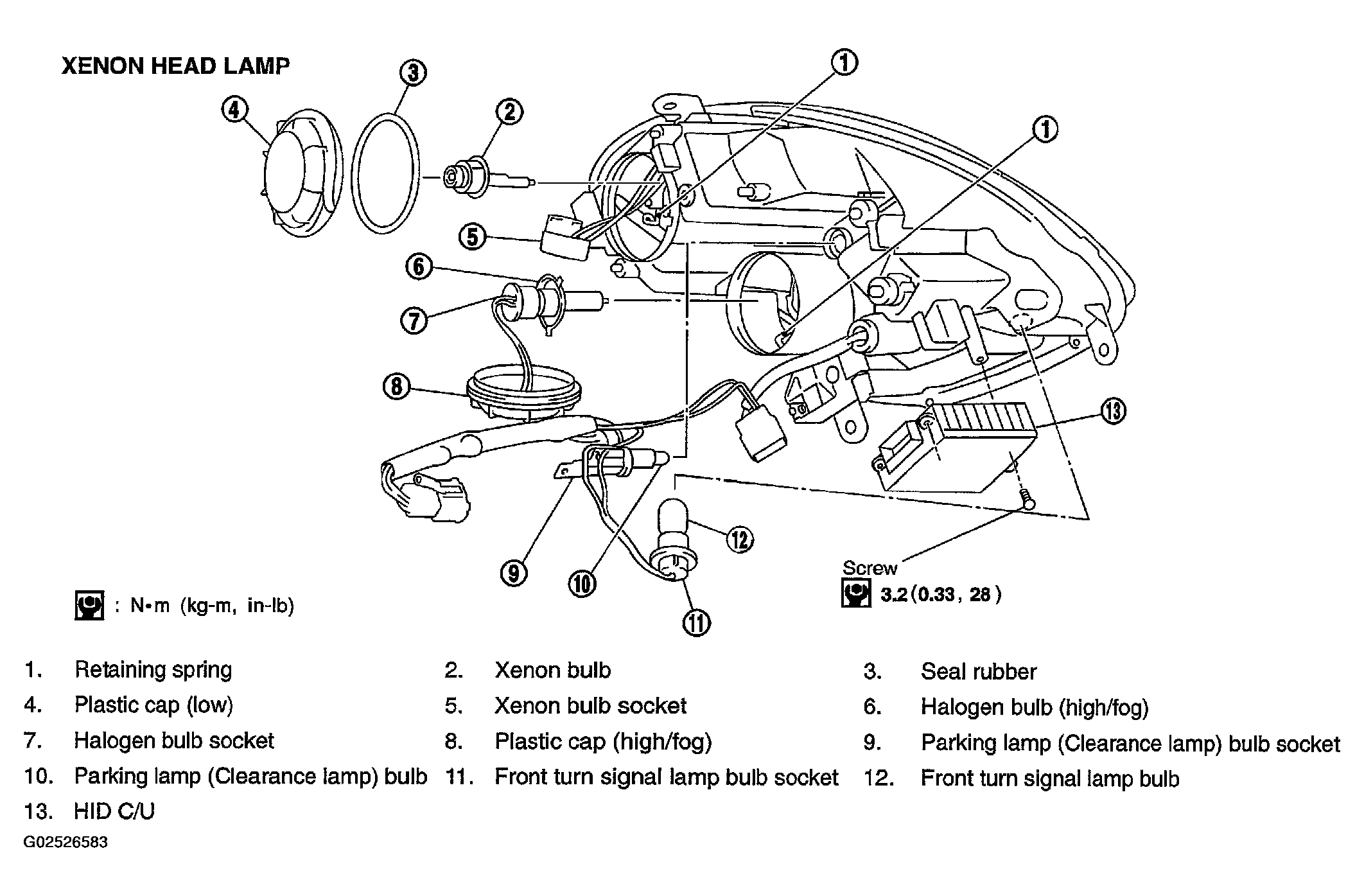

Fig 1: Exploded View Of Xenon Head Lamp
G02526583Courtesy of NISSAN MOTOR CO., U.S.A.

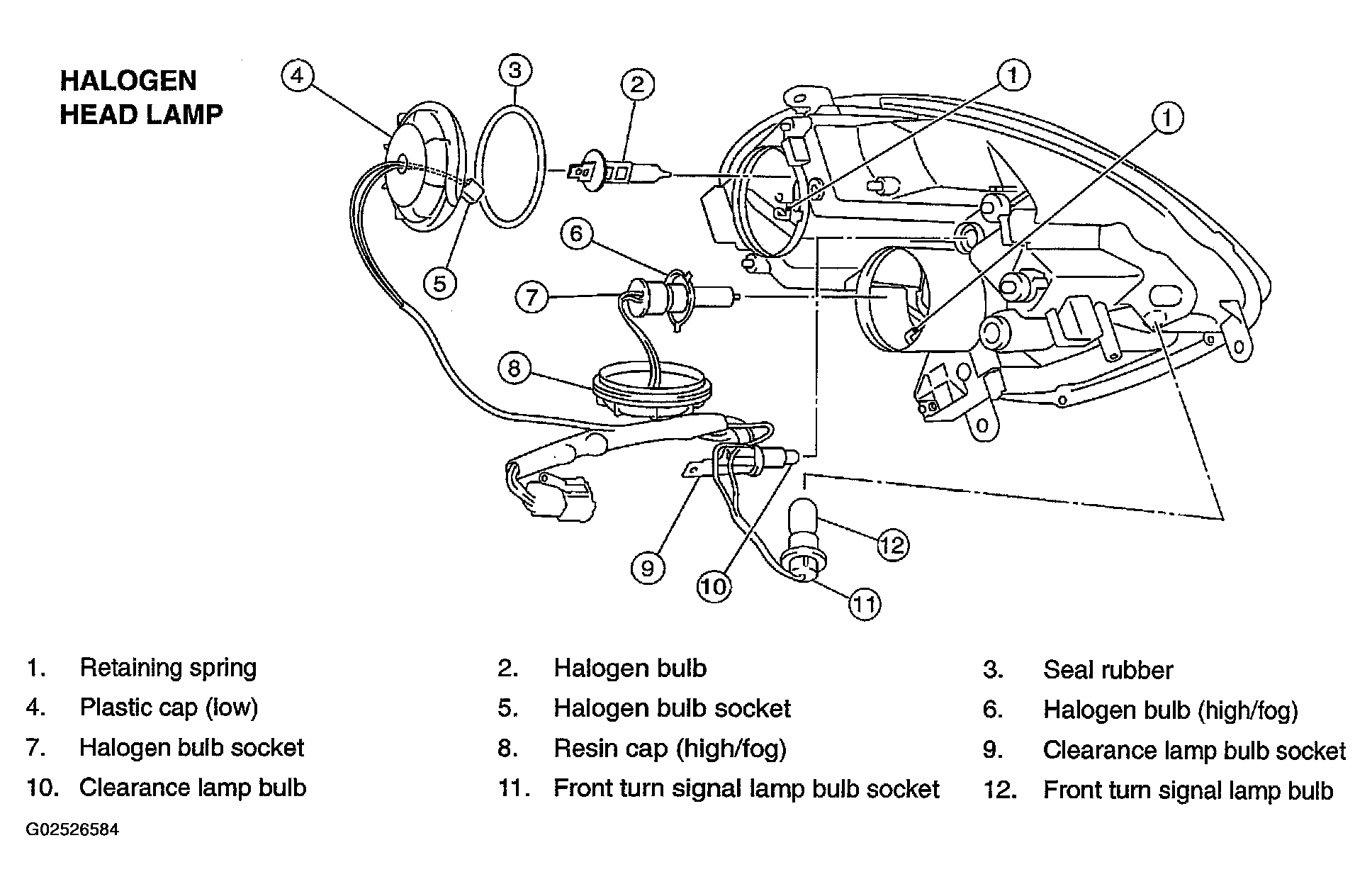

Fig 2: Exploded View Of Halogen Headlamp
G02526584Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Turn plastic cap (low) counterclockwise and unlock it.
  2. Turn xenon bulb socket counterclockwise, and unlock it. (Xenon)
  3. Unlock retaining spring, and remove xenon bulb (low). (Xenon)
  4. Unlock retaining spring, and remove halogen bulb (low). (Halogen)
  5. Disconnect HID control unit connector, and remove HID control unit screws. (Xenon)
  6. Turn plastic cap (high/fog) counterclockwise, and unlock it.
  7. Disconnect the terminal connected to the halogen bulb.
  8. Unlock retaining spring, and remove halogen bulb (high/fog).
  9. Turn clearance lamp bulb socket counterclockwise and unlock it.
  10. Remove clearance lamp bulb from its socket.
  11. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
  12. Remove front turn signal lamp bulb from its socket.
