CONSULT-II Functions (BCM): Notes

CONSULT-II executes the following functions by combining data reception and command transmission via the communication line from BCM. Work support, self-diagnosis, data monitor, and active test display.

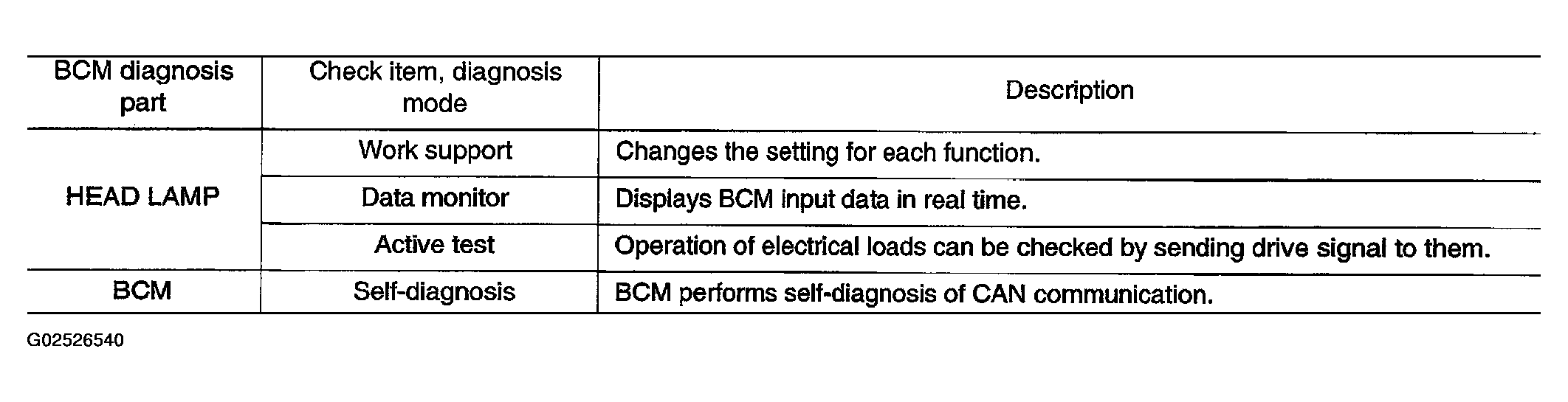

Fig 1: Diagnosis Description Table
Courtesy of NISSAN MOTOR CO., U.S.A.
