Adjustment Using An Adjustment Screen (Light/Dark Borderline)

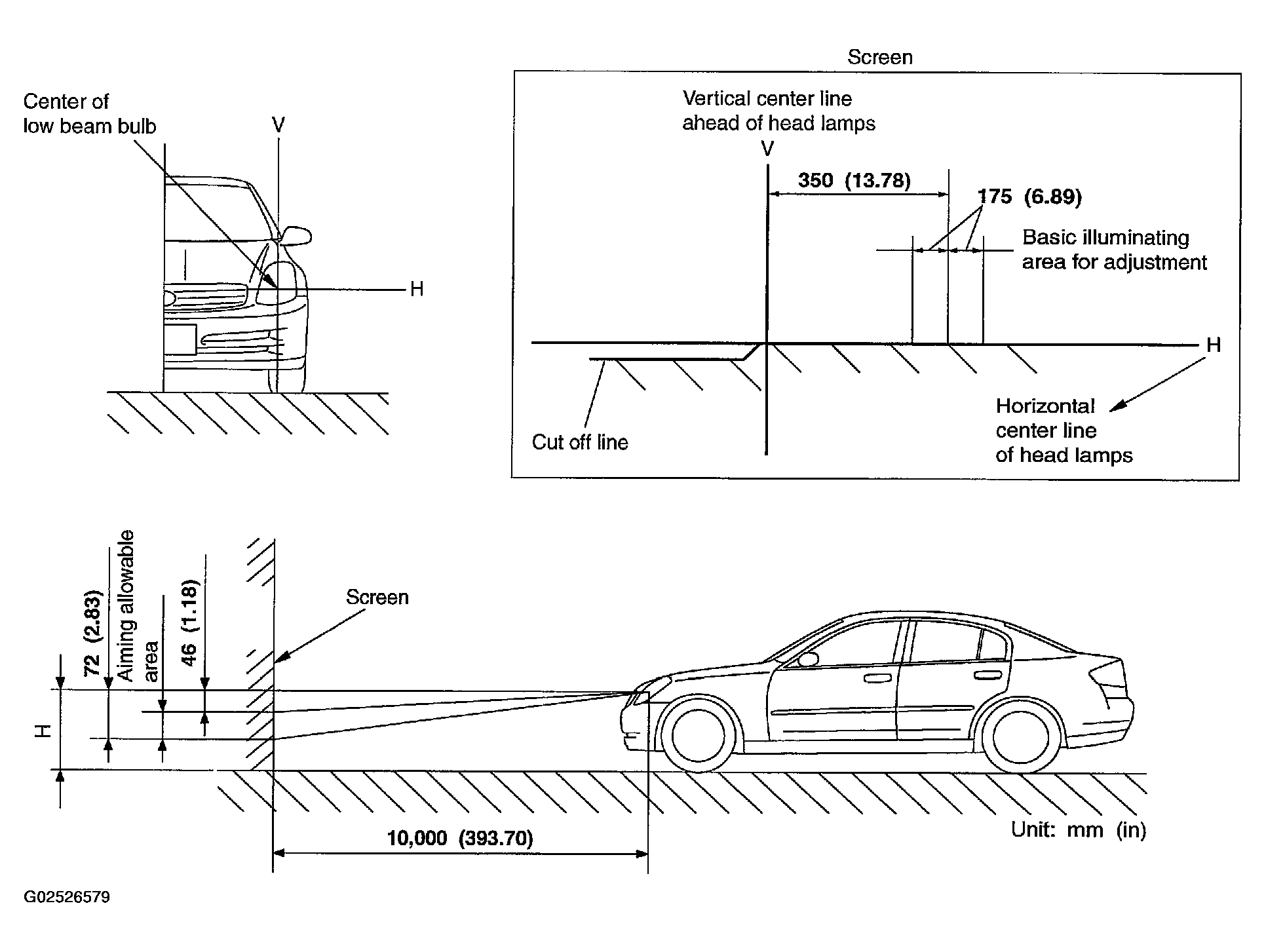

Fig 1: Adjustment Using An Adjustment Screen (Light/Dark Borderline)

Courtesy of NISSAN MOTOR CO., U.S.A.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming. Use the aiming chart shown in the figure.

• Basic illumination area for adjustment should be within the range shown on the aiming chart. Adjust headlamp accordingly.
