Steering Column Shaft

When securing steering column shaft with bolts, position it so that both left and right gaps between instrument panel and steering column shaft become identical.

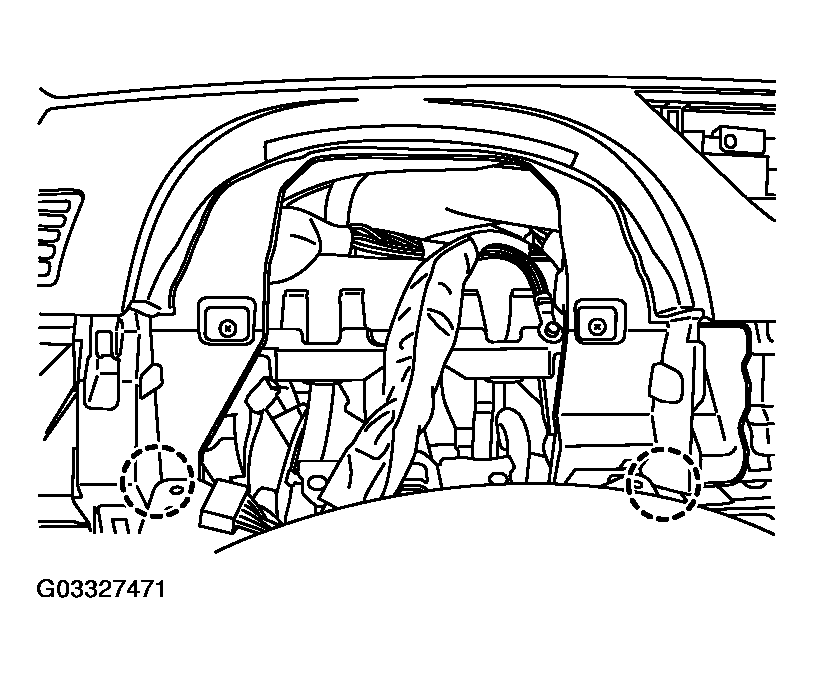

Fig 1: Installing Steering Column Shaft
G03327471Courtesy of NISSAN MOTOR CO., U.S.A.
