Console Finisher (A/T Models)

Put selector lever to driving position.
Put indicator panel to front side.
Connect each harness connectors.

Fig 1: Indicator Panel Position
Courtesy of NISSAN MOTOR CO., U.S.A.
While pushing forward and holding A/T indicator panel, engage metal clip at front of console finisher. Then insert guide pin into A/T device guide.
CAUTION: Guide pin at back of console finisher can be easily broken. Be careful not to break it when working.

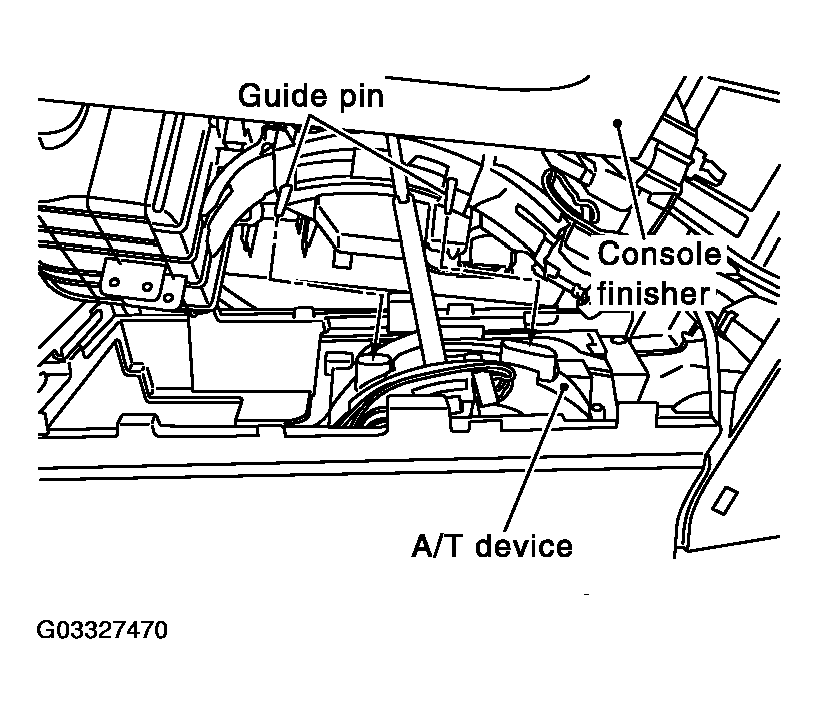

Fig 2: Inserting Guide Pin Into A/T Device Guide
Courtesy of NISSAN MOTOR CO., U.S.A.
