Center Box Assembly: Notes

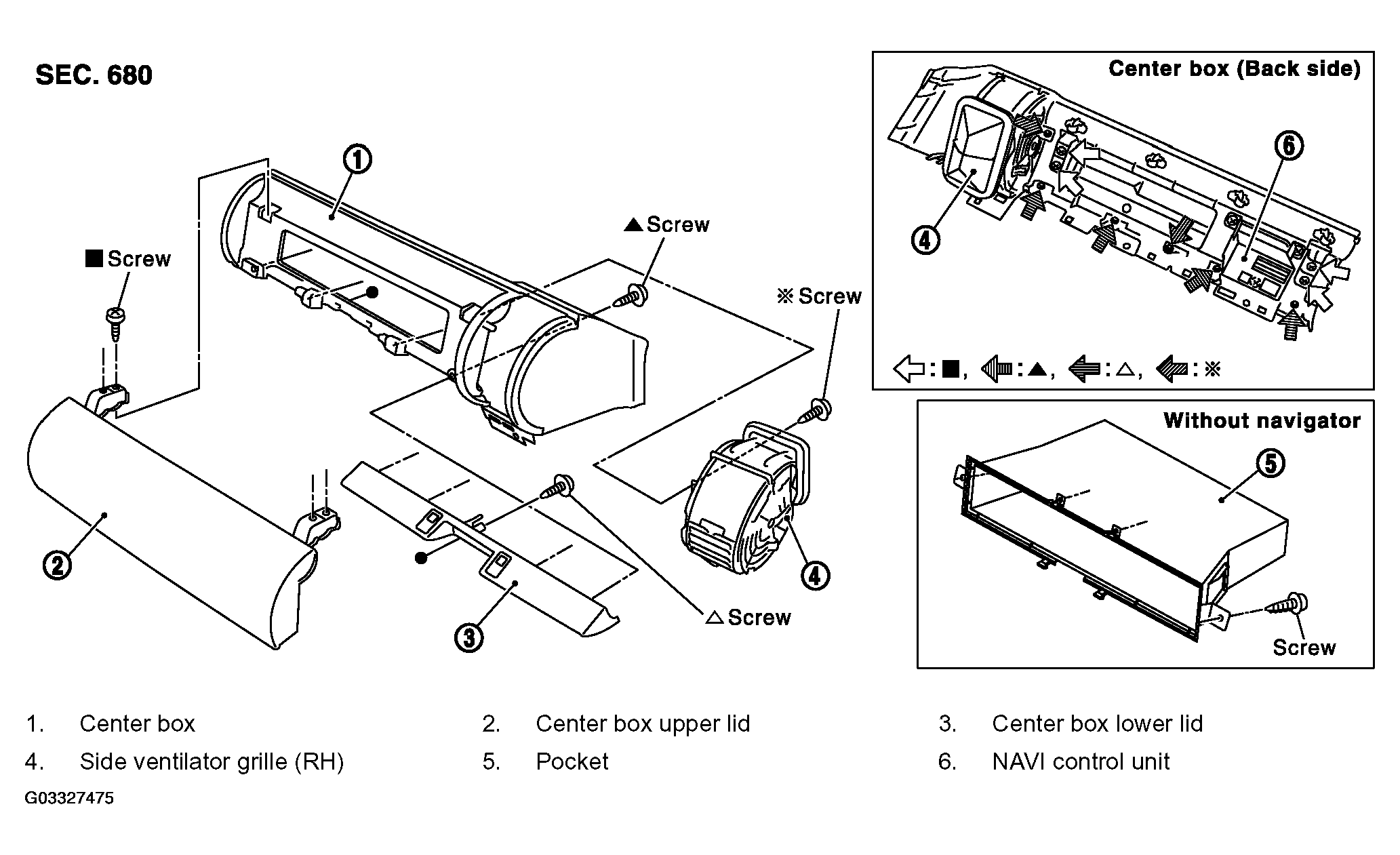

Fig 1: Center Box Assembly Components
G03327475Courtesy of NISSAN MOTOR CO., U.S.A.
