Wiring Diagram - COMPASS -

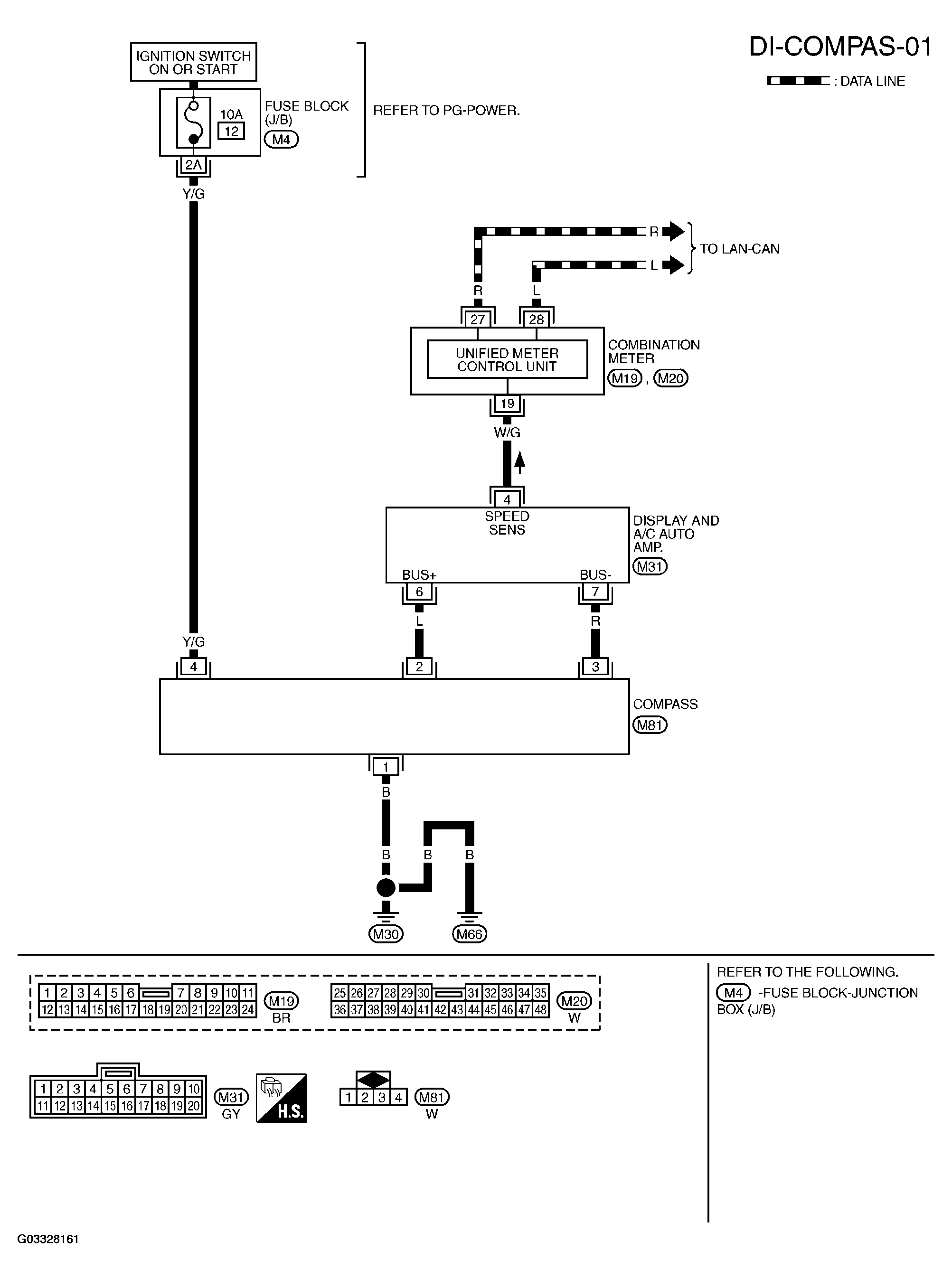

Fig 1: Wiring Diagram - D1-COMPAS-01

G03328161

Courtesy of NISSAN MOTOR CO., U.S.A.
