Wiring Diagram - METER -

*:For further information, refer to IDENTIFICATION NUMBER .

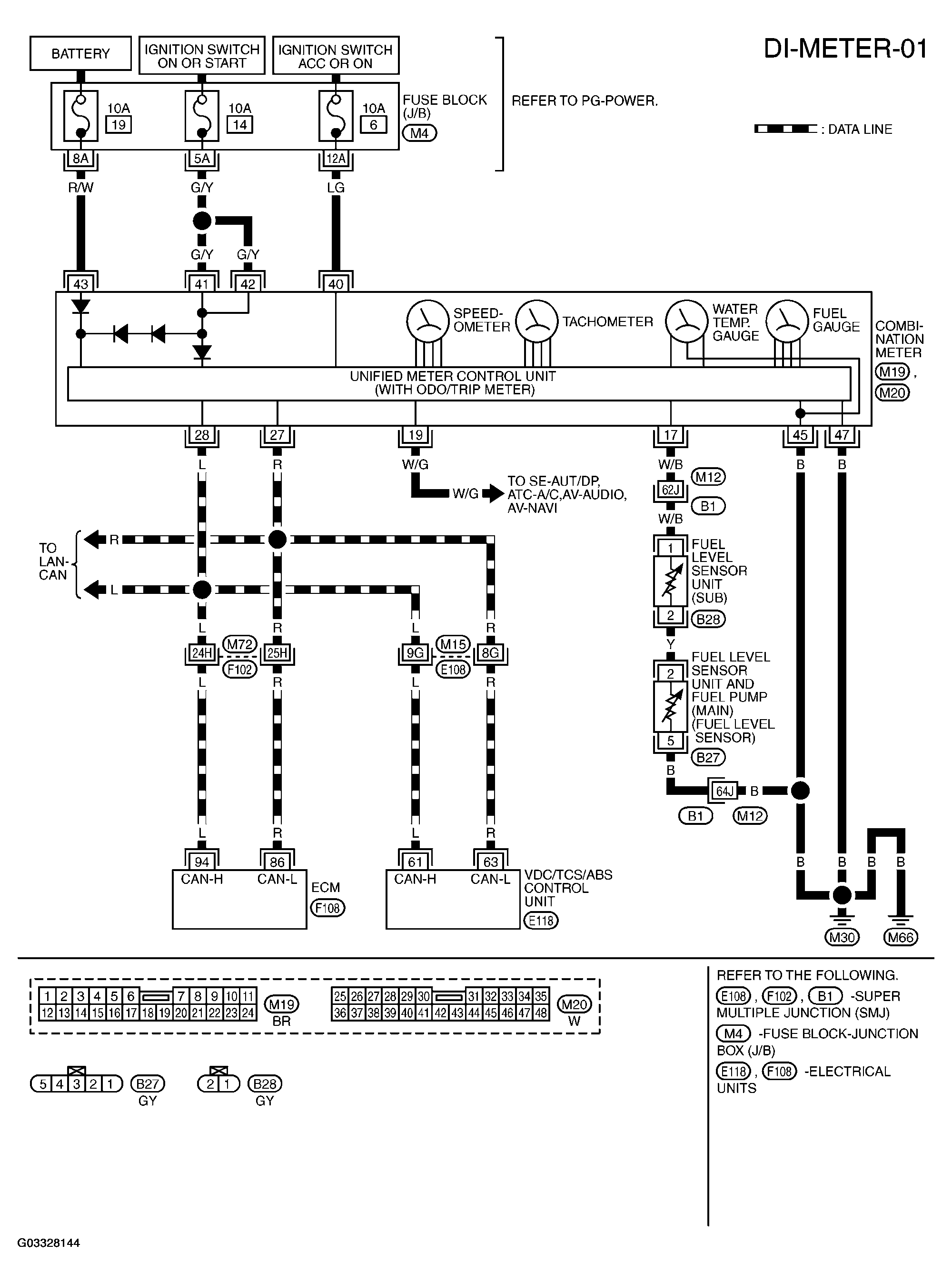

Fig 1: Wiring Diagram - DI-METER-01
G03328144Courtesy of NISSAN MOTOR CO., U.S.A.
