Terminals and Reference Value for Combination Meter

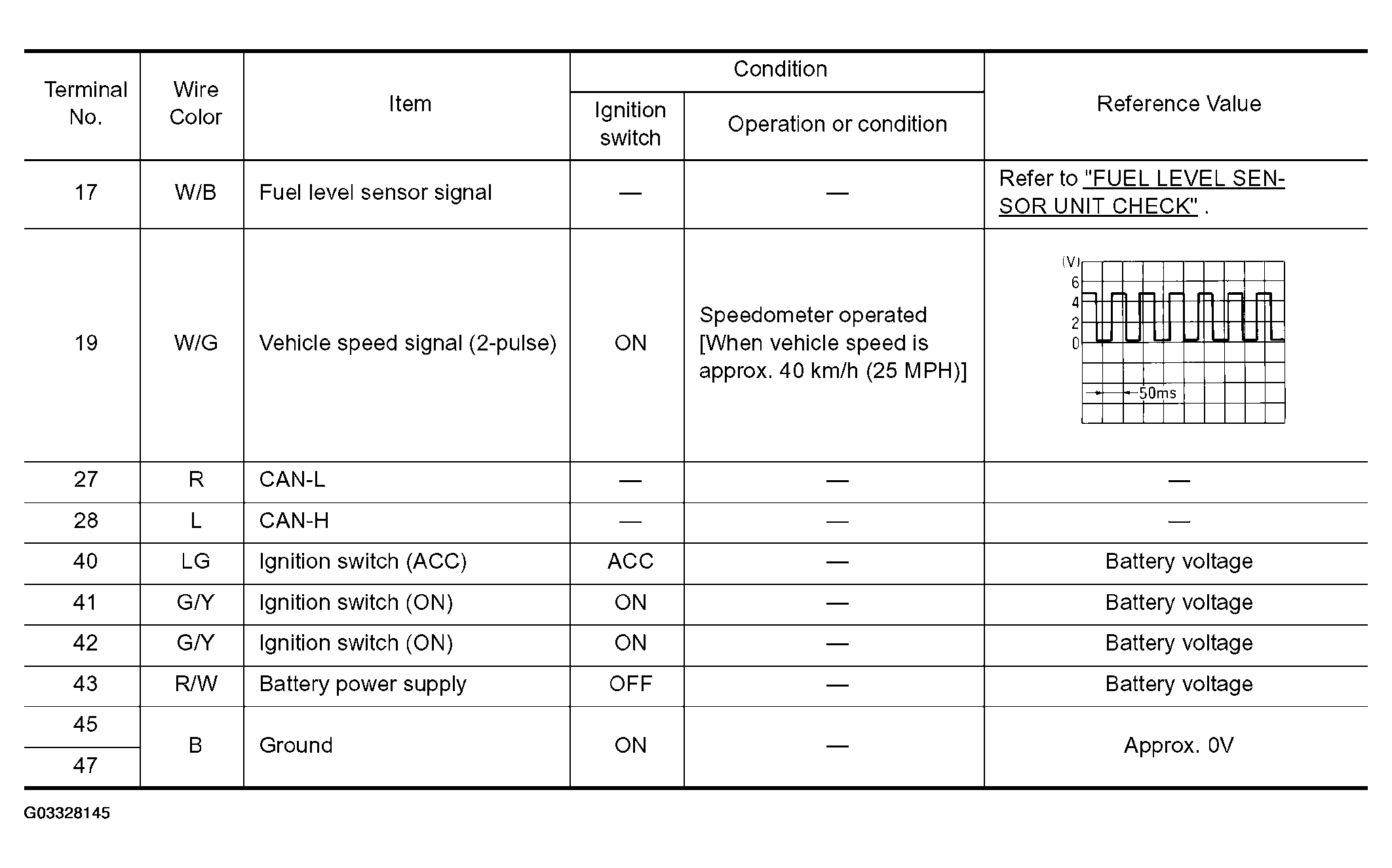

Fig 1: Identifying Terminals And Reference Value For Combination Meter

G03328145

Courtesy of NISSAN MOTOR CO., U.S.A.
