Combination Meters: Schematic

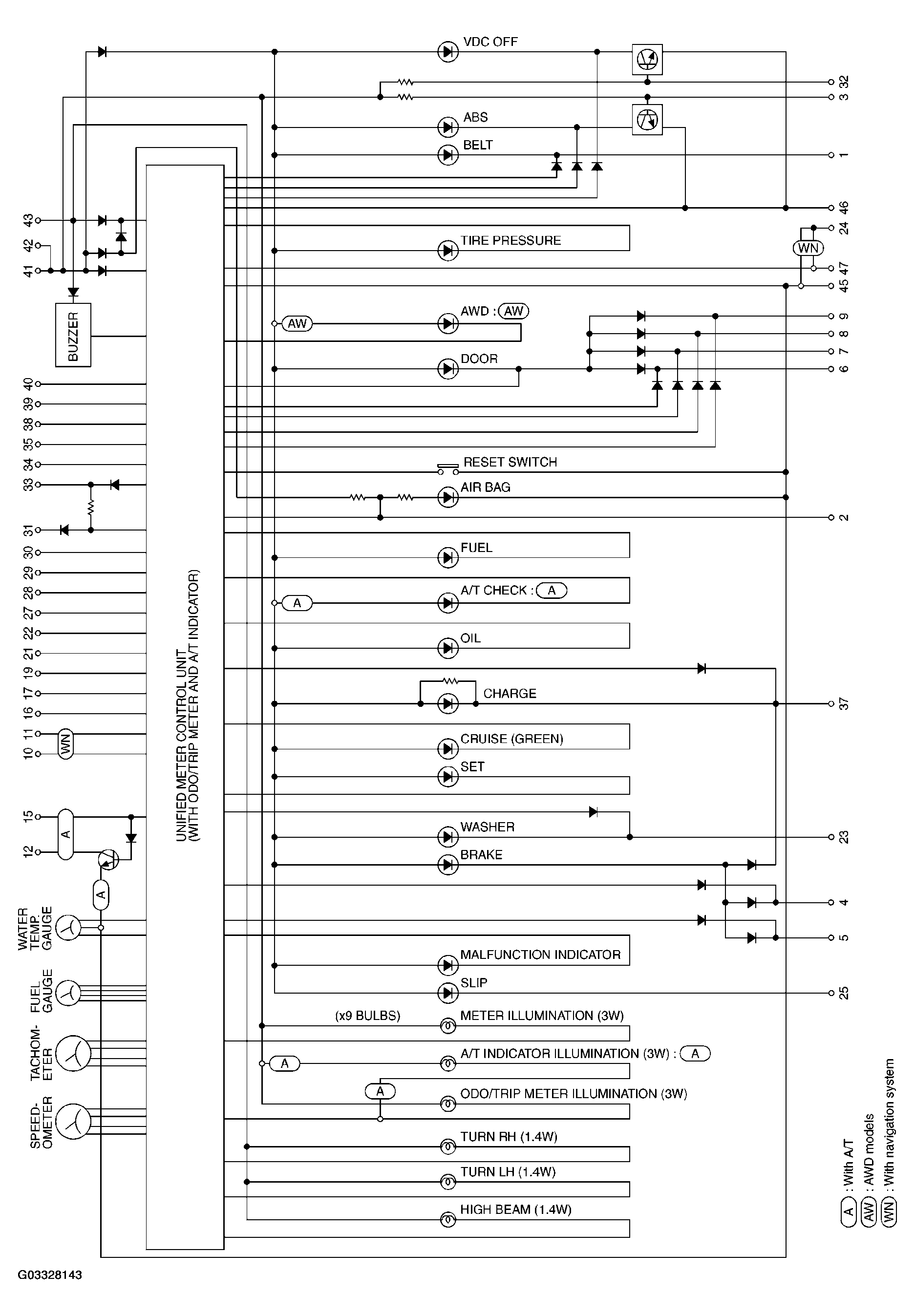

Fig 1: Schematic Diagram

G03328143

Courtesy of NISSAN MOTOR CO., U.S.A.
