Diagnosis Flow

1. Turn ignition switch ON.
2. Check that warning lamps (such as MIL and oil pressure warning lamp) illuminate.

Do warning lamps illuminate?

1. YES: GO TO 2.
2. NO: Check power supply circuit of combination meter when ignition switch is ON. Refer to POWER SUPPLY AND GROUND CIRCUIT CHECK .

Perform combination meter self-diagnosis. Refer to SELF-DIAGNOSIS FUNCTION .

Does self-diagnosis function operate?

1. YES: GO TO  3.
2. NO: Check battery power supply circuit and ground circuit of combination meter. Refer to POWER SUPPLY AND GROUND CIRCUIT CHECK .

Check segment display status of odo/trip meter and A/T indicator.

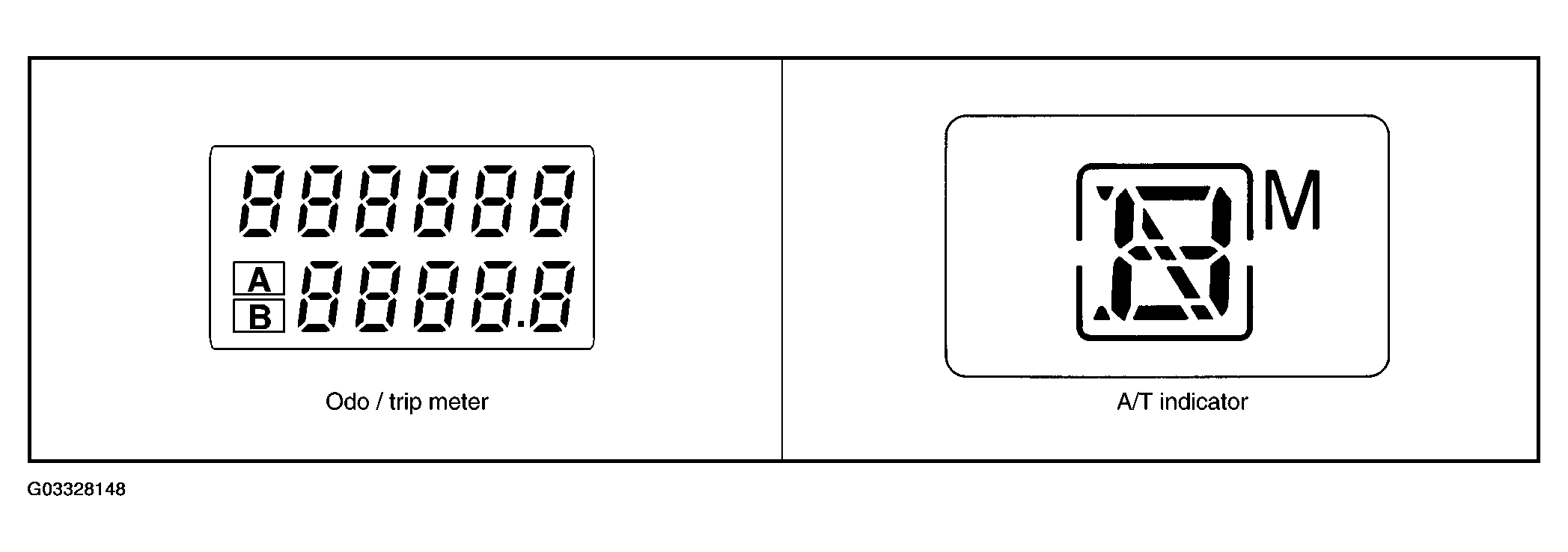

Fig 1: Displaying ODO/Trip Meter And A/T Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the display normal?

1. YES: GO TO  4.
2. NO: Replace combination meter.

While checking fuel warning lamp, confirm illumination of fuel warning lamp.

OK or NG

1. OK: GO TO  5.
2. NG: Replace combination meter.

Check indication of each meter/gauge in self-diagnosis mode.

Fig 2: Checking Indication Of Each Meter/Gauge In Self-Diagnosis Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Go to DIAGNOSIS RESULTS . Refer to DIAGNOSIS RESULTS .
2. NG: Replace combination meter.
