2004 - Combination Meters - Sedan
>>
Combination Meters
>>
Wiring Diagram - METER -
Wiring Diagram - METER -
*:For further information, refer to
IDENTIFICATION INFORMATION
.

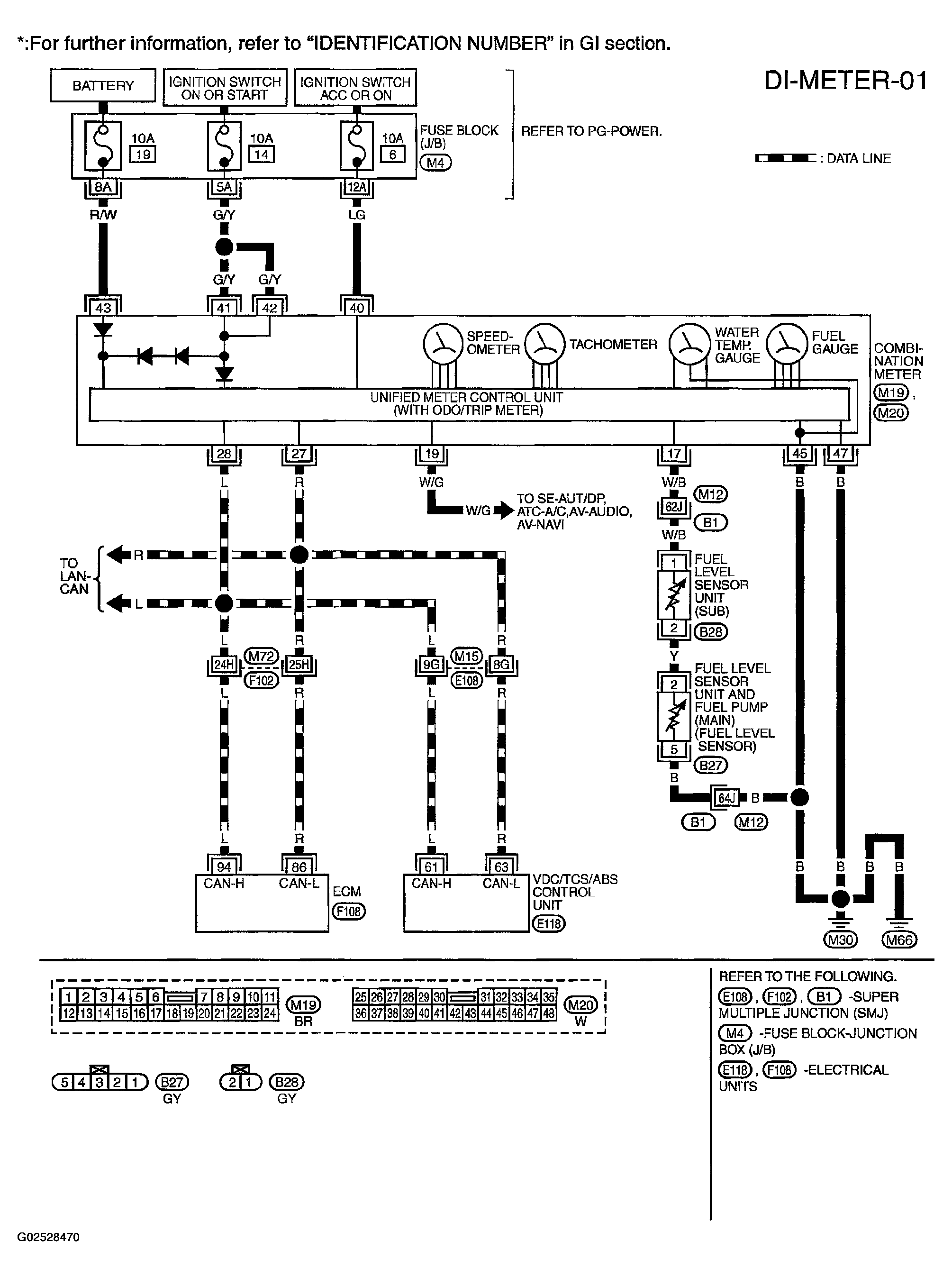

Fig 1: Combination Meter Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
