Terminals and Reference Value for Combination Meter

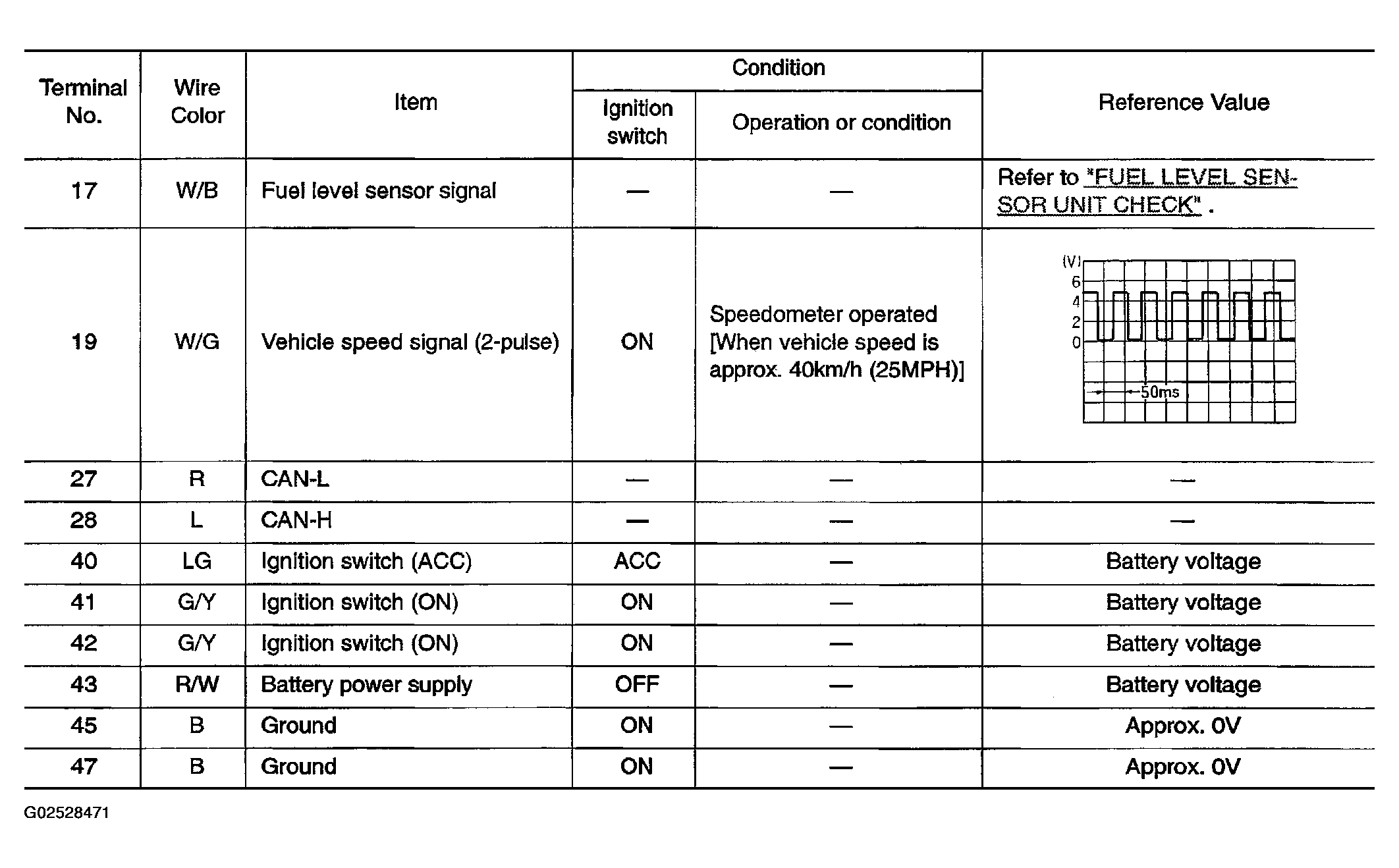

Fig 1: Terminals And Reference Value Table For Combination Meter

G02528471

Courtesy of NISSAN MOTOR CO., U.S.A.
