Home >> Infiniti >> 2004 >> G35 x >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> 2004 - Combination Meters - Sedan >> Combination Meters >> Schematic

Combination Meters: Schematic

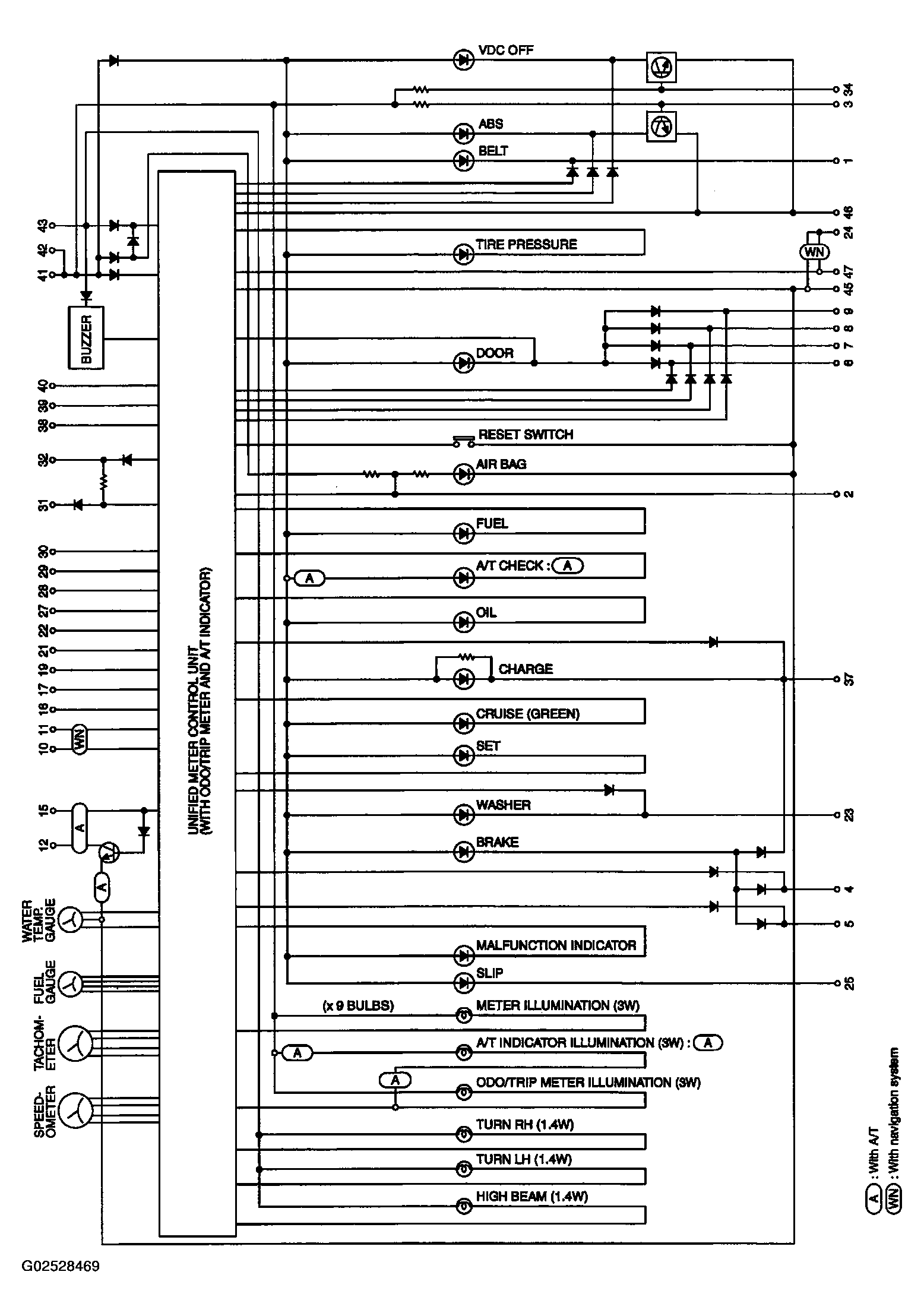

Fig 1: Combination Meter Schematic

G02528469

Courtesy of NISSAN MOTOR CO., U.S.A.
