Removal and Installation for Combination Meter: Removal

  1. Remove column cover. Refer to STEERING COLUMN
  2. Remove combination switch. Refer to TURN SIGNAL & HAZARD WARNING LAMPS - SEDAN - .
  3. Remove instrument lower cover. Refer to INSTRUMENT PANEL ASSEMBLY .
  4. Remove the screw (4) and remove cluster lid A and combination meter assembly. Refer to INSTRUMENT PANEL ASSEMBLY .

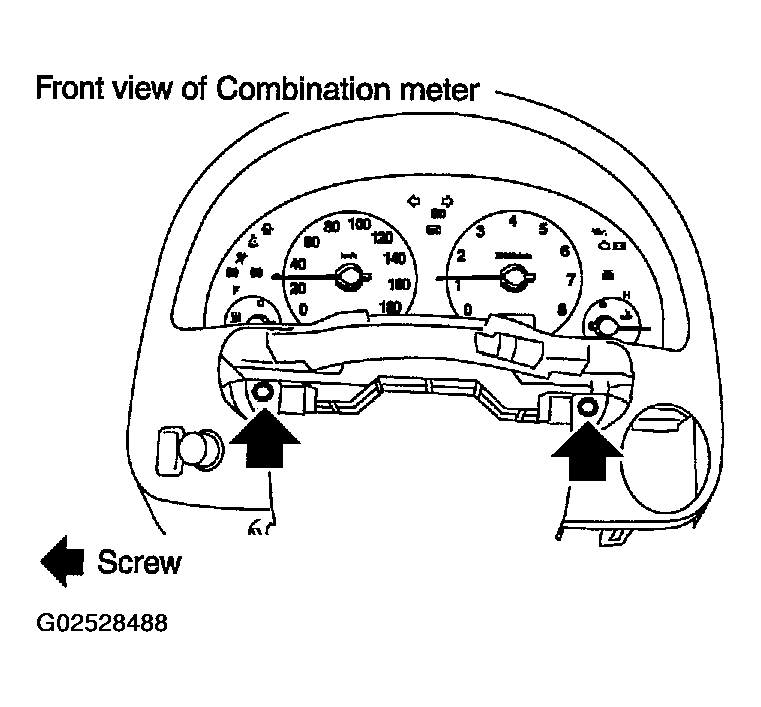

    Fig 1: Front View Of Combination Meter
    G02528488Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect connectors and remove combination meter.
  6. Disassembly cluster lid A and combination meter.

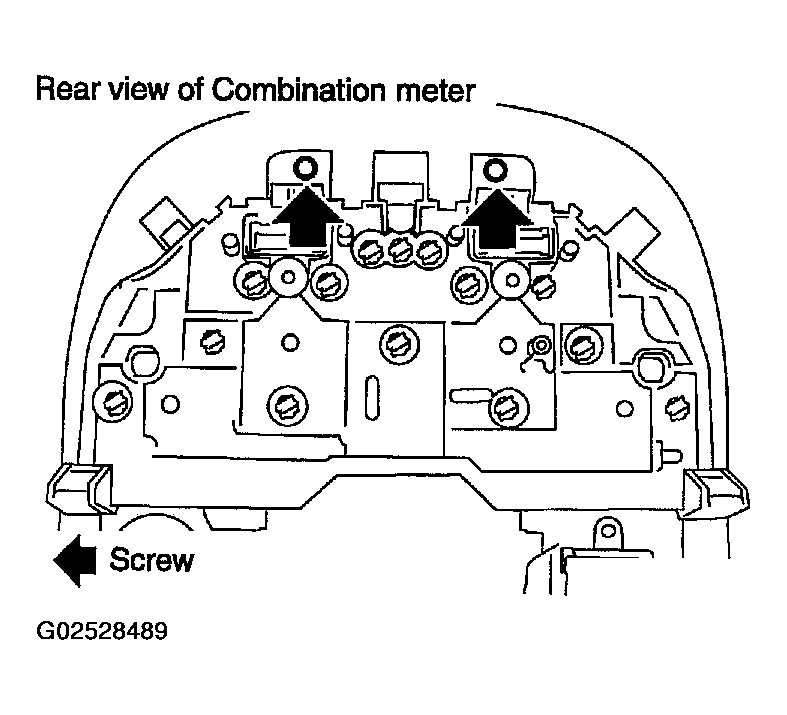

    Fig 2: Rear View Of Combination Meter
    G02528489Courtesy of NISSAN MOTOR CO., U.S.A.
