Diagnosis Flow

1. Turn ignition switch ON.
2. Check that warning lamps (such as MIL and oil pressure warning lamp) illuminate.

Do warning lamps illuminate?

1. YES: GO TO 2.
2. NO: Check ignition power supply system of combination meter. Refer to Power Supply and Ground Circuit Check  .

Perform combination meter self-diagnosis. Refer to SELF-DIAGNOSIS FUNCTION  .

Does self-diagnosis function operate?

1. YES: GO TO 3.
2. NO: Check battery power supply of combination meter and ground system. Refer to Power Supply and Ground Circuit Check  .

Check segment display status of odo/trip meter and A/T indicator.

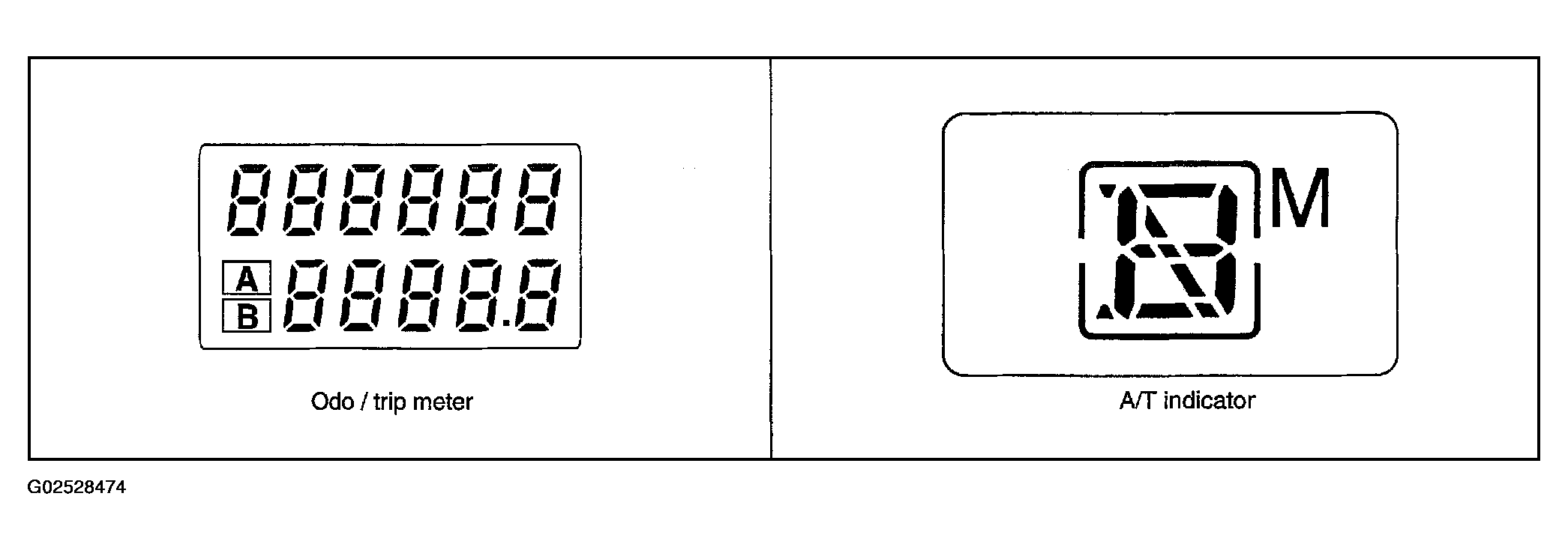

Fig 1: Identifying ODO/Trip Meter And A/T Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the display normal?

1. YES: GO TO 4.
2. NO: Replace combination meter.

During fuel warning lamp check, confirm illumination of fuel warning lamp.

OK or NG

1. OK: GO TO 5.
2. NG: Replace combination meter.

Check indication of each meter/gauge in self-diagnosis mode.

OK or NG

1. OK: Go to diagnosis results. Refer to DIAGNOSIS RESULTS  .
2. NG: Replace combination meter.

Fig 2: ODO/Trip Meter Condition Check Table

Courtesy of NISSAN MOTOR CO., U.S.A.
