Wiring Diagram - CLOCK -

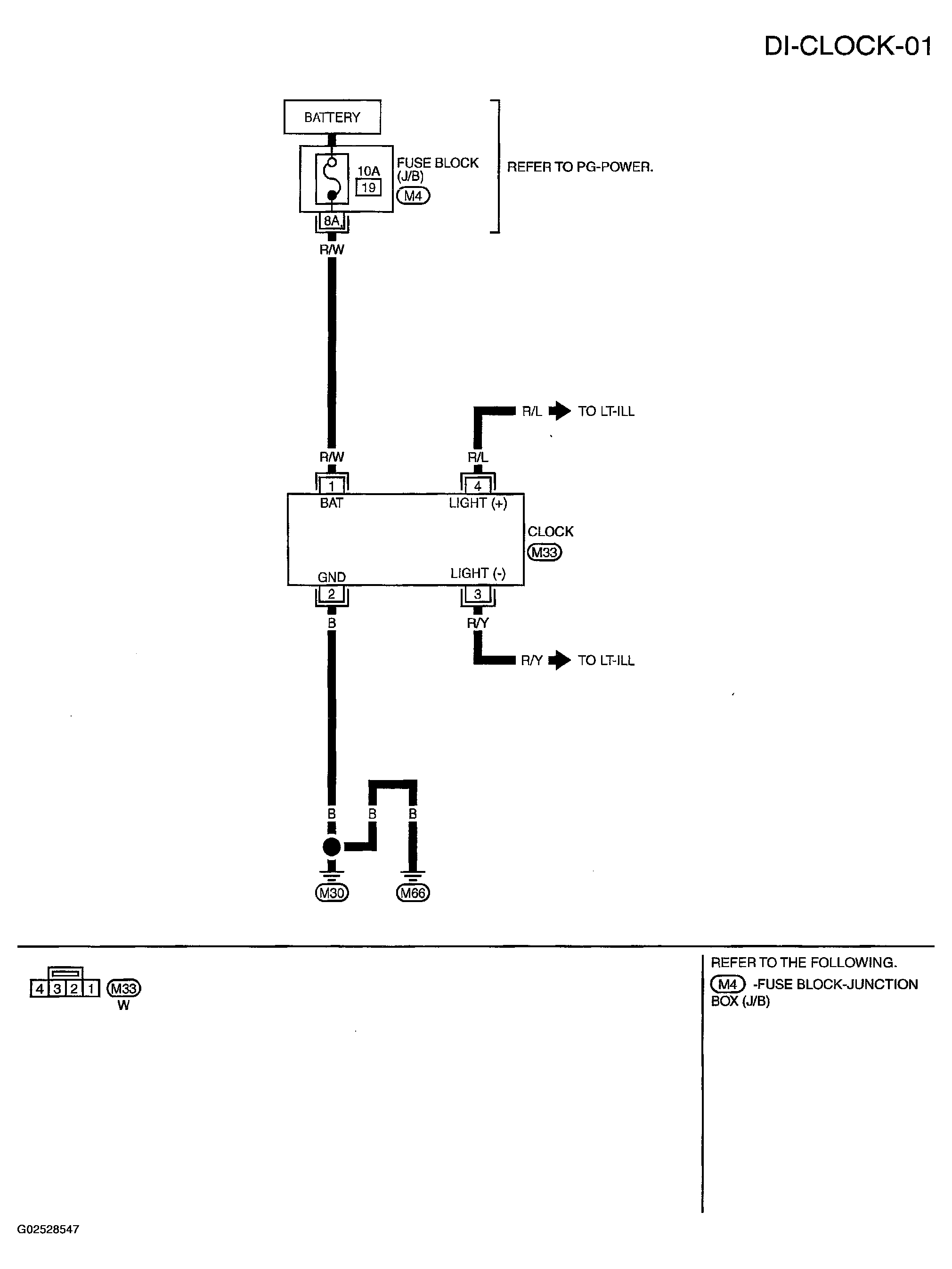

Fig 1: Wiring Diagram - DI-CLOCK-01

G02528547

Courtesy of NISSAN MOTOR CO., U.S.A.
