Wiring Diagram - TURN -

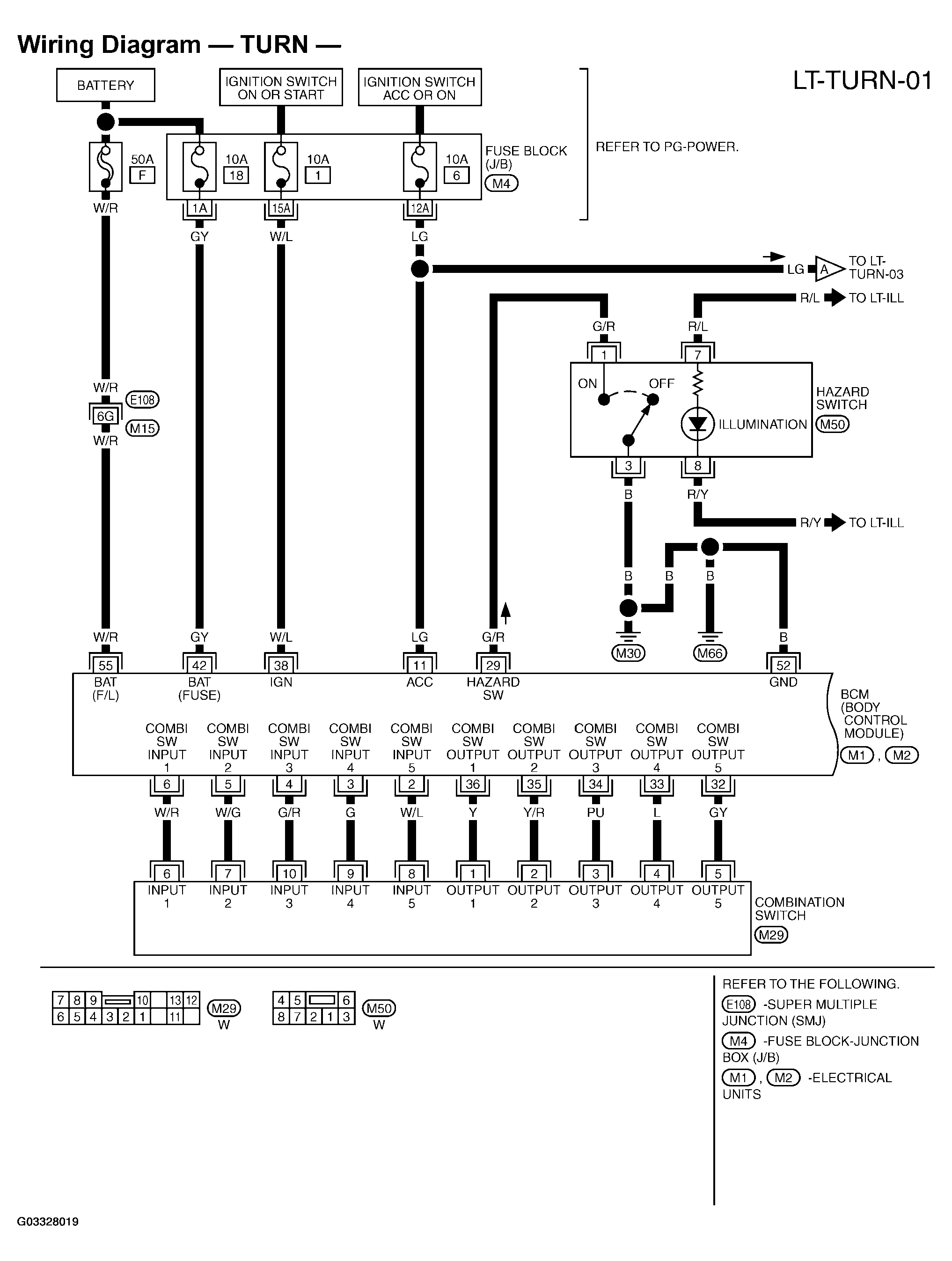

Fig 1: Wiring Diagram - LT-TURN-01
G03328019Courtesy of NISSAN MOTOR CO., U.S.A.

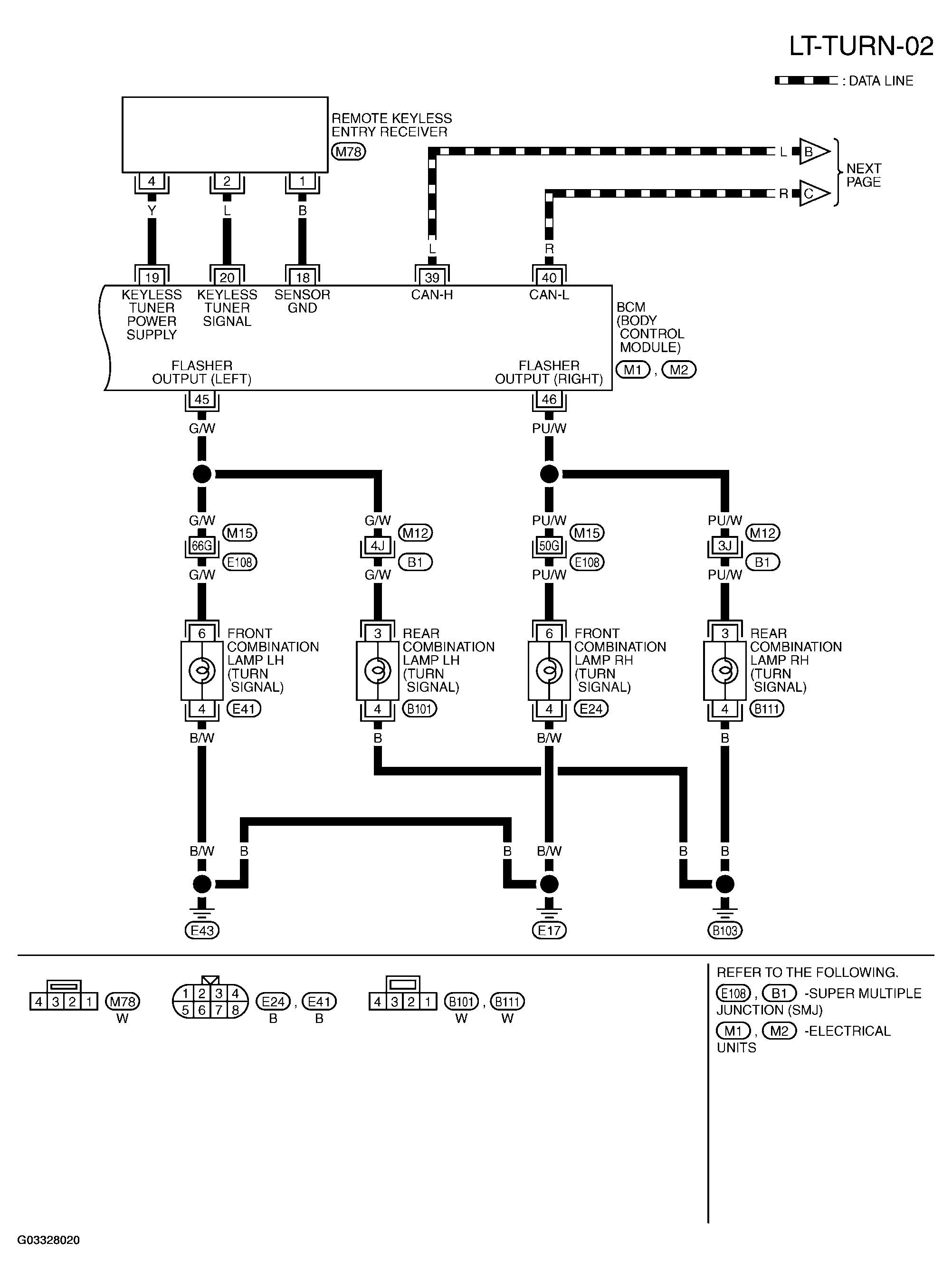

Fig 2: Wiring Diagram - LT-TURN-02
G03328020Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Wiring Diagram - LT-TURN-02
G03328021Courtesy of NISSAN MOTOR CO., U.S.A.
