Turn Signal And Hazard Warning Lamps: Schematic

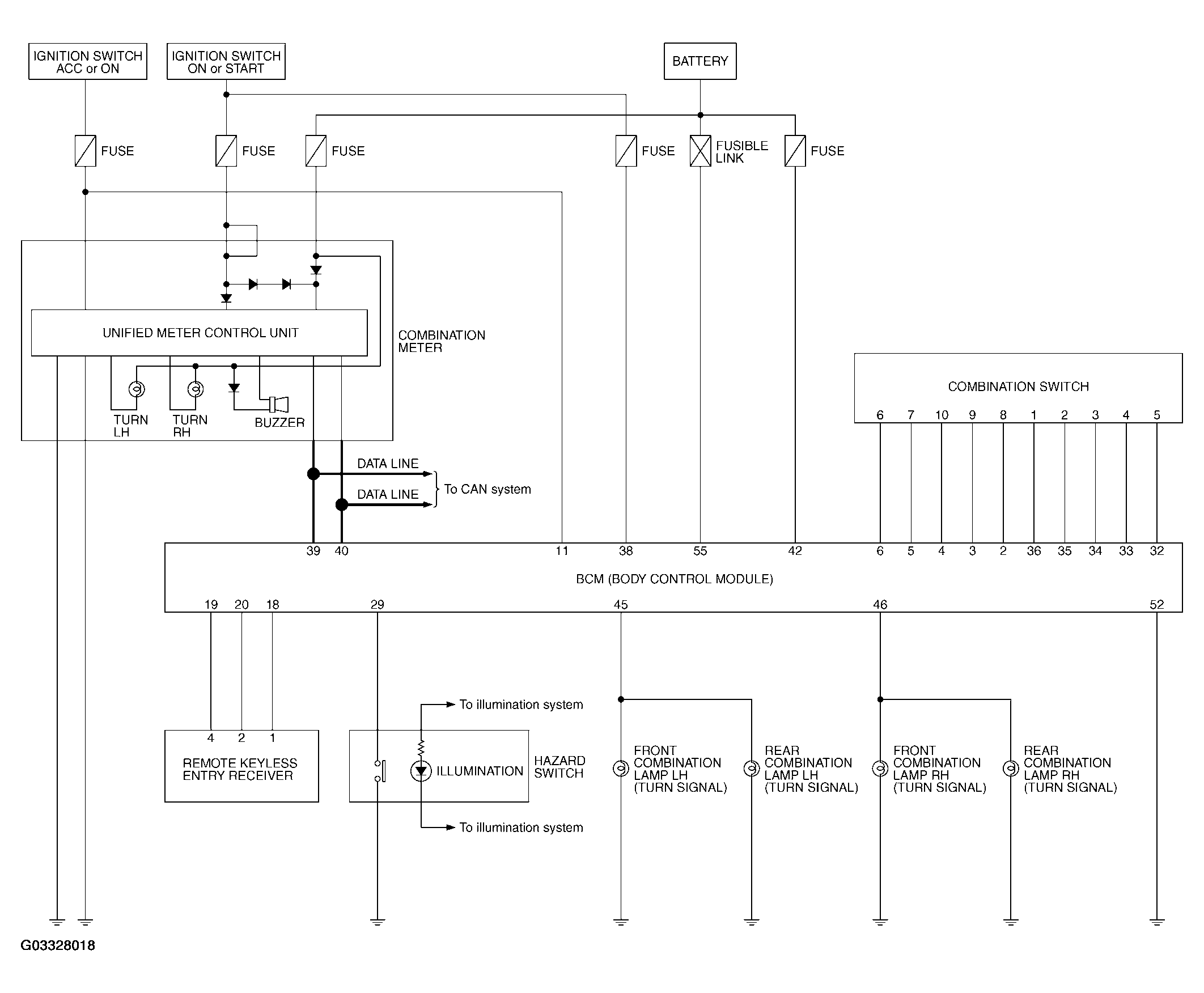

Fig 1: Identifying Turn Signal And Hazard Warning Lamp Schematic

G03328018

Courtesy of NISSAN MOTOR CO., U.S.A.
