Consult-II Basic Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying Consult II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

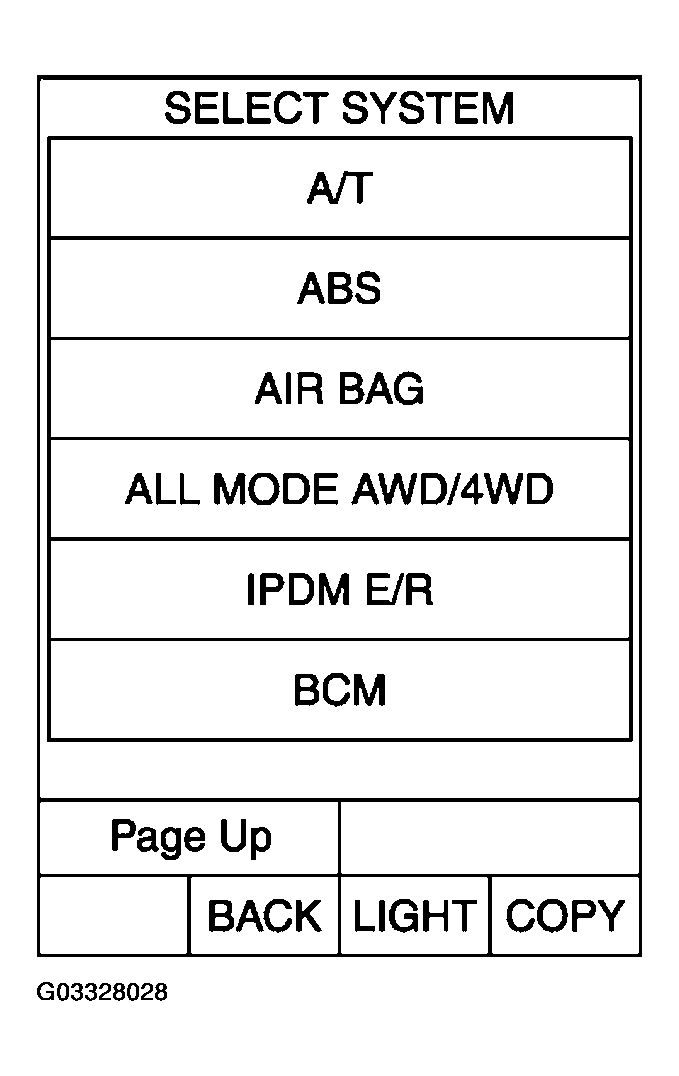

Fig 3: Displaying "BCM" on "SELECT SYSTEM" screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.

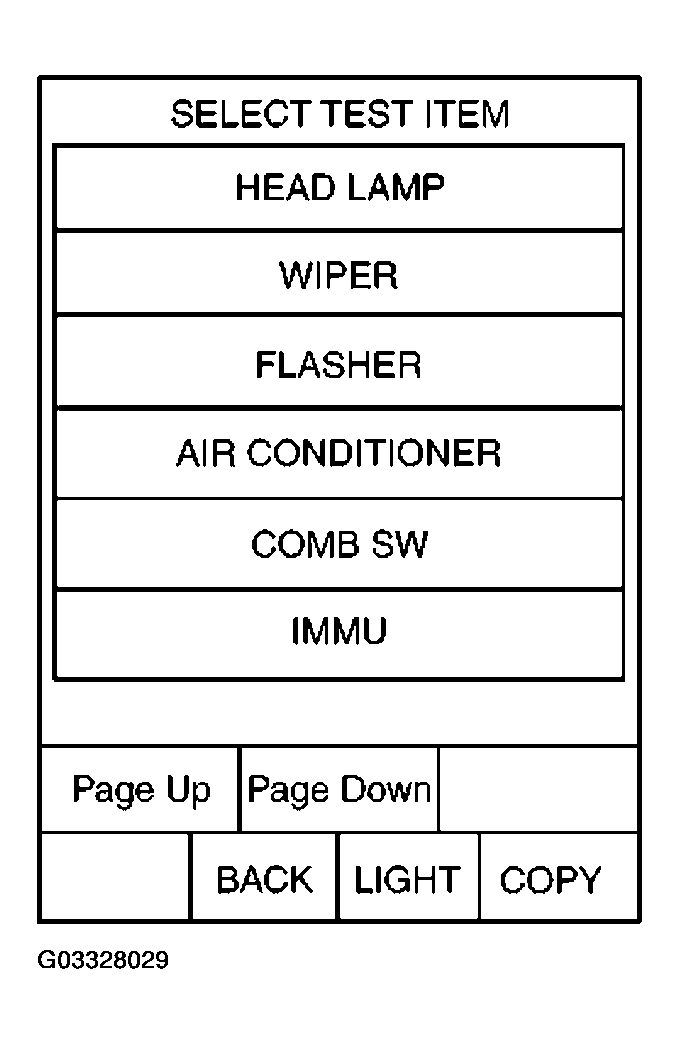

Fig 4: Displaying "HEAD LAMP" on "SELECT TEST ITEM" screen
Courtesy of NISSAN MOTOR CO., U.S.A.
