Terminals And Reference Values For BCM

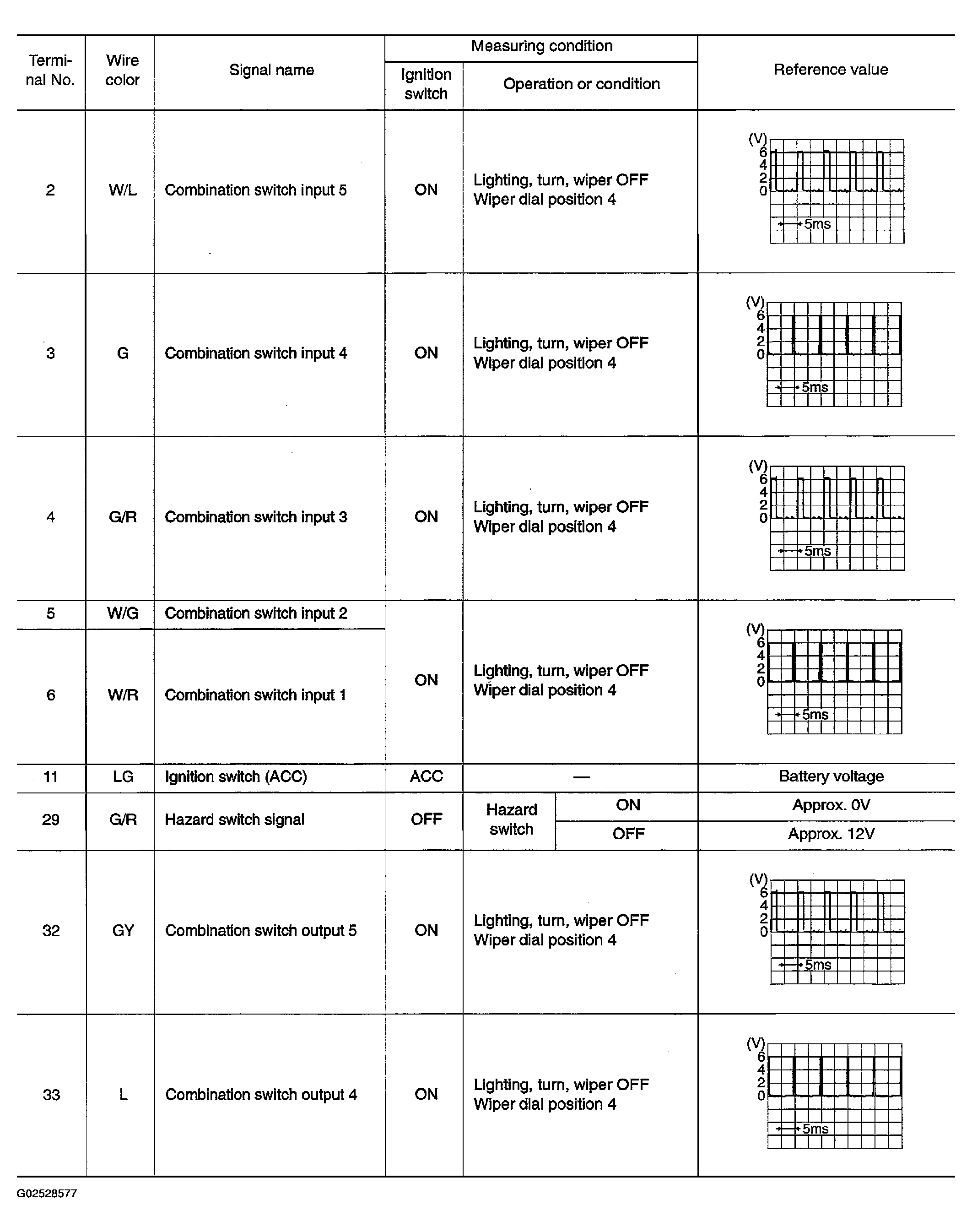

Fig 1: Reference Values For BCM And Terminals (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

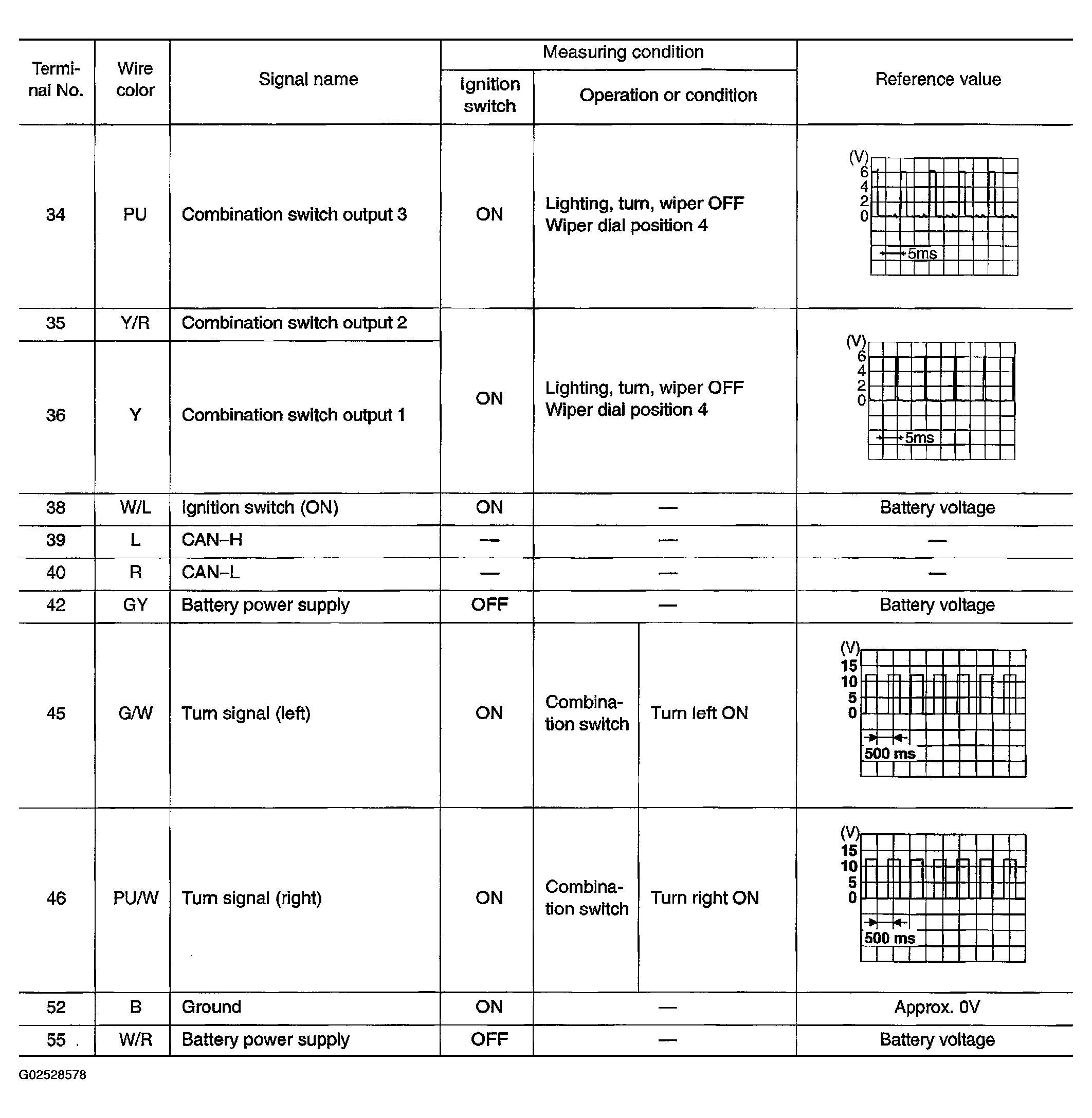

Fig 2: Reference Values For BCM And Terminals (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
