Terminals and Reference Values for IPDM E/R

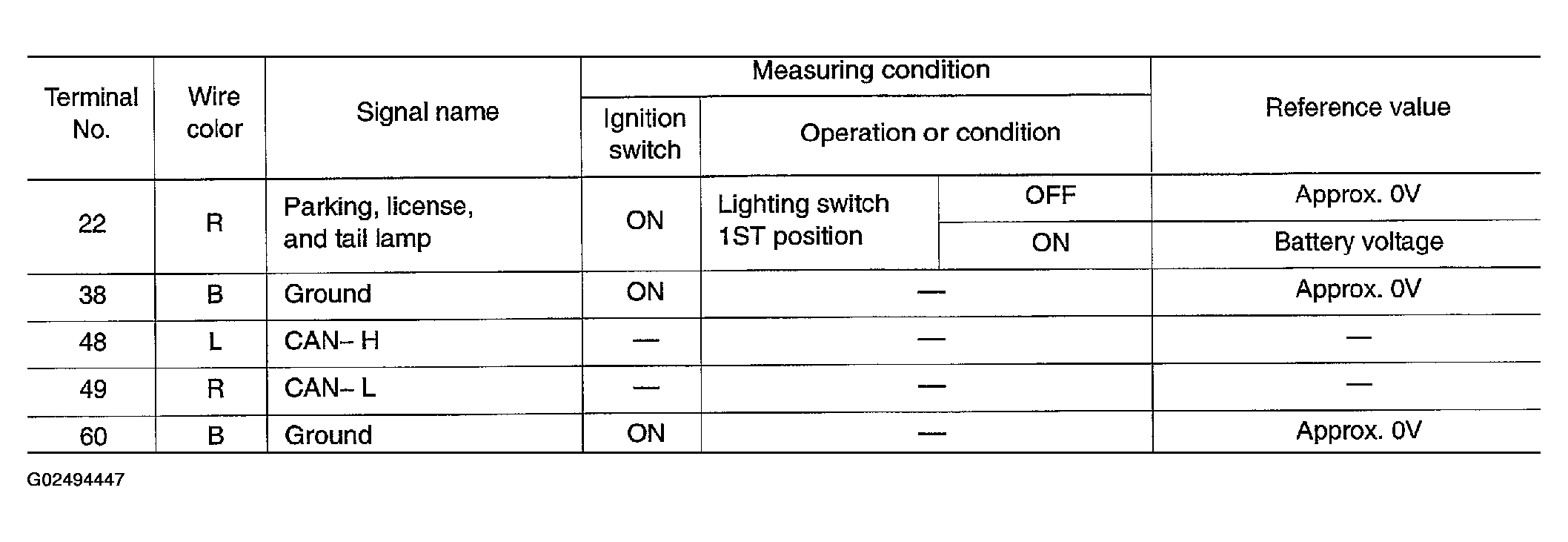

Fig 1: IPDM E/R Terminal Specifications

G02494447

Courtesy of NISSAN MOTOR CO., U.S.A.
