Washer Nozzle Adjustment

  1. When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms do not move.
  2. Adjust each nozzle position (A, B, E, G, H, and K) so that spray positions are in the range of shaded parts.
    NOTE: Only washer nozzles (A, B, E, G, H, and K) can be adjusted. Washer nozzles (C, D, F, I, J, and L) cannot be adjusted because of fixed nozzles.

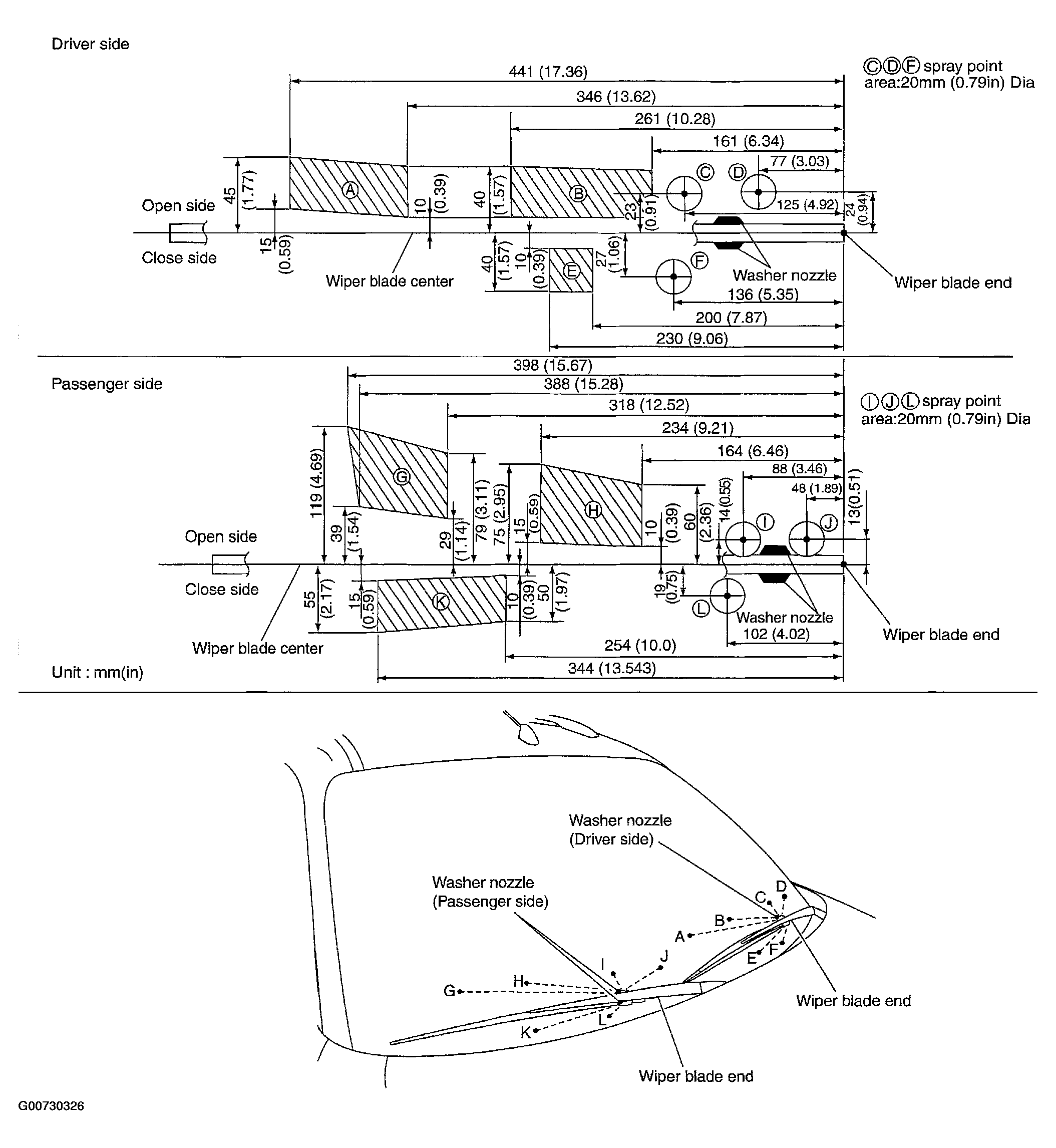

Fig 1: Identifying Washer Nozzle Spray Pattern Adjustment Specifications
G00730326Courtesy of NISSAN MOTOR CO., U.S.A.

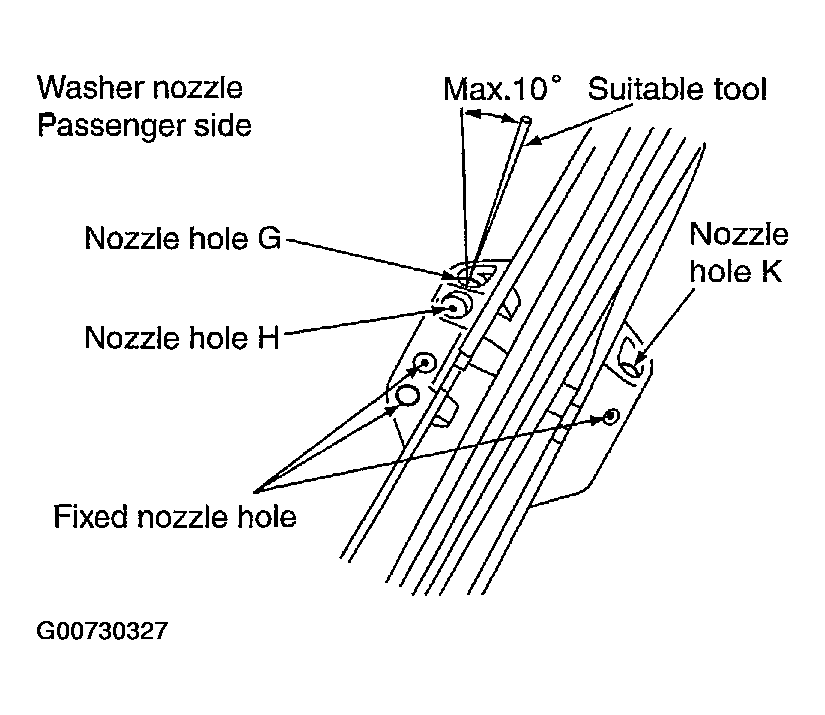

Fig 2: Identifying & Adjusting Washer Nozzles
G00730327Courtesy of NISSAN MOTOR CO., U.S.A.
