Removal And Installation Of Washer Tank: Removal

  1. Remove bolt and pull out washer tank inlet.

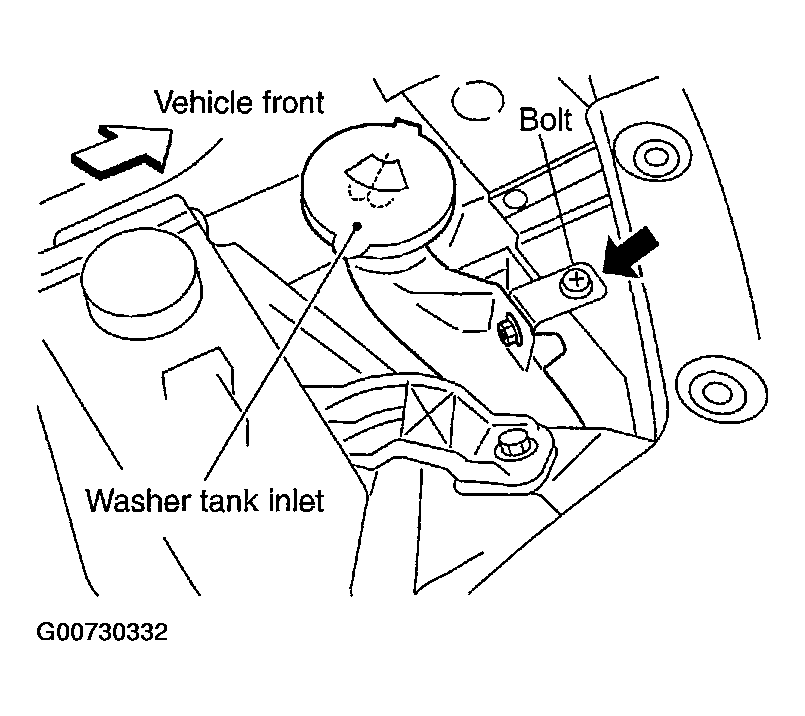

    Fig 1: Locating Washer Tank Inlet
    G00730332Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove fillet molding (RH) and fender protector (RH). Refer to REMOVAL AND INSTALLATION .
  3. Remove bumer fascia assembly. Refer to REMOVAL AND INSTALLATION .
  4. Disconnect washer pump connector and wash fluid level sensor connector.
  5. Remove washer tank mounting screw and nuts.

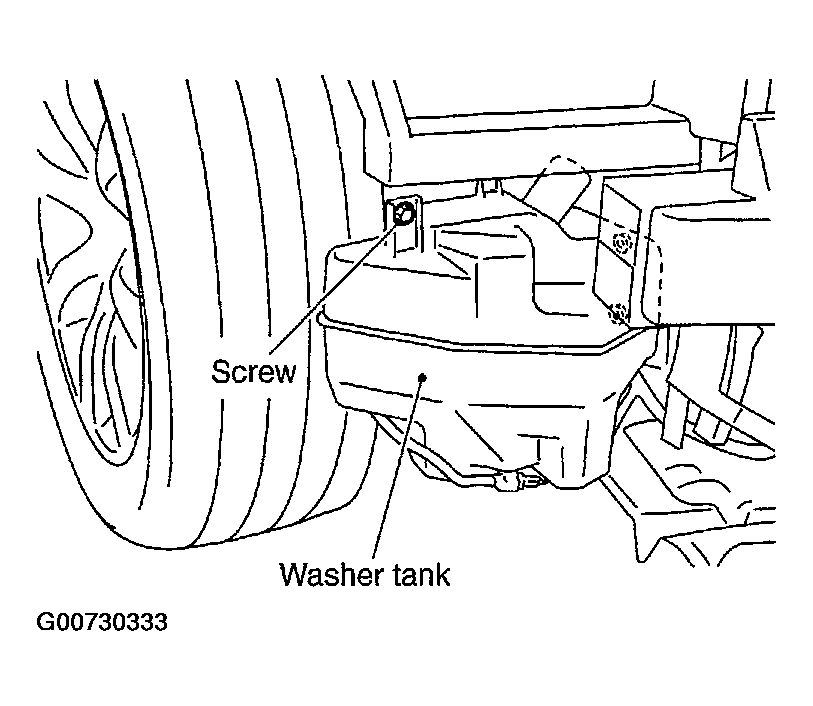

    Fig 2: Locating Washer Tank & Screws
    G00730333Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove washer tube, and remove washer tank from the vehicle.

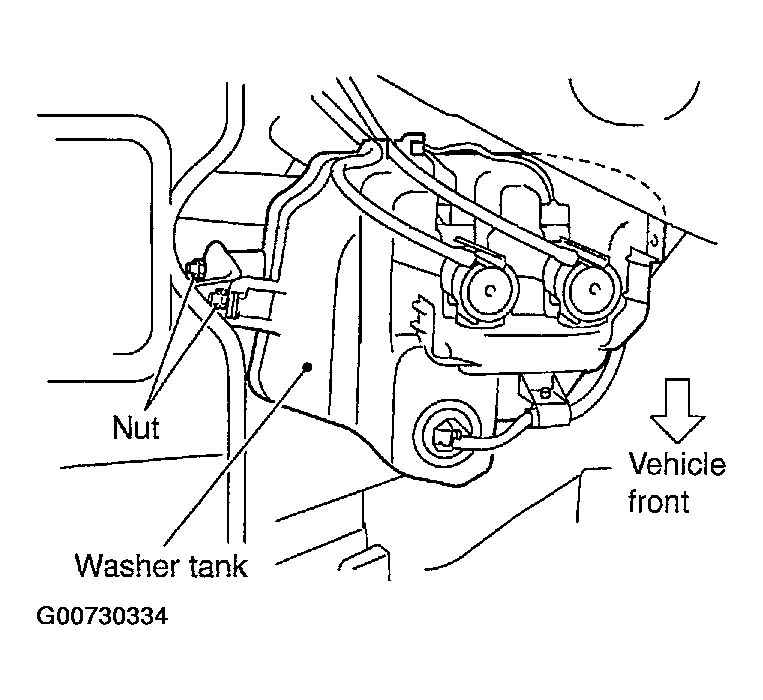

    Fig 3: Removing Washer Tank
    G00730334Courtesy of NISSAN MOTOR CO., U.S.A.
