Front Wipers Do Not Stop

Check Circuit Between Combination Switch And BCM
1. With CONSULT-II
  Select "BCM" on CONSULT-II. With "WIPER" on "DATA MONITOR", confirm that "FRONT WIPER INT", "FRONT WIPER LOW", "FRONT WIPER HI", and "FRONT WASHER SW" turn ON-OFF according to wiper switch operation.
2. Without CONSULT-II
  Refer to COMBINATION SWITCH INSPECTION .
OK or NG
1. OK: Replace IPDM E/R.
2. NG: Check wiper Switch. Refer to COMBINATION SWITCH INSPECTION .

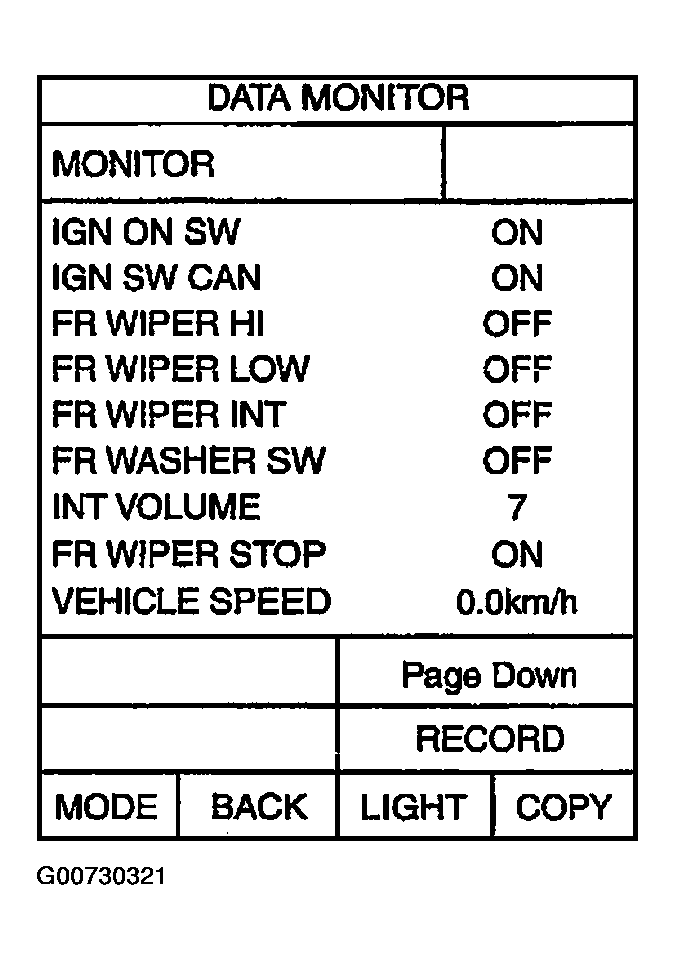

Fig 1: Displaying Wiper Information On Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
