Removal And Installation Of Cigarette Lighter: Removal

Remove A/T console finisher. Refer to REMOVAL .
Remove instrument ashtray and hazard switch. Refer to A/T CONSOLE FINISHER .
Pull out the cigarette lighter.

Fig 1: Removing A/T Console Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
Use a screwdriver to undo ashtray finisher hooks.
Remove screws and remove socket.

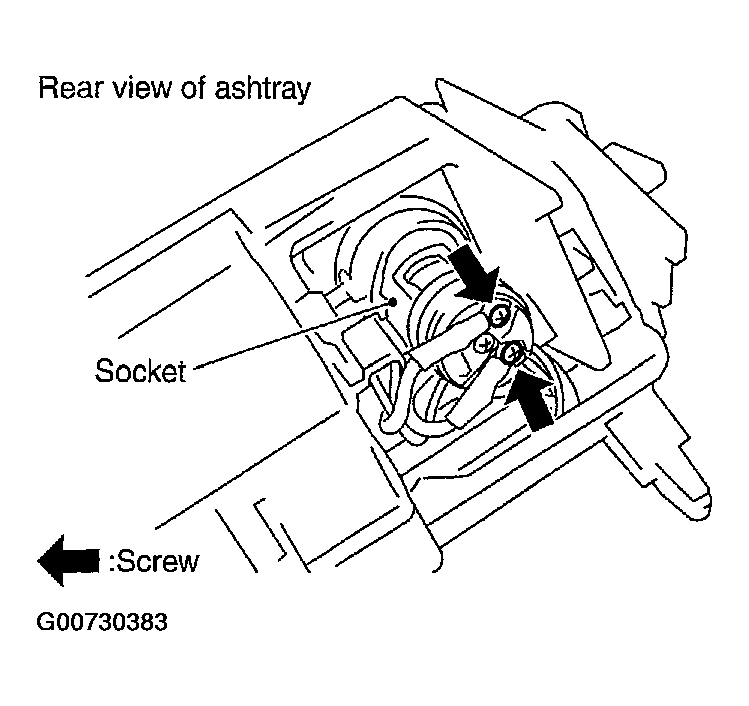

Fig 2: Removing Ashtray Screws & Sockets
Courtesy of NISSAN MOTOR CO., U.S.A.
