Bulb Replacement

  1. Remove lens using clip driver or suitable tool.
  2. Remove bulb.

    Map lamp: 12V-8W

  3. Install in the reverse order of removal.

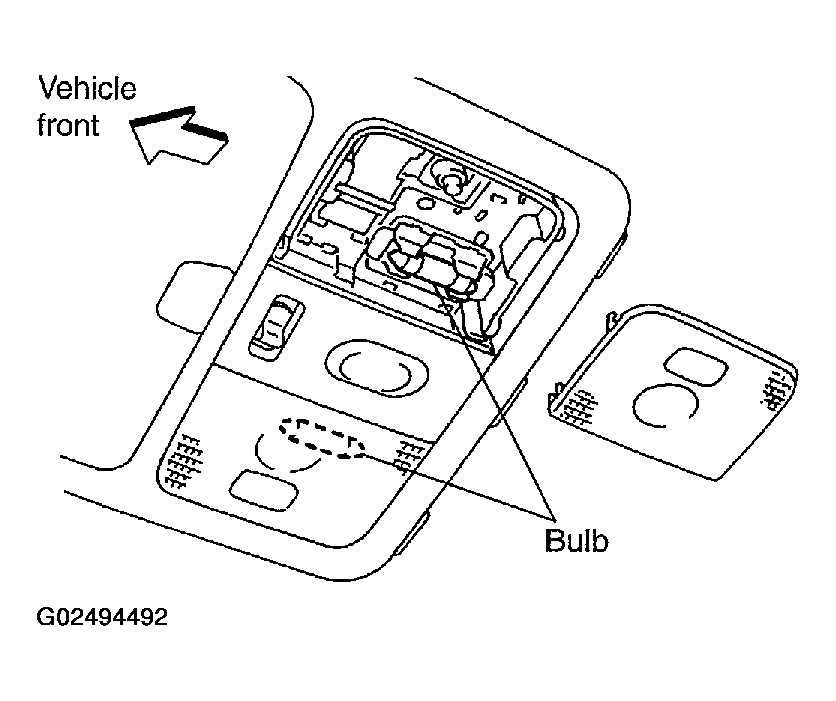

    Fig 1: Removing Map Lamp Bulb
    G02494492Courtesy of NISSAN MOTOR CO., U.S.A.
