Wiring Diagram - AT/IND -

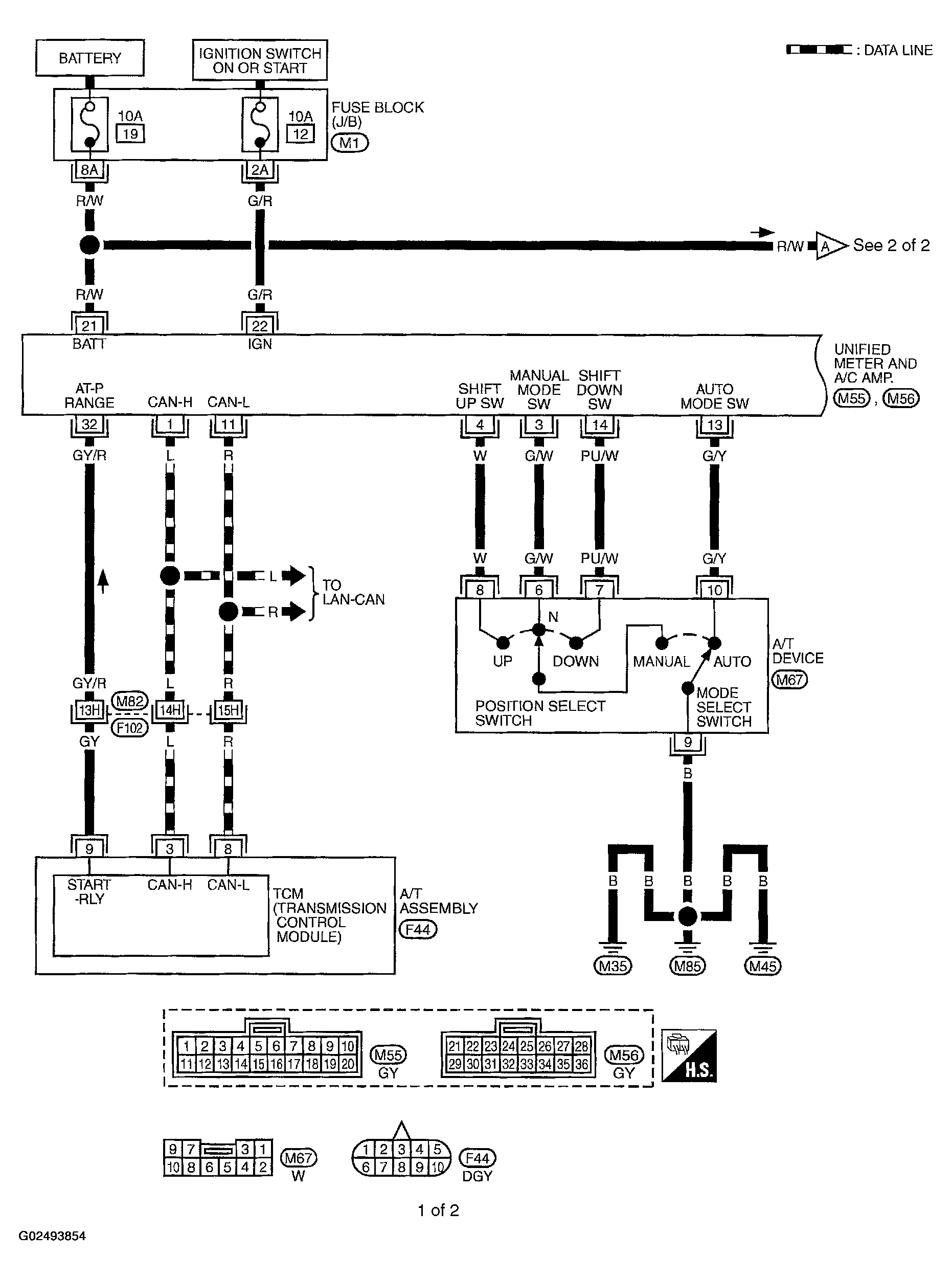

Fig 1: A/T Indicator Circuit (1 Of 2) - A/T-IND-01

G02493854

Courtesy of NISSAN MOTOR CO., U.S.A.

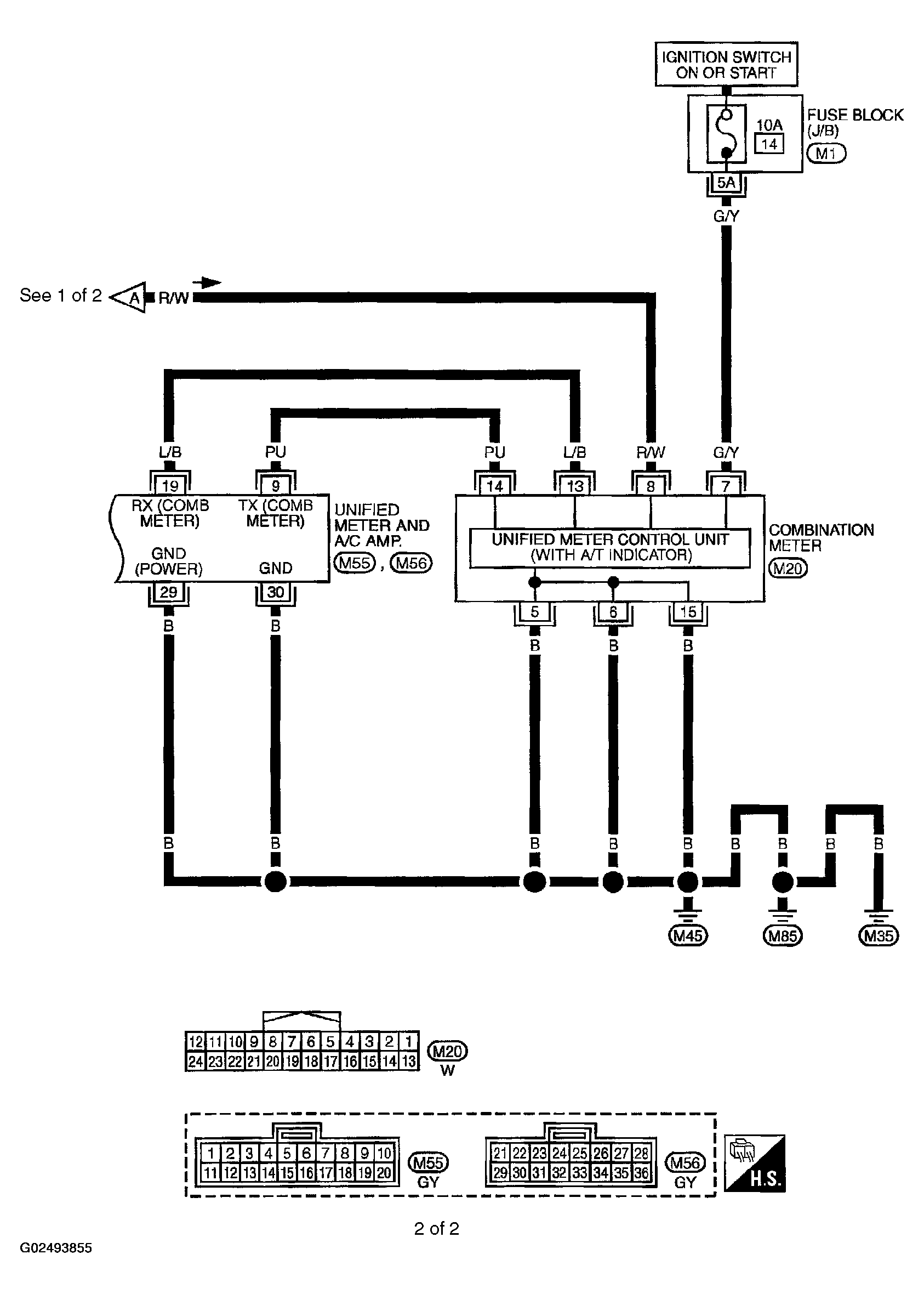

Fig 2: A/T Indicator Circuit (2 Of 2) - A/T-IND-02

G02493855

Courtesy of NISSAN MOTOR CO., U.S.A.
