Removal And Installation Of Rear Combination Lamp Control Unit: Removal

  1. Remove luggage side finisher assembly (left). Refer to REMOVAL AND INSTALLATION .
  2. Remove nuts (2), and remove rear combination lamp control unit.

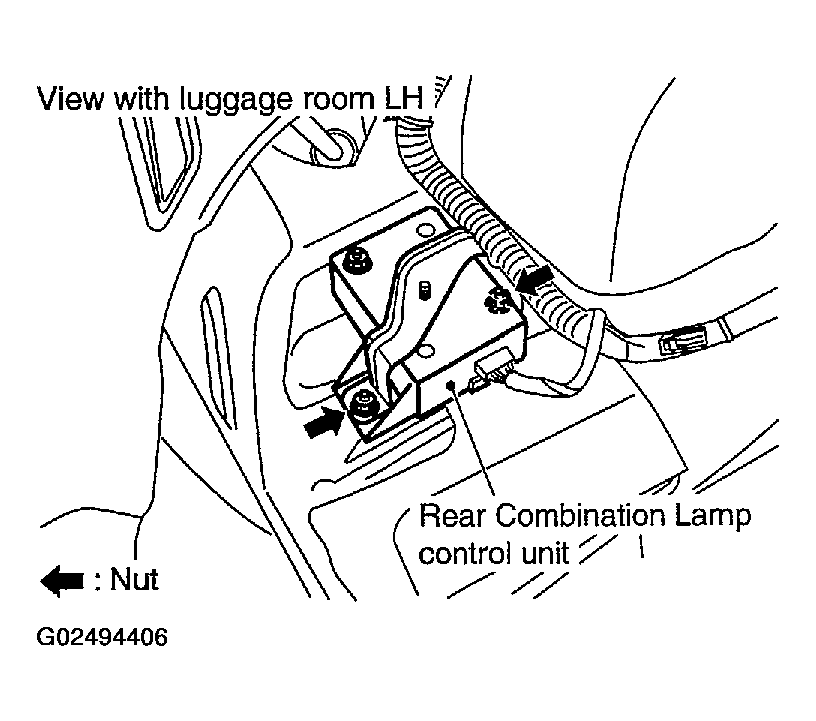

    Fig 1: Locating Rear Combination Lamp Control Unit
    G02494406Courtesy of NISSAN MOTOR CO., U.S.A.
