Parking, License Plate and Tail Lamps Do Not Illuminate

  1. Check Combination Switch Input Signal

    With CONSULT-II

    Select BCM on CONSULT-II. With HEAD LAMP data monitor, make sure LIGHT SW 1 ST turns ON-OFF linked with operation of lighting switch.

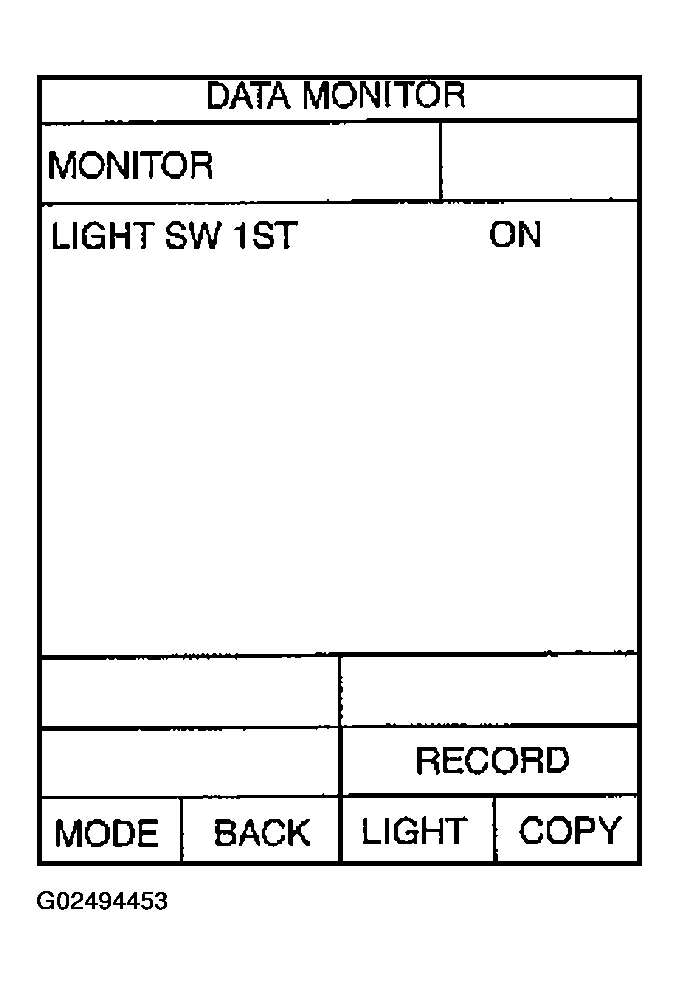

    Fig 1: Monitoring Light Switch Status With CONSULT-II
    G02494453Courtesy of NISSAN MOTOR CO., U.S.A.

    When lighting switch is 1ST: LIGHT SW 1 ST ON position

    Without CONSULT-II

    Refer to COMBINATION SWITCH INSPECTION .

    OK or NG

    1. OK: Go to 2.
    2. NG: Check lighting switch. Refer to COMBINATION SWITCH INSPECTION .

  2. Active Test

    With CONSULT-II

    1. Select IPDM E/R on CONSULT-II. and select ACTIVE TEST on SELECT DIAG MODE screen.
    2. Select TAIL LAMP on SELECT TEST ITEM screen.

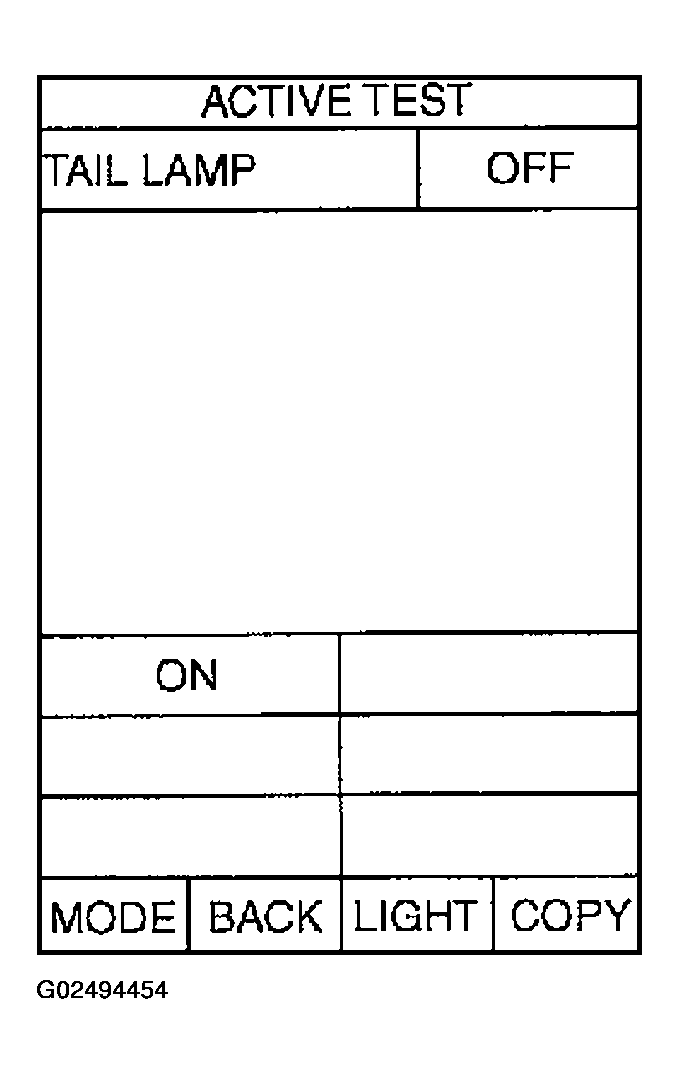

      Fig 2: Testing Tail Lamp With CONSULT-II
      G02494454Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Touch ON screen.
    4. Make sure parking, license plate, side marker and tail lamp operation.

      Parking, license plate, side marker and tail lamp should operate  .

    Without CONSULT-II

    1. Start auto active test.
    2. Make sure parking, license plate, side marker and tail lamp operation.

      Parking, license plate, side marker and tail lamp should operate  .

    OK or NG

    1. OK: Go to 3.
    2. NG: Go to  4.

  3. Check IPDM E/R
    1. Select IPDM E/R on CONSULT-II. and select DATA MONITOR on SELECT DIAG MODE screen.

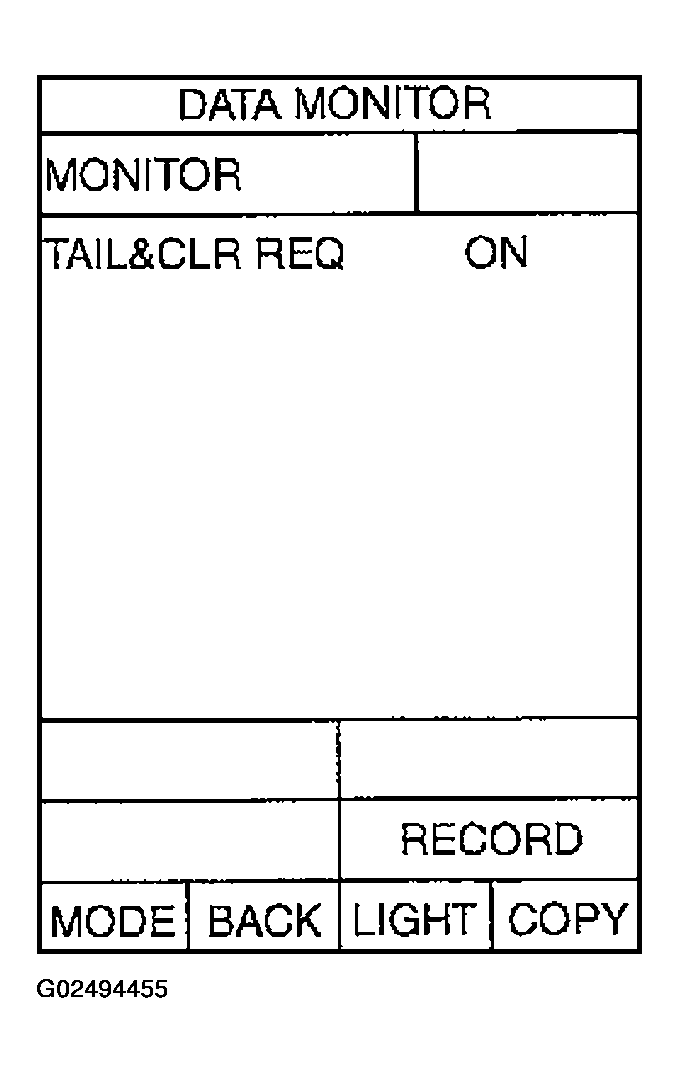

      Fig 3: Monitoring Switch Positions With CONSULT-II
      G02494455Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Make sure TAIL & CLR REQ turns ON when lighting switch is in 1 ST position.

      When lighting switch is 1st position: TAIL & CLR REQ ON  .

    OK or NG

    1. OK: Replace IPDM E/R.
    2. NG: Replace BCM . See REMOVAL AND INSTALLATION OF BCM .

  4. Check Input Signal

    With CONSULT-II

    1. Turn ignition switch OFF.
    2. Disconnect front side marker, clearance lamp, license plate lamp and rear combination lamp connectors.
    3. Select IPDM E/R on CONSULT-II. and select ACTIVE TEST on SELECT DIAG MODE screen.
    4. Select TAIL LAMP on SELECT TEST ITEM screen.
    5. Touch ON screen.
    6. When tail lamp is operating, check voltage between front side marker lamp, clearance lamp, license plate lamp, rear combination lamp harness connector and ground.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Disconnect front combination lamp RH and LH connector.
    3. Start auto active test.
    4. When tail lamp is operating, check voltage between front side marker lamp, clearance lamp, license plate lamp, rear combination lamp harness connector and ground.

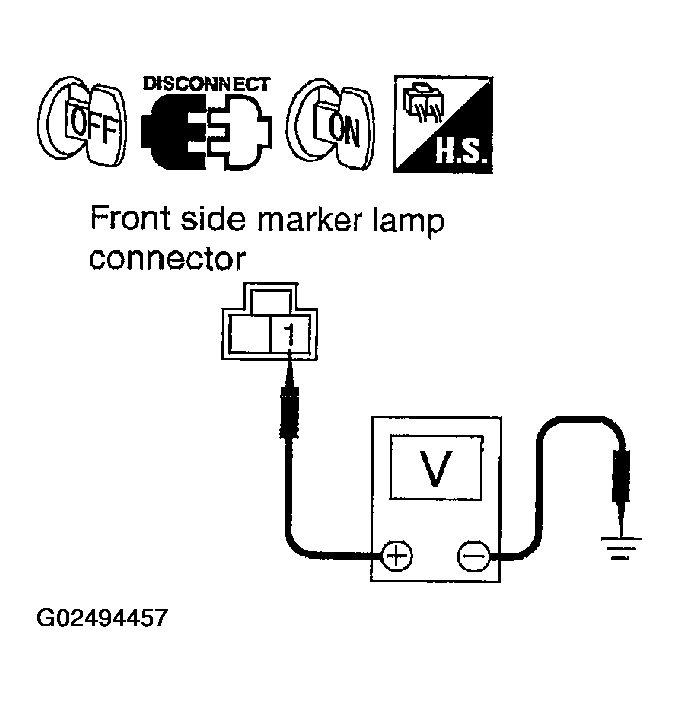

      Fig 4: Testing Power To Front Side Marker Lamp
      G02494457Courtesy of NISSAN MOTOR CO., U.S.A.

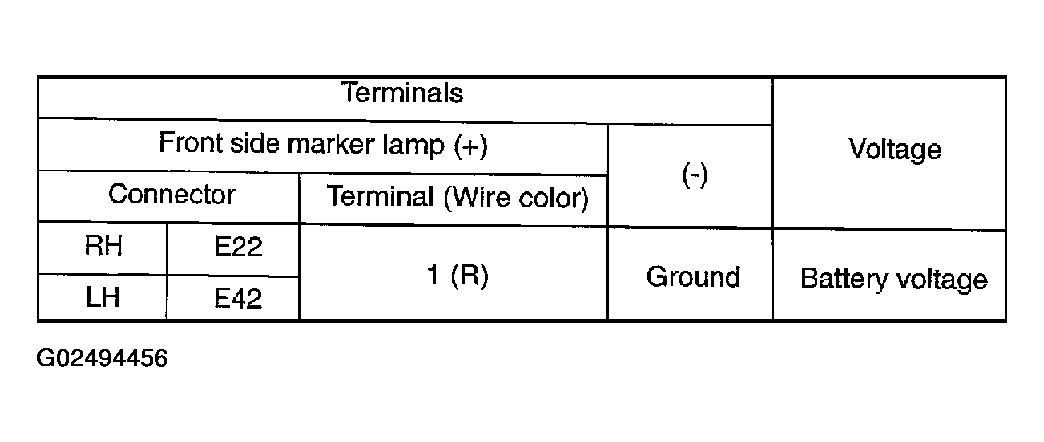

      Fig 5: Connector E22 & E42 Specifications
      G02494456Courtesy of NISSAN MOTOR CO., U.S.A.

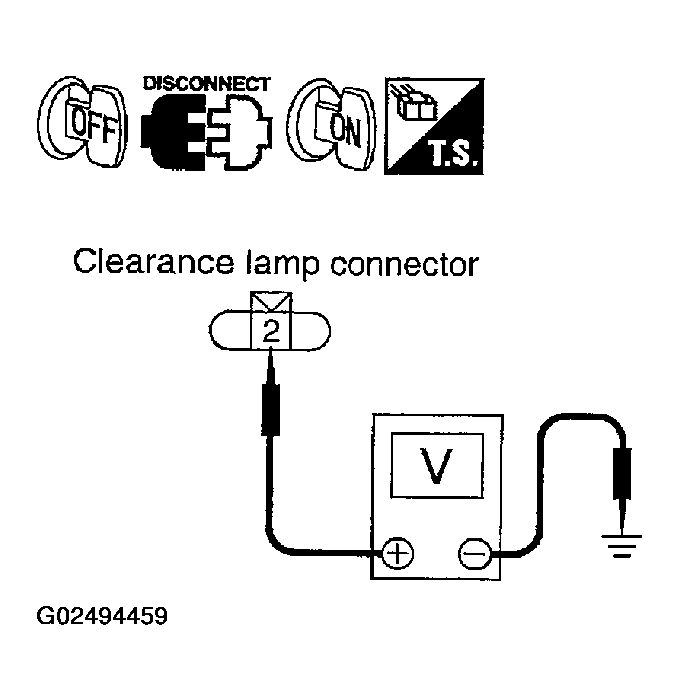

      Fig 6: Testing Power To Clearance Lamp
      G02494459Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 7: Connector E23 & E43 Specifications
      G02494458Courtesy of NISSAN MOTOR CO., U.S.A.

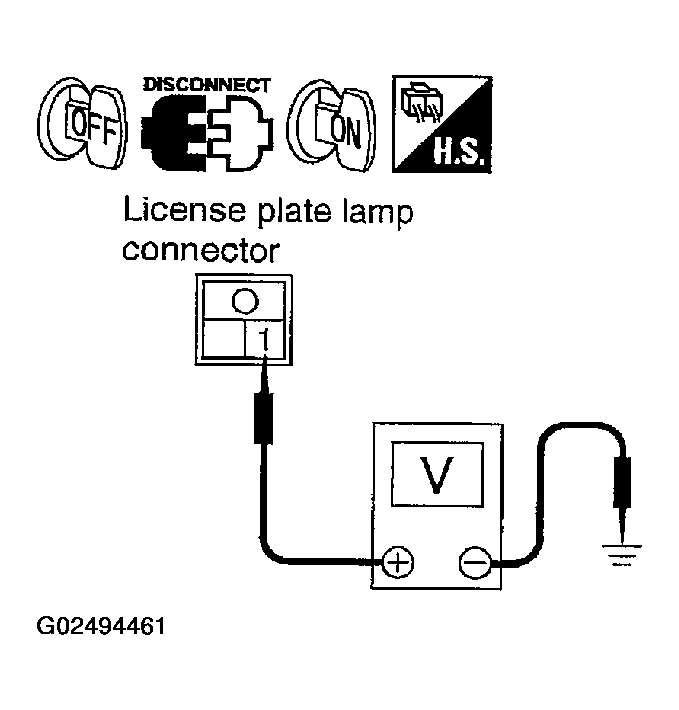

      Fig 8: Testing Power To License Plate Lamp
      G02494461Courtesy of NISSAN MOTOR CO., U.S.A.

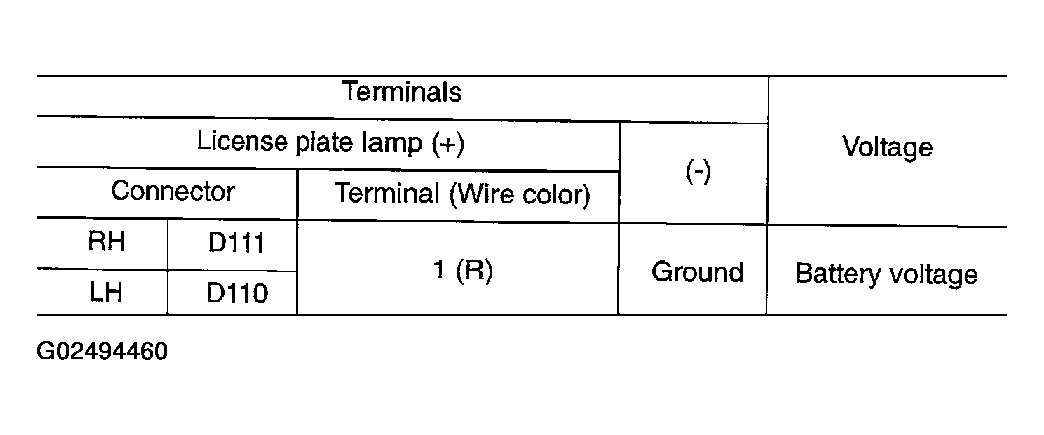

      Fig 9: Connector D110 & D111 Specifications
      G02494460Courtesy of NISSAN MOTOR CO., U.S.A.

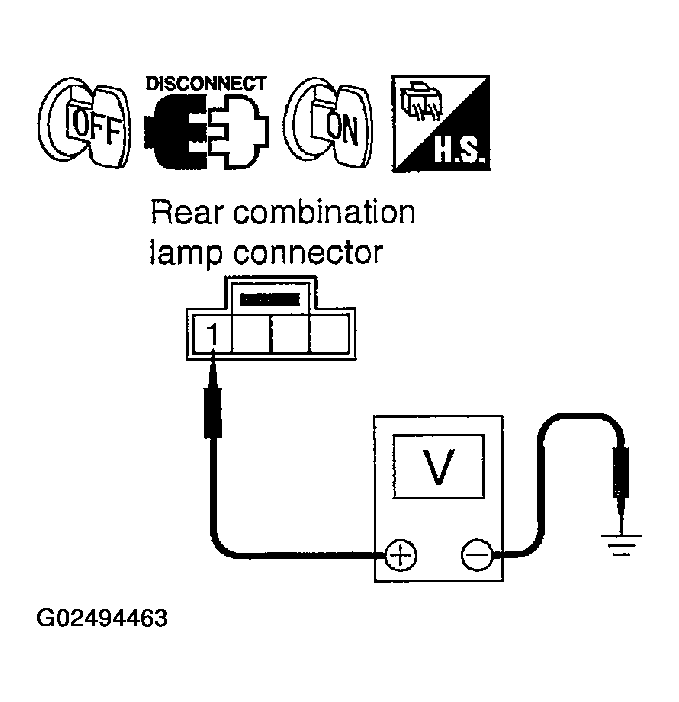

      Fig 10: Testing Power To Rear Combination Lamp
      G02494463Courtesy of NISSAN MOTOR CO., U.S.A.

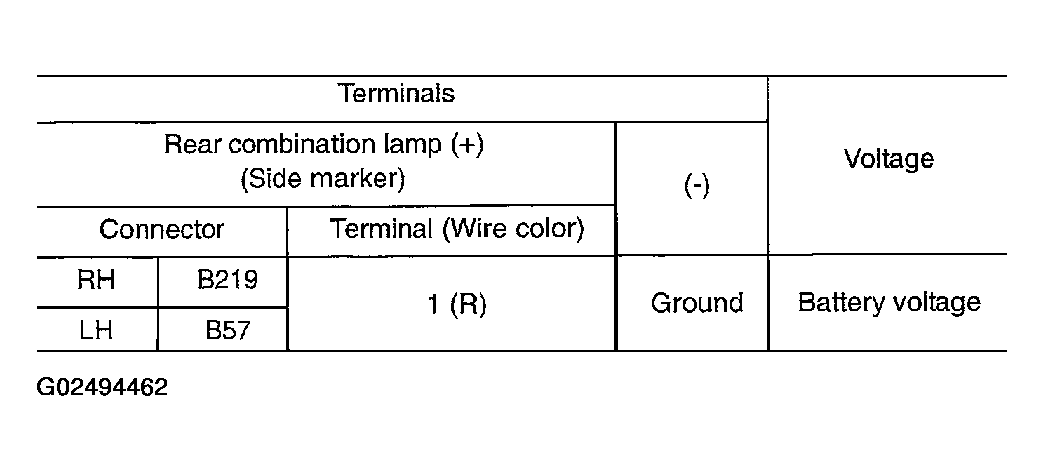

      Fig 11: Connector B219 & B57 Specifications
      G02494462Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Go to  6.
    2. NG: Go to 5.

  5. Check Parking, License Plate, Side Marker And Tail Lamp Circuit
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R connector.
    3. Check continuity between IPDM E/R harness connector and front side marker lamp harness connector.

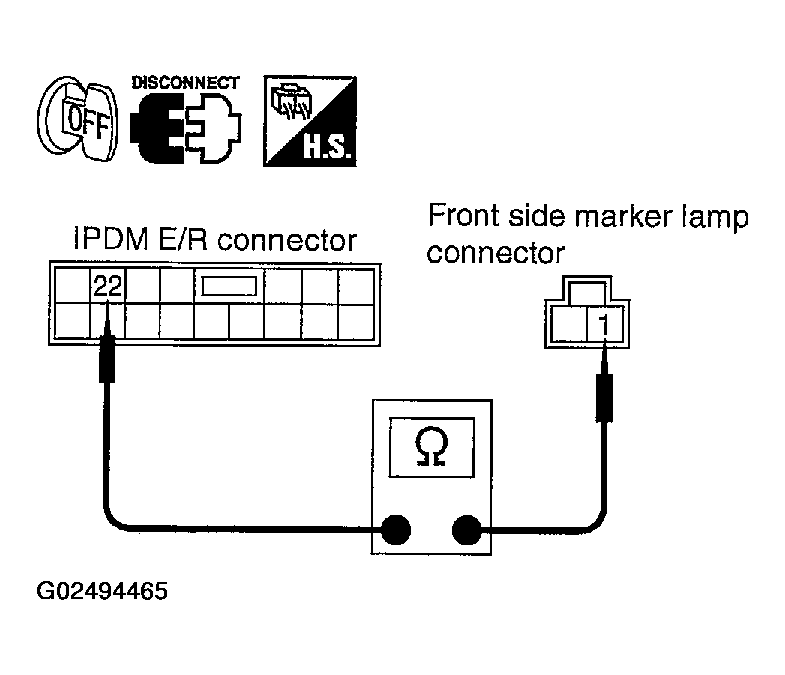

      Fig 12: Testing Wire Harness IPDM E/R To Front Side Marker Lamps
      G02494465Courtesy of NISSAN MOTOR CO., U.S.A.

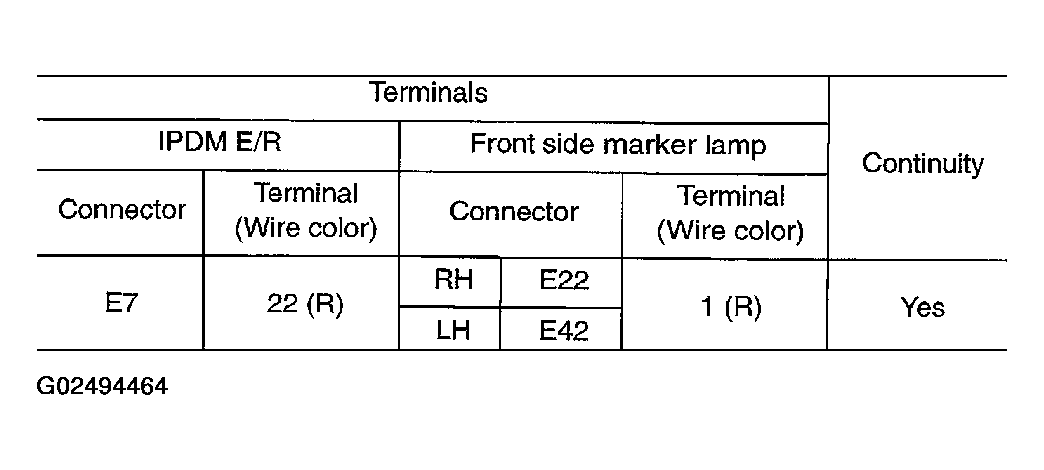

      Fig 13: Connector E22 & E42 Terminal 1 Specifications
      G02494464Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between IPDM E/R harness connector and clearance lamp harness connector.

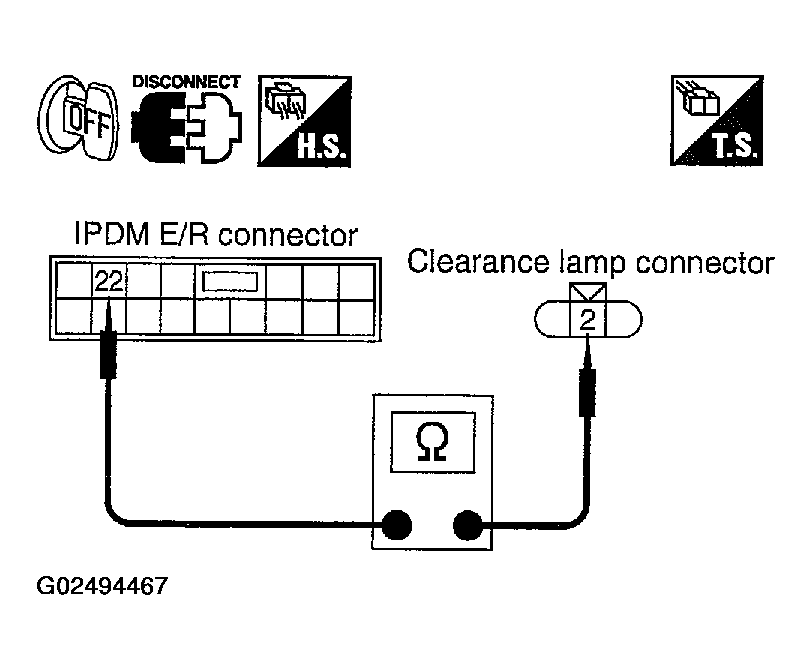

      Fig 14: Testing Wire Harness IPDM E/R To Clearance Lamps
      G02494467Courtesy of NISSAN MOTOR CO., U.S.A.

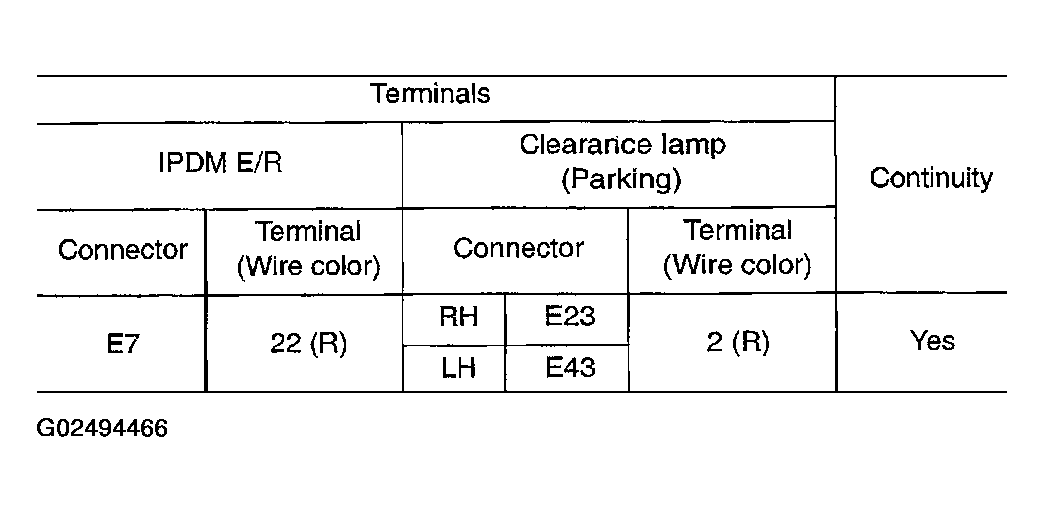

      Fig 15: Connector E23 & E43 Terminal 2 Specifications
      G02494466Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.

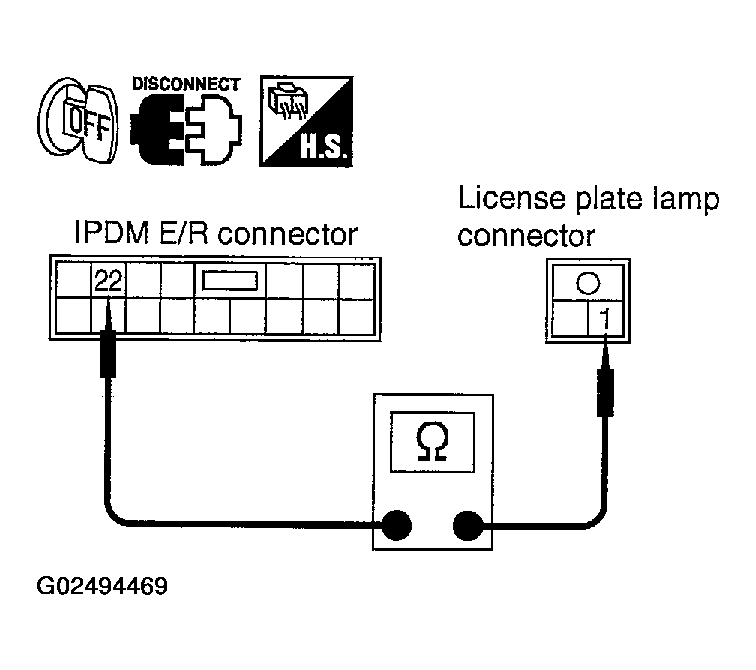

      Fig 16: Testing Wire Harness IPDM E/R To License Plate Lamps
      G02494469Courtesy of NISSAN MOTOR CO., U.S.A.

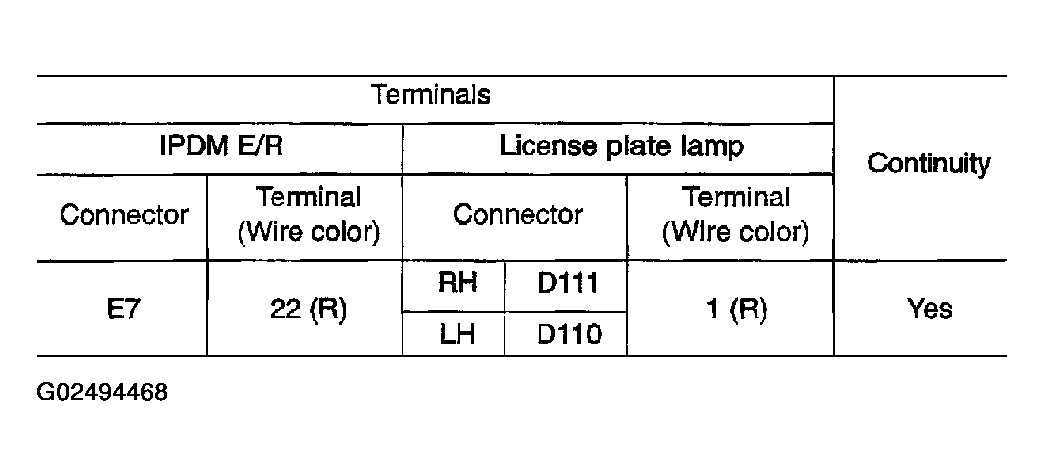

      Fig 17: Connector D110 & D111 Terminal 1 Specifications
      G02494468Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.

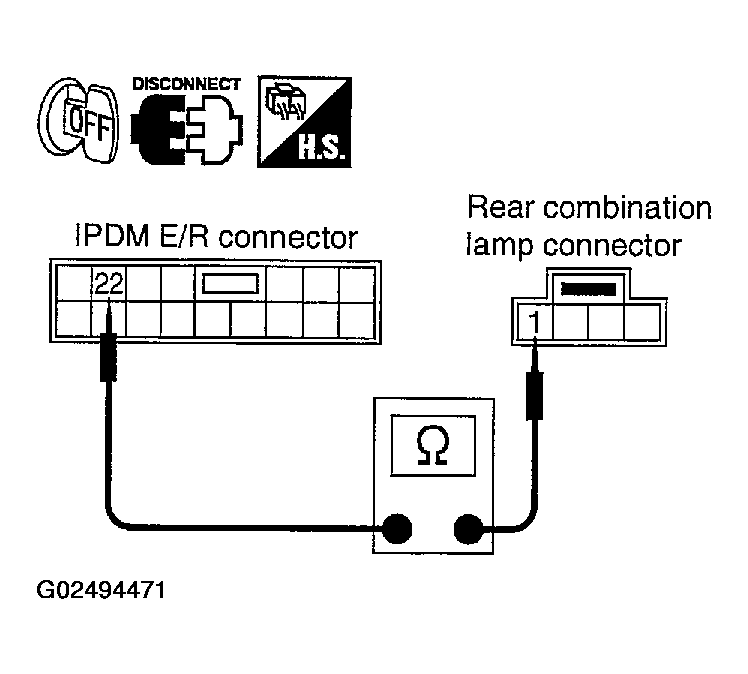

      Fig 18: Testing Wire Harness IPDM E/R To Rear Combination Lamps
      G02494471Courtesy of NISSAN MOTOR CO., U.S.A.

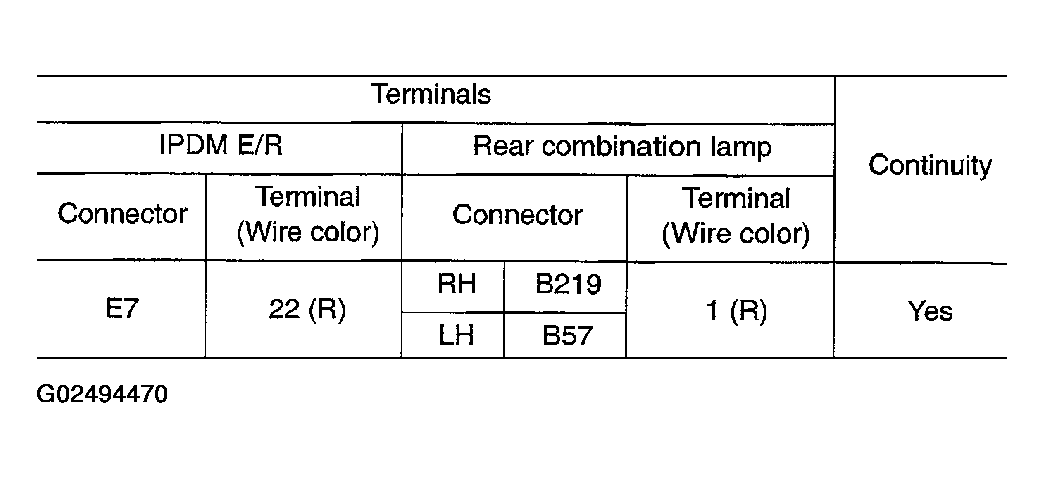

      Fig 19: Connector B219 & B57 Terminal 1 Specifications
      G02494470Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace IPDM E/R.
    2. NG: Repair harness or connector.

  6. check ground
    1. Turn ignition switch OFF.
    2. Check continuity between front side maker lamp harness connector and ground.

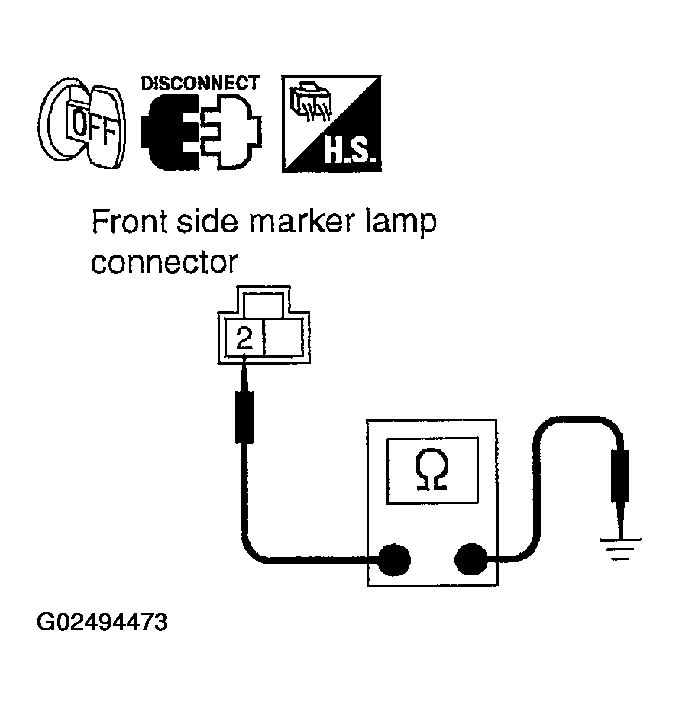

      Fig 20: Testing Front Side Maker Lamp Ground Circuit
      G02494473Courtesy of NISSAN MOTOR CO., U.S.A.

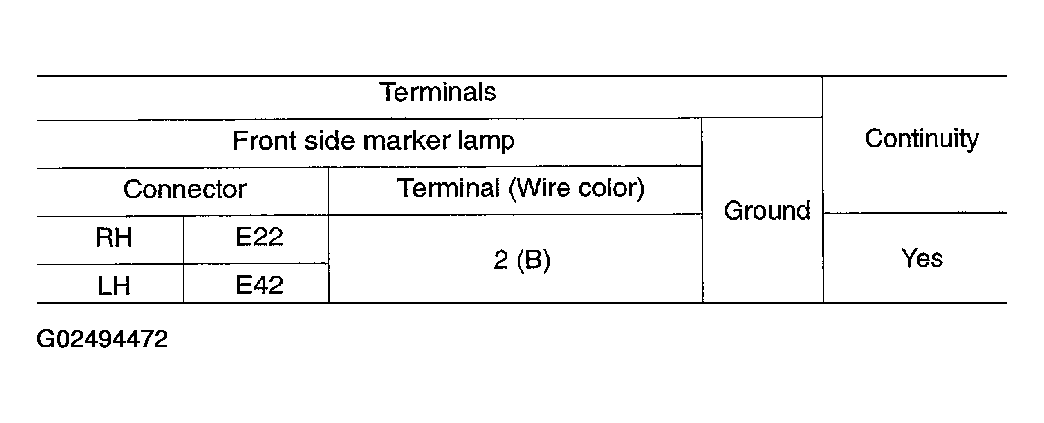

      Fig 21: Connector E22 & E42 Terminal 2 Specifications
      G02494472Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between front side maker lamp harness connector and ground.

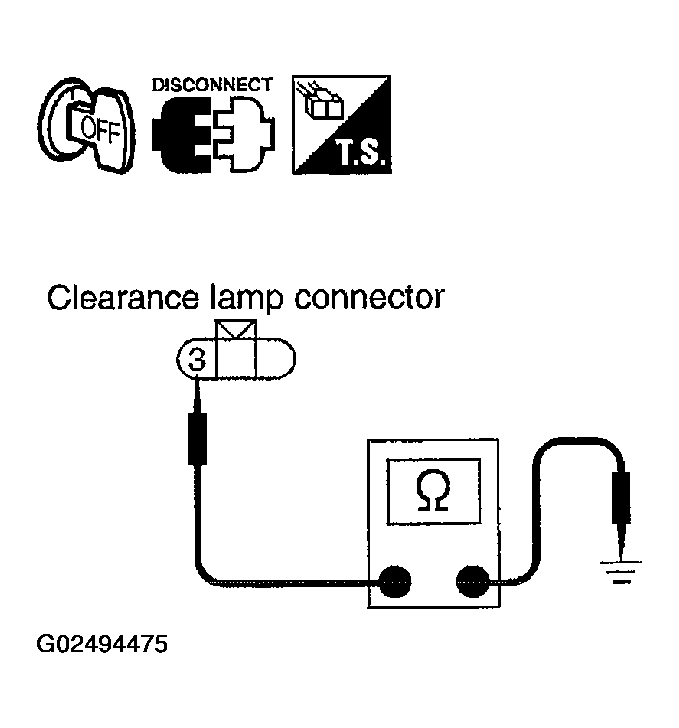

      Fig 22: Testing Clearance Lamp Ground Circuit
      G02494475Courtesy of NISSAN MOTOR CO., U.S.A.

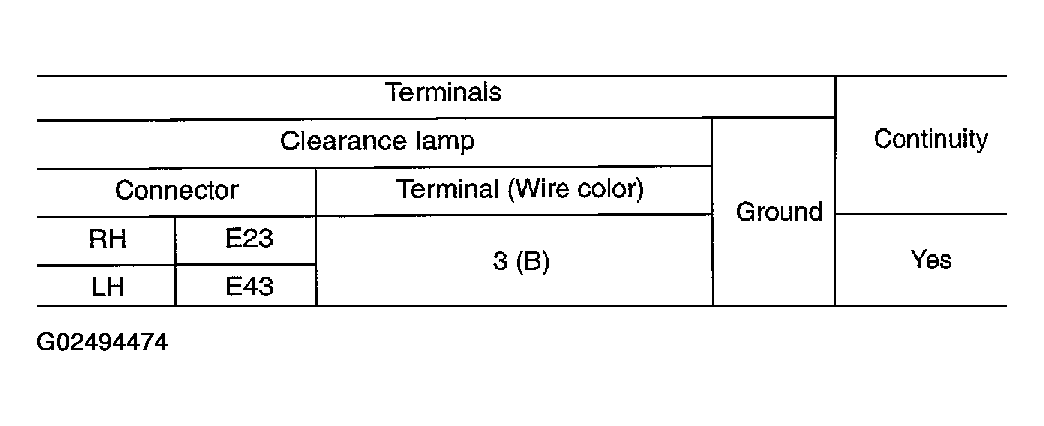

      Fig 23: Connector E23 & E43 Terminal 3 Specifications
      G02494474Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between front side maker lamp harness connector and ground.

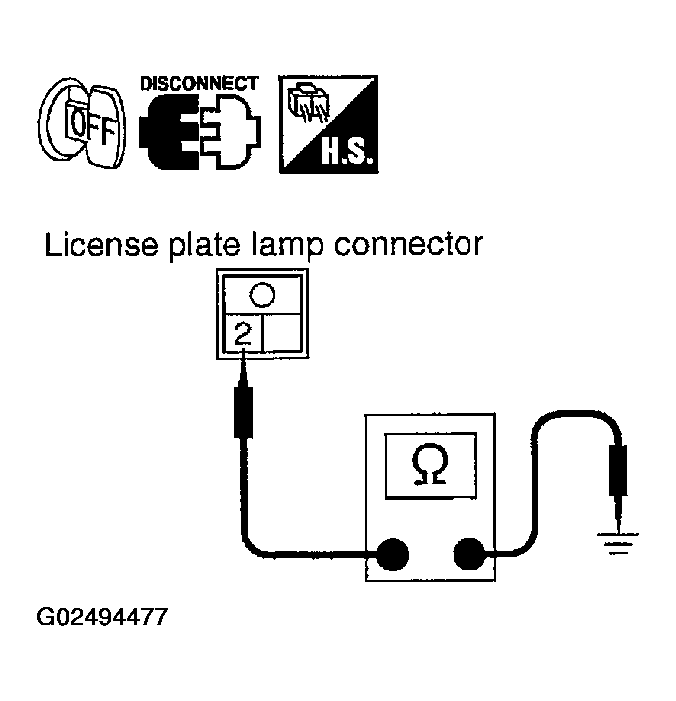

      Fig 24: Testing License Plate Ground Circuit
      G02494477Courtesy of NISSAN MOTOR CO., U.S.A.

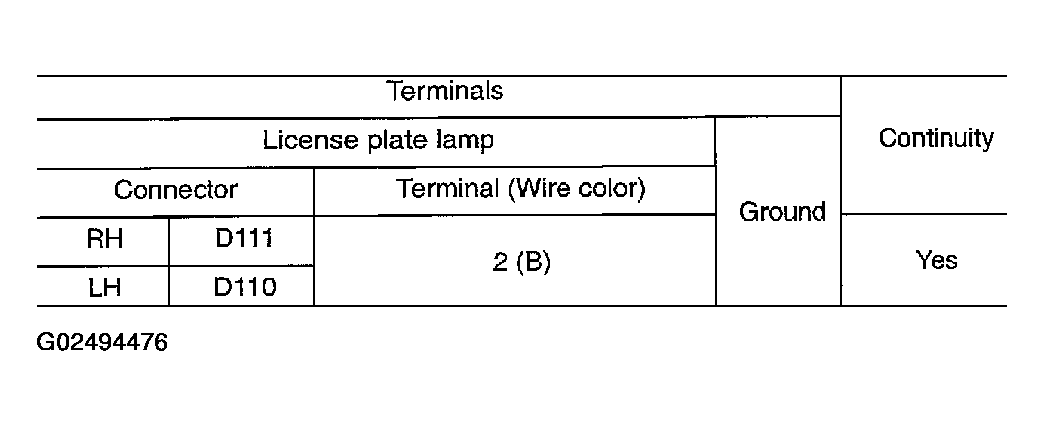

      Fig 25: Connector D110 & D111 Terminal 2 Specifications
      G02494476Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check continuity between front side maker lamp harness connector and ground.

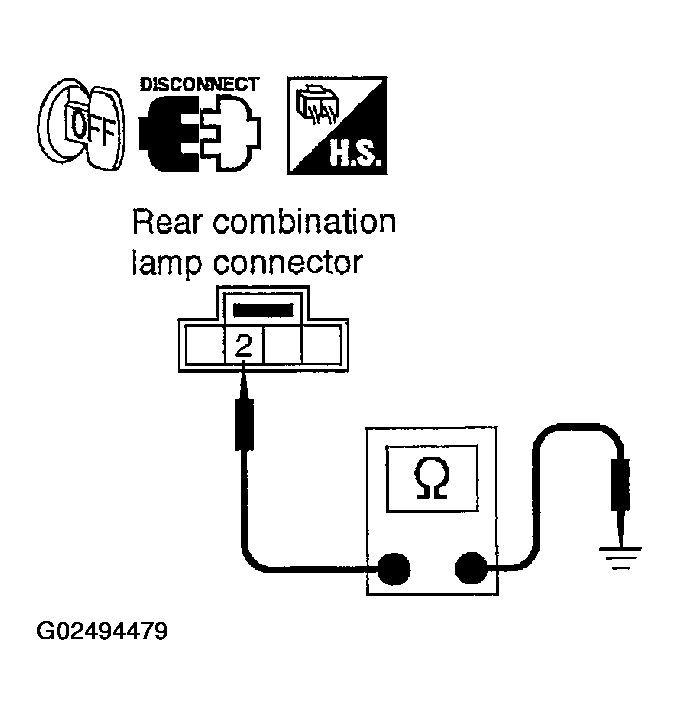

      Fig 26: Testing Rear Combination Lamp Ground Circuit
      G02494479Courtesy of NISSAN MOTOR CO., U.S.A.

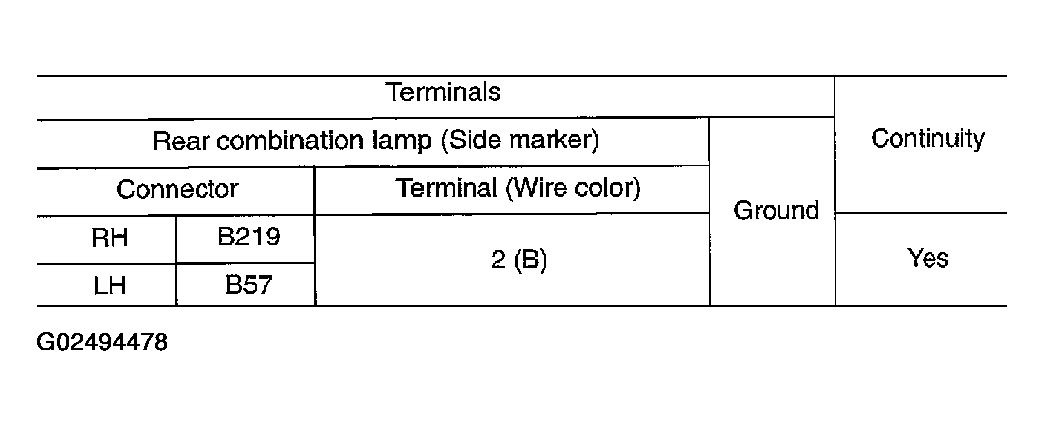

      Fig 27: Connector B219 & B57 Terminal 2 Specifications
      G02494478Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Check bulb.
    2. NG: Repair harness or connector.
