Rear Fender Side (Rear Side Marker Lamp Bulb)

  1. Remove rear combination lamp.
  2. Turn bulb socket counterclockwise and unlock it.

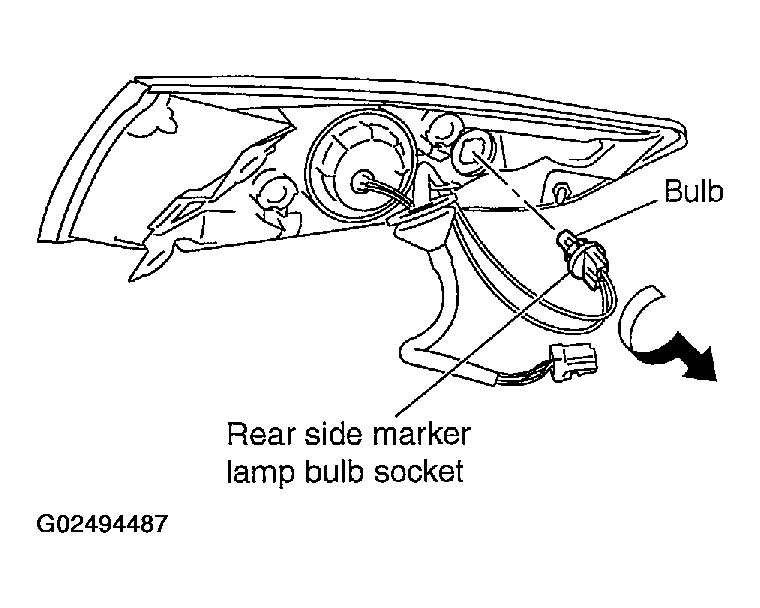

    Fig 1: Locating Bulb & Bulb Socket (Rear Side Marker)
    G02494487Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bulb.
