Wiring Diagram - TAIL/L -

For wiring diagram references to PG-POWER  , see FX-35 POWER DISTRIBUTION or FX-45 POWER DISTRIBUTION , and FX-35 GROUND DISTRIBUTION or FX-45 GROUND DISTRIBUTION . For component locations, see FX-35 ELECTRICAL COMPONENT LOCATOR or FX-45 ELECTRICAL COMPONENT LOCATOR .

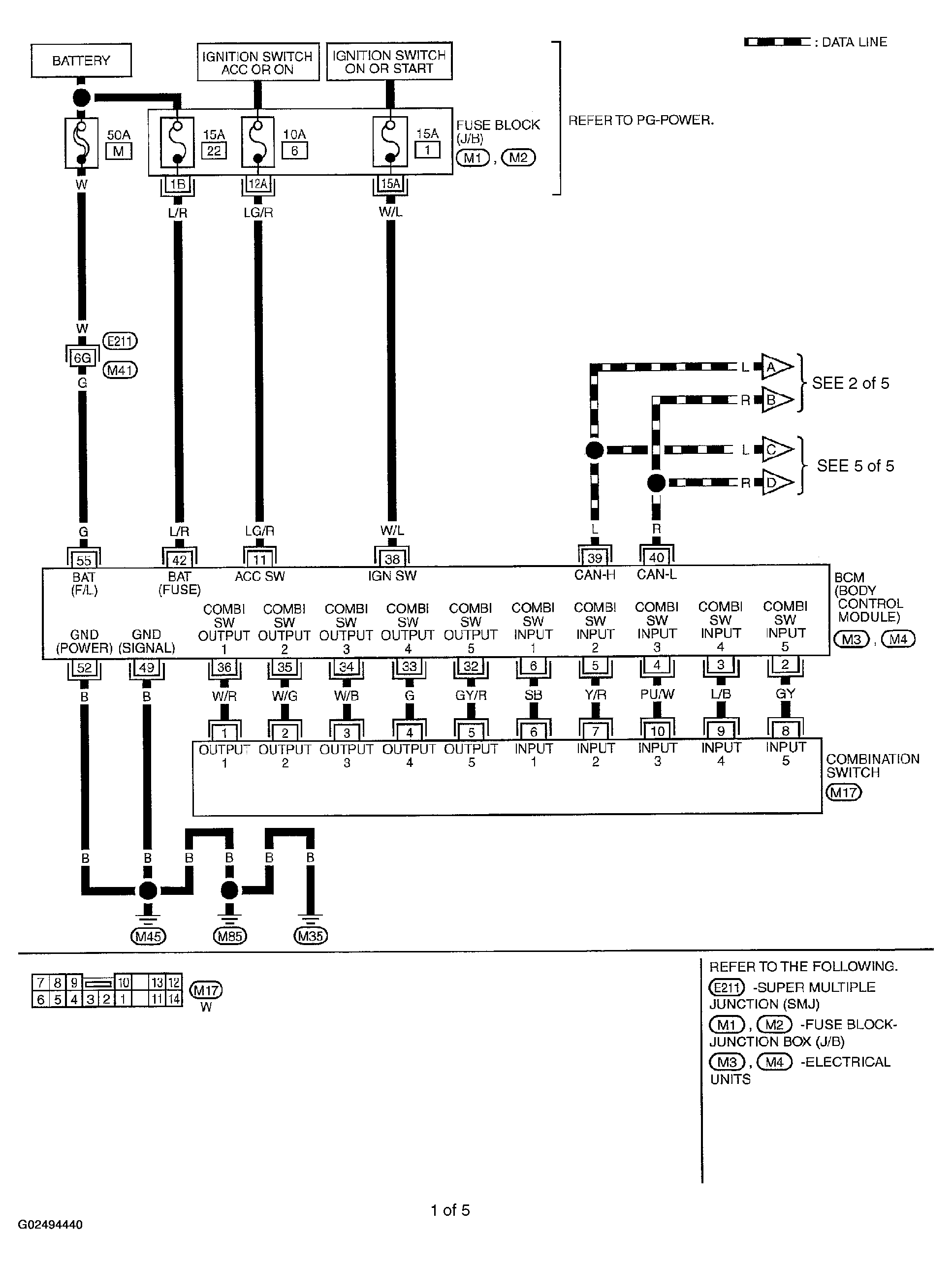

Fig 1: Parking License Plate And Tail Lamps Circuit (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

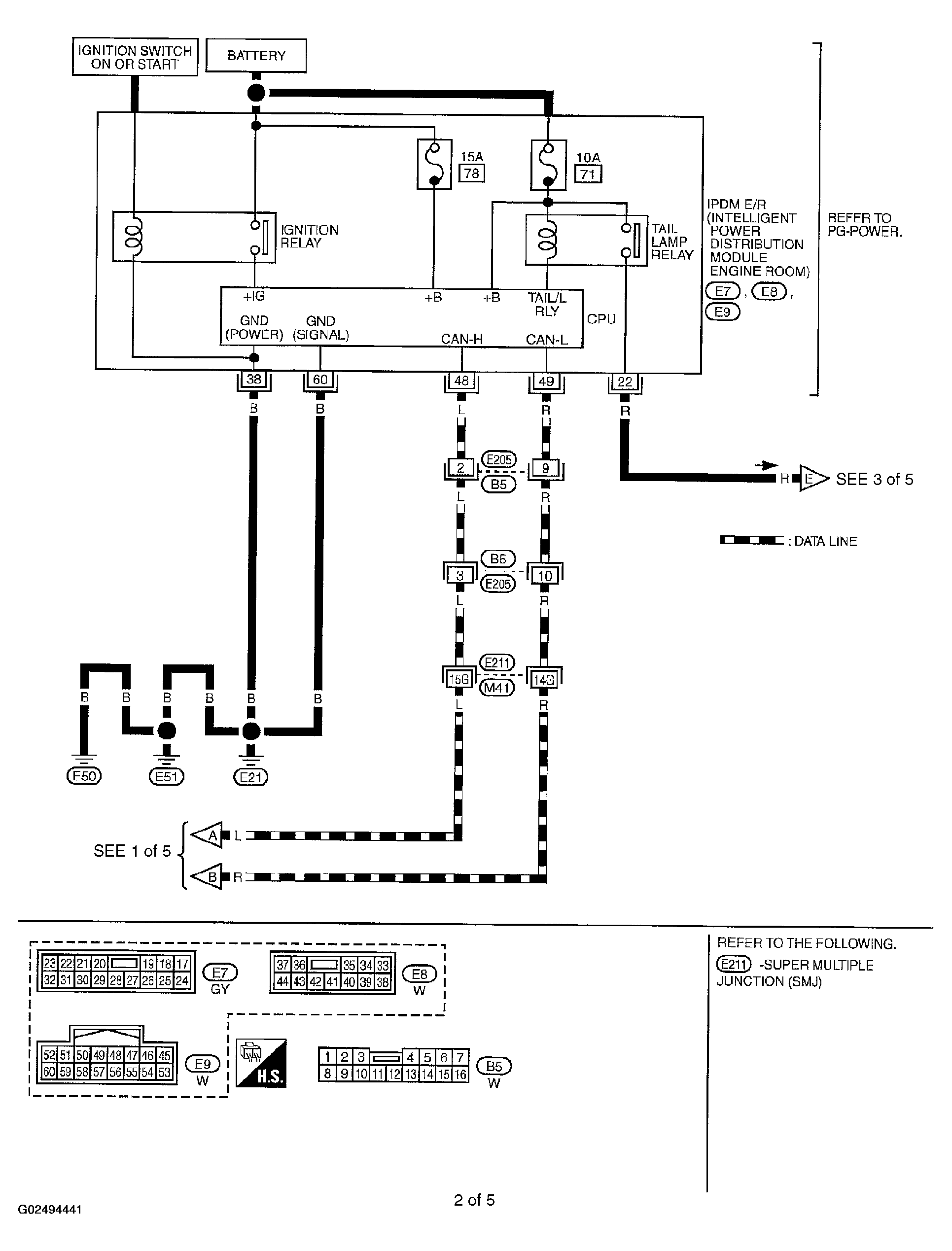

Fig 2: Parking License Plate And Tail Lamps Circuit (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

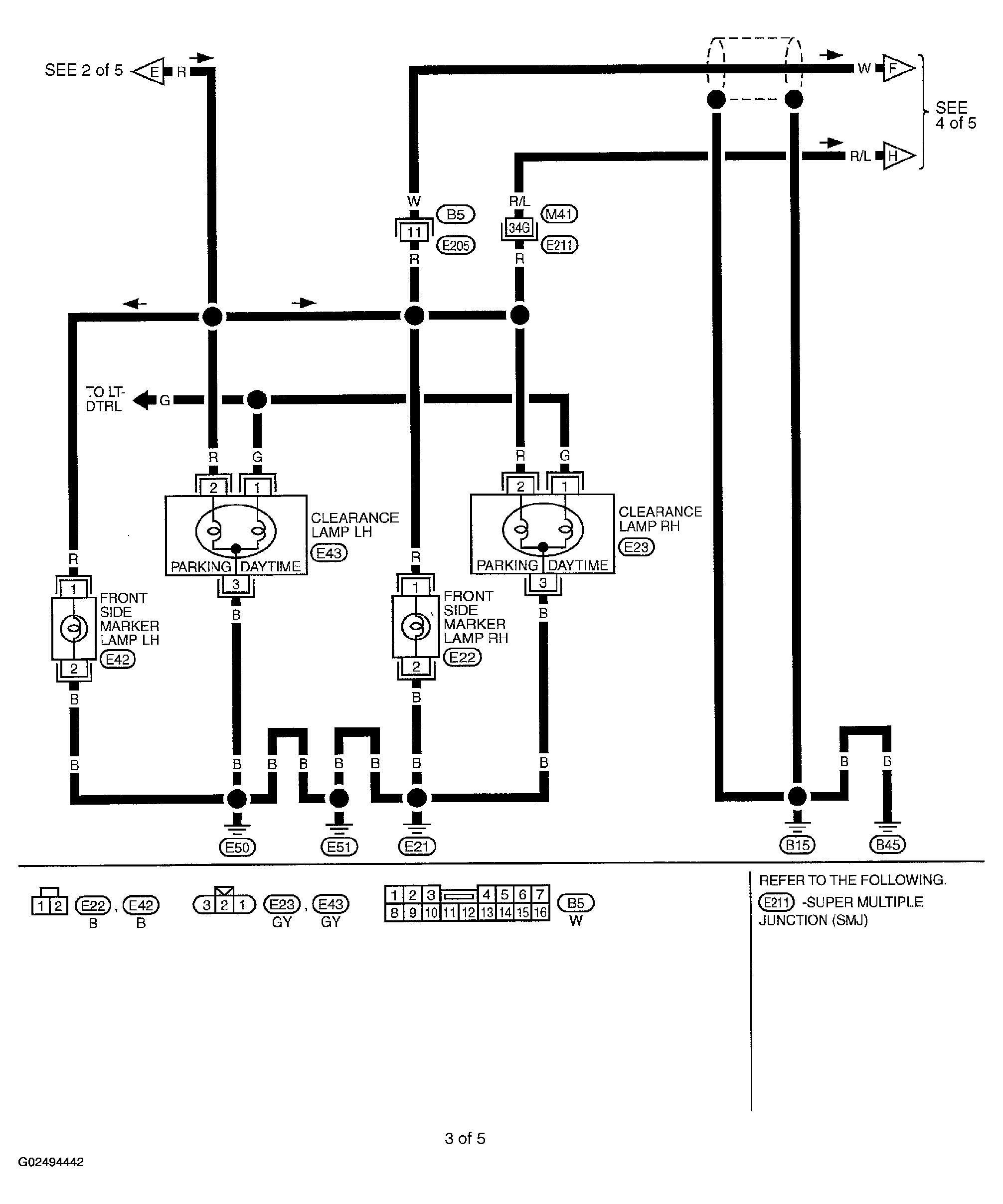

Fig 3: Parking License Plate And Tail Lamps Circuit (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

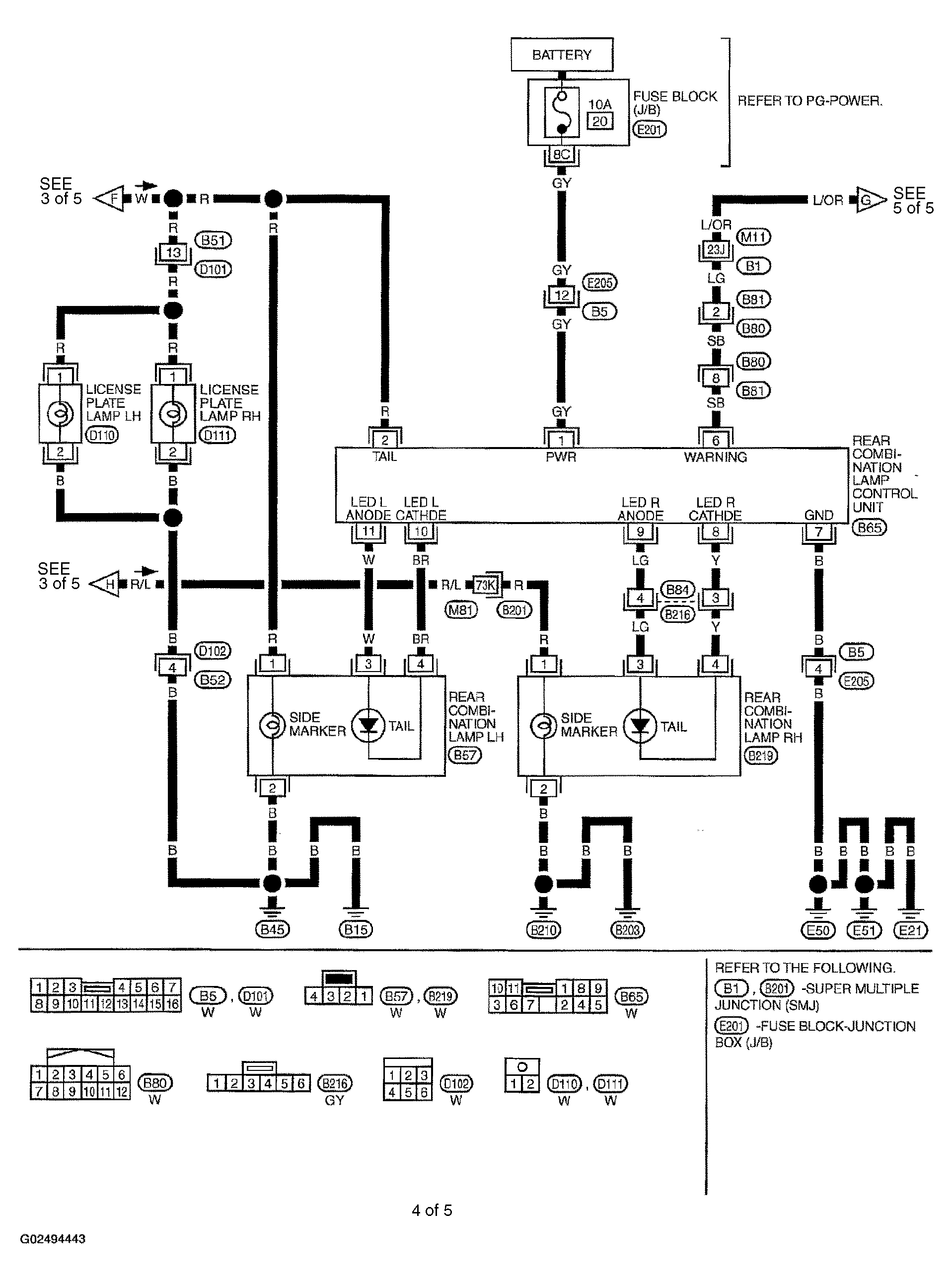

Fig 4: Parking License Plate And Tail Lamps Circuit (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

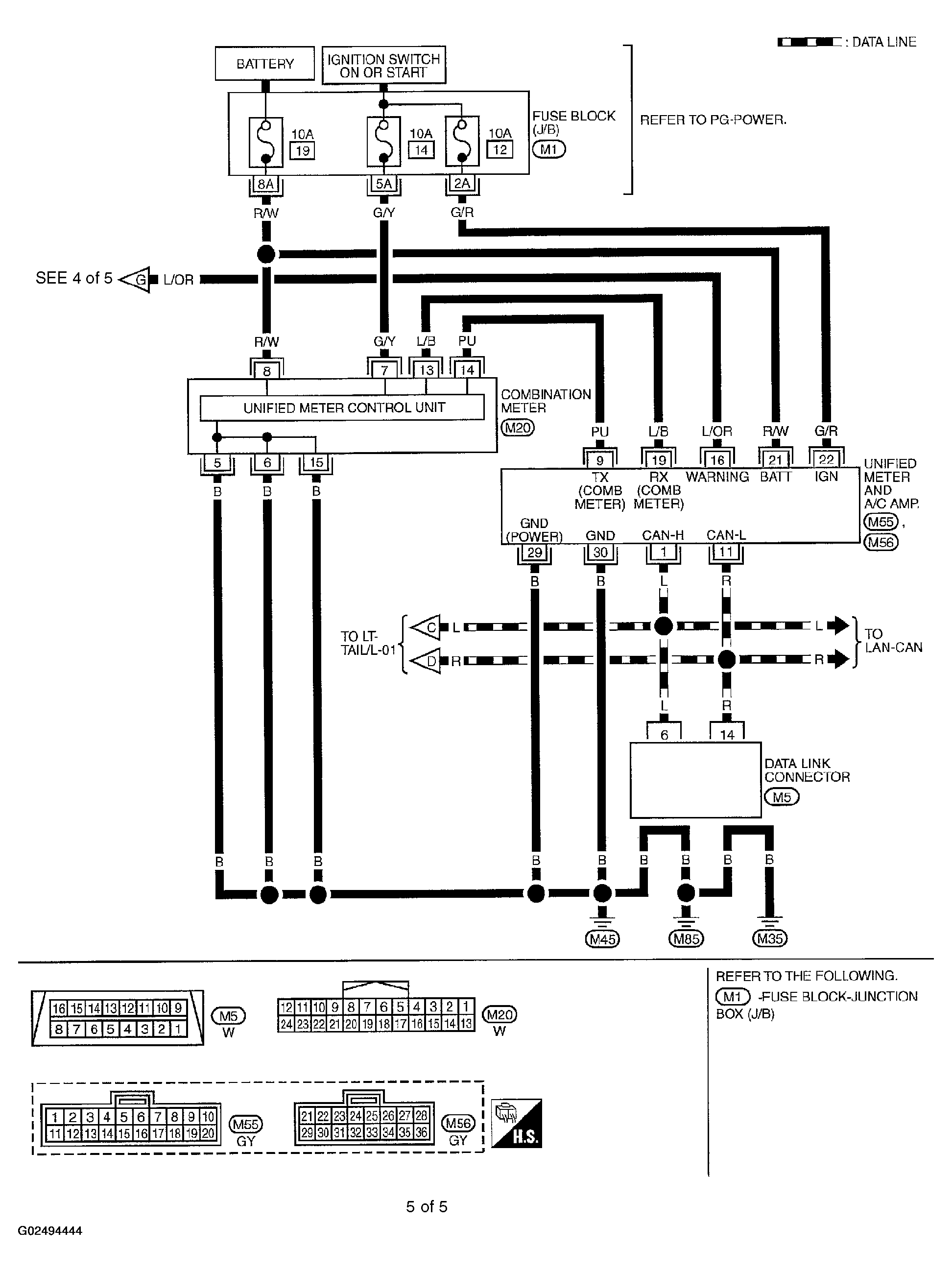

Fig 5: Parking License Plate And Tail Lamps Circuit (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
