Terminals and Reference Values for BCM

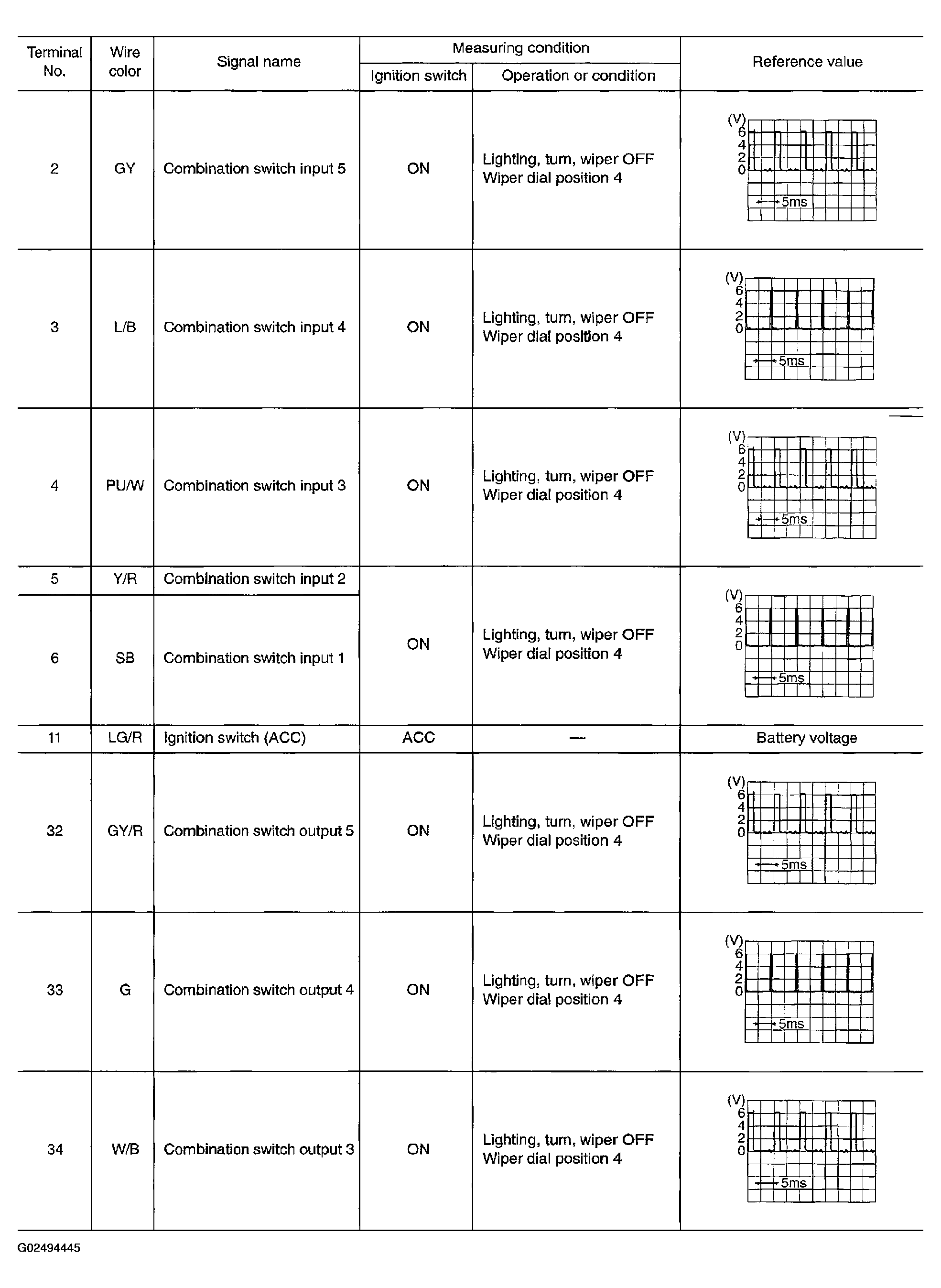

Fig 1: BCM Terminal Specifications (1 Of 2)

G02494445

Courtesy of NISSAN MOTOR CO., U.S.A.

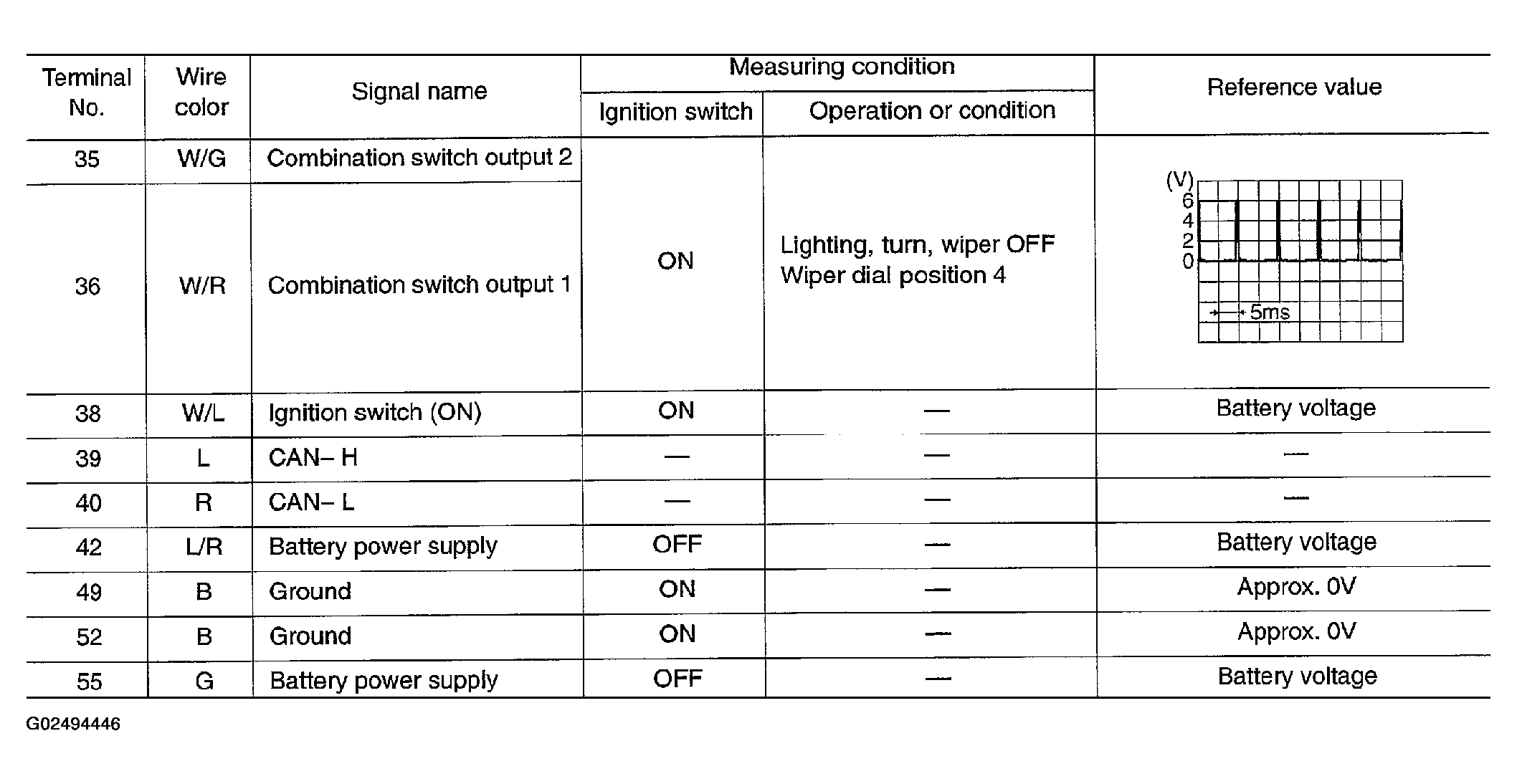

Fig 2: BCM Terminal Specifications (2 Of 2)

G02494446

Courtesy of NISSAN MOTOR CO., U.S.A.
