Parking, License Plate And Tail Lamps: Schematic

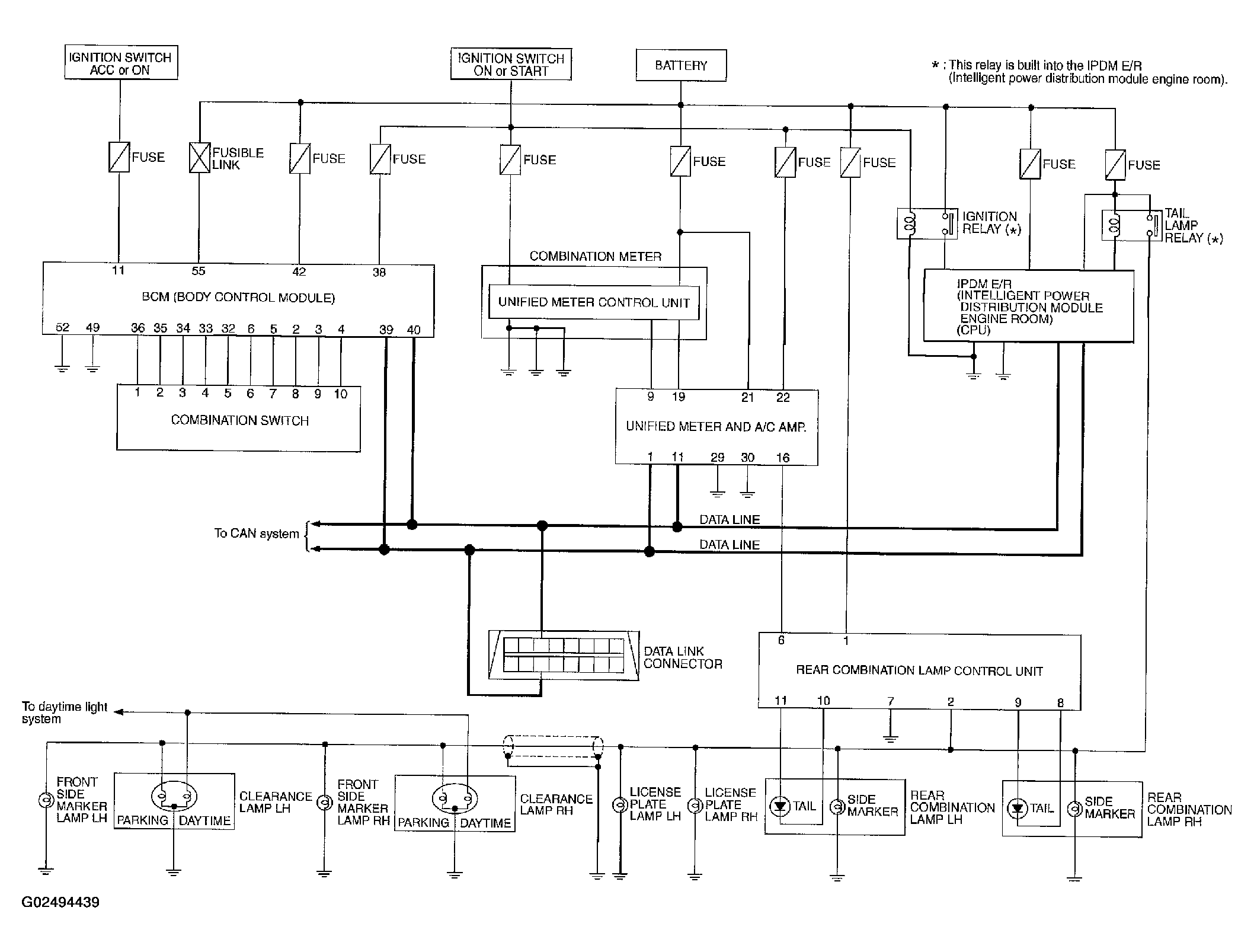

Fig 1: Parking License Plate And Tail Lamps Schematic

G02494439

Courtesy of NISSAN MOTOR CO., U.S.A.
