Bulb Replacement, Removal And Installation

  1. Remove screws and remove license plate lamp from back door.

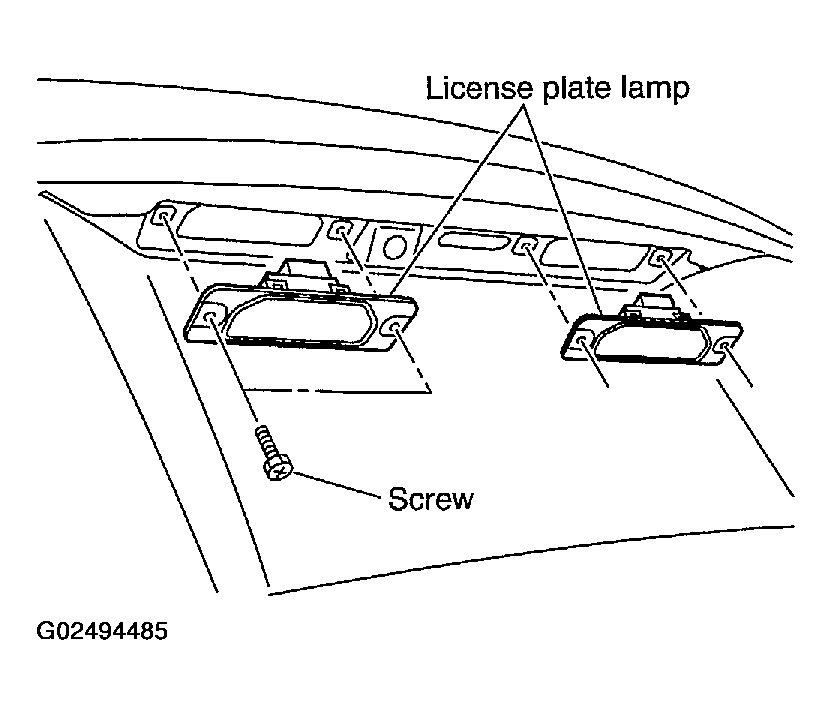

    Fig 1: Identifying License Plate Lamps
    G02494485Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect license plate lamp connector.
  3. Insert a flat head or suitable tool and remove housing.
  4. Remove bulb from it's socket.

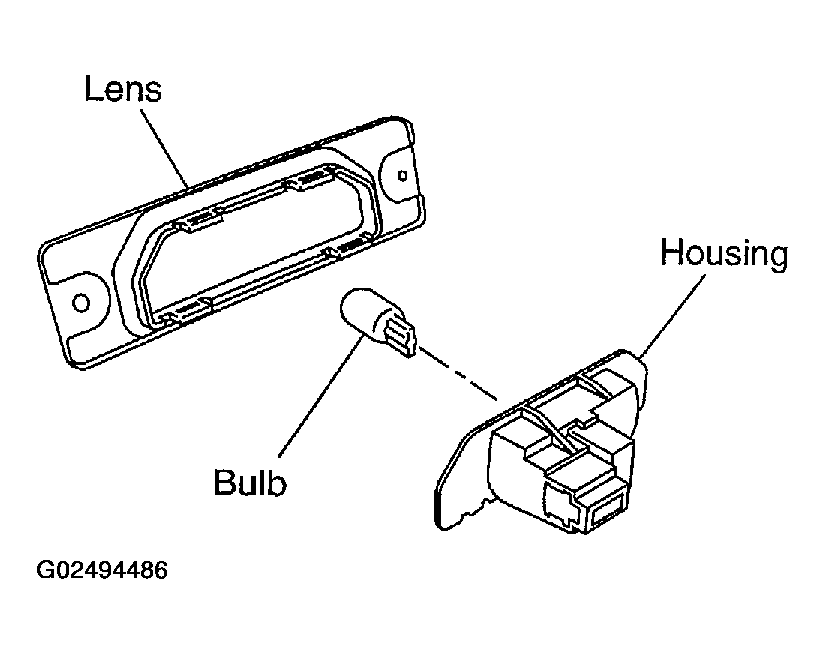

    Fig 2: Identifying License Plate Lamp Components
    G02494486Courtesy of NISSAN MOTOR CO., U.S.A.

    License plate lamp: 12V - 5W

  5. Install in the reverse order of removal.
