Removal and Installation: Removal

  1. Use a clip driver or similar tool to press metal clip, and remove personal lamp.

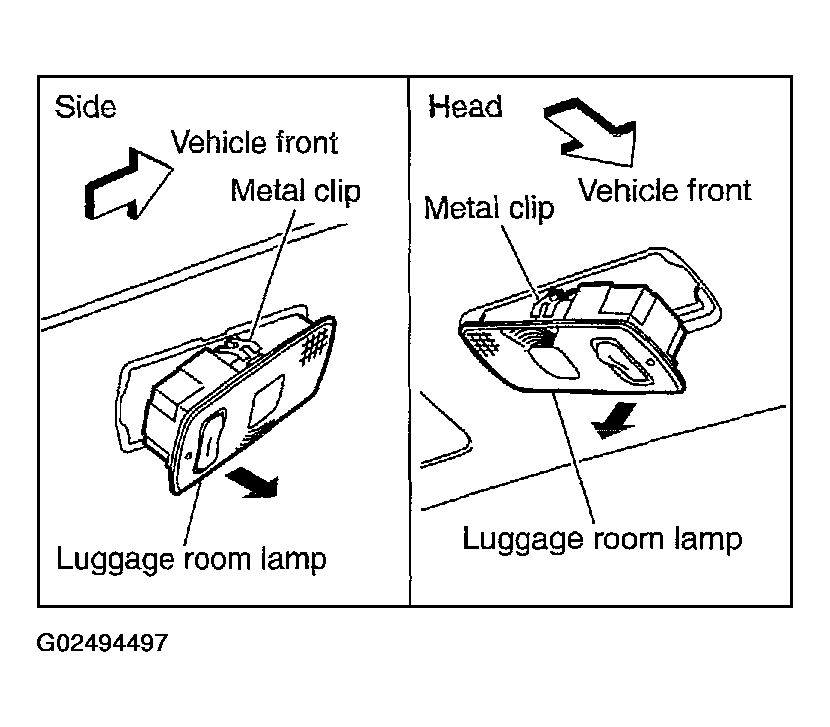

    Fig 1: Removing Luggage Room Lamps
    G02494497Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect personal lamp connector.
