Bulb Replacement

  1. Remove luggage room lamp. Refer to REMOVAL AND INSTALLATION .
  2. Remove screw from luggage room lamp.

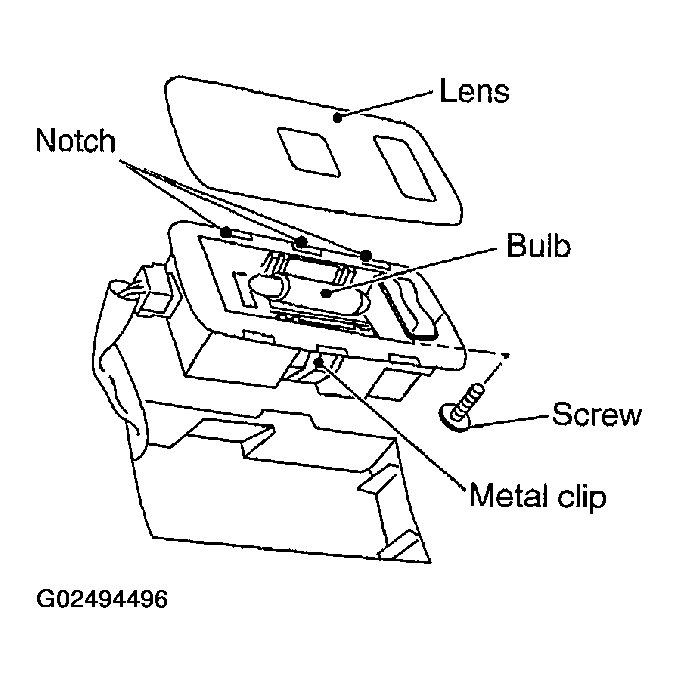

    Fig 1: Identifying Luggage Room Lamp Components
    G02494496Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Insert a suitable tool and remove lens.
  4. Remove bulb.

    Luggage room lamp: 12V - 8W

  5. Install in the reverse order of removal.
