Bulb Replacement, Removal and Installation

  1. Remove combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
  2. Remove screw and remove NATS antenna amp.

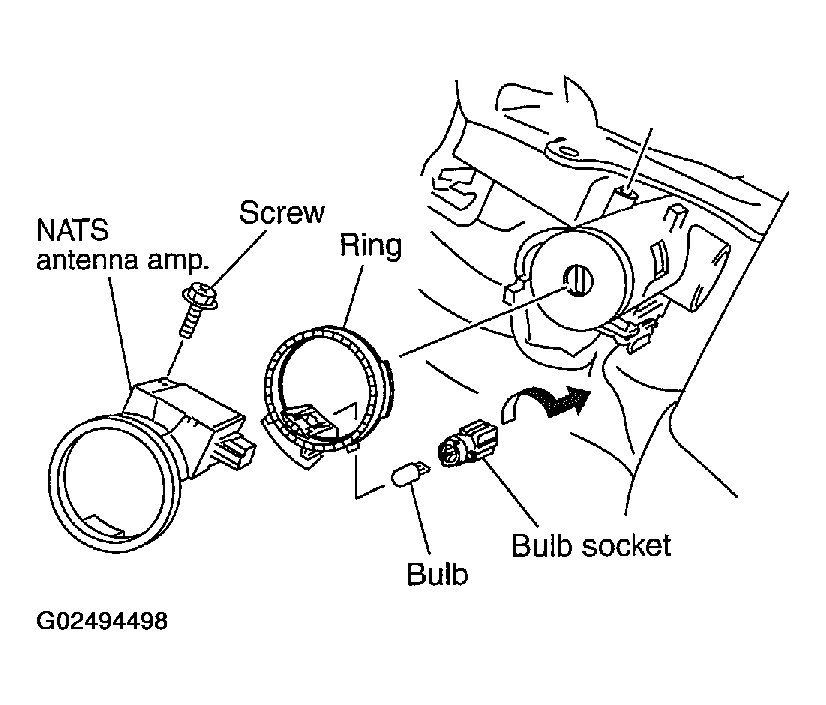

    Fig 1: Removal & Installation Ignition Key Hole Illumination
    G02494498Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Pull out ring and turn bulb socket to left to release lock.

    Key cylinder illumination: 12V - 1.4W

  4. Install in the reverse order of removal.
