Bulb Replacement and Removal and Installation

Remove A/T console finisher. Refer to step F in REMOVAL .
Remove instrument ashtray and hazard switch. Refer to step 1 in DISASSEMBLY .
Use a screwdriver to undo ashtray finisher hooks.

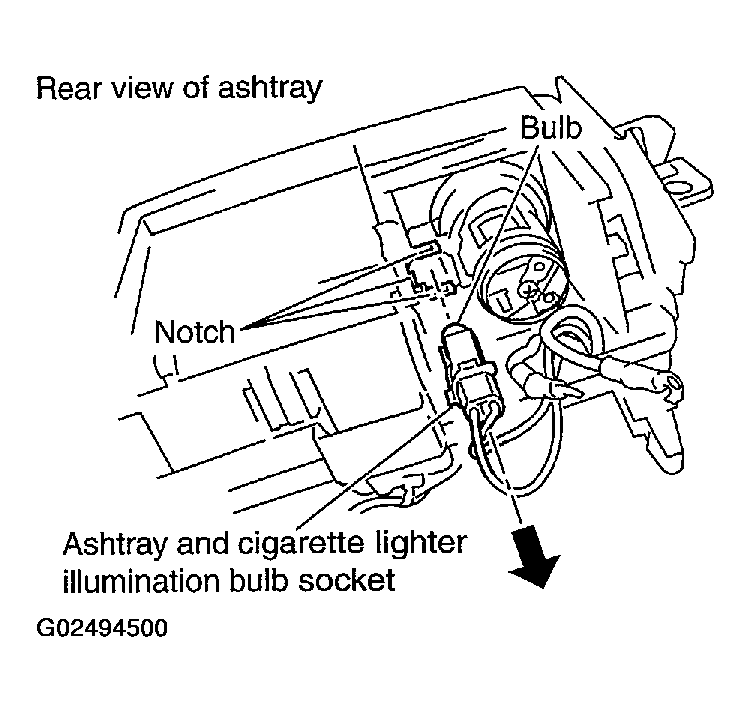

Fig 1: Identifying Ashtray Illumination Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn bulb socket on circuit board to left to undo lock. Remove bulb socket.
Install in the reverse order of removal.
Ashtray and cigarette lighter illumination: 12V - 1.4W
