Warning Lamps: Schematic

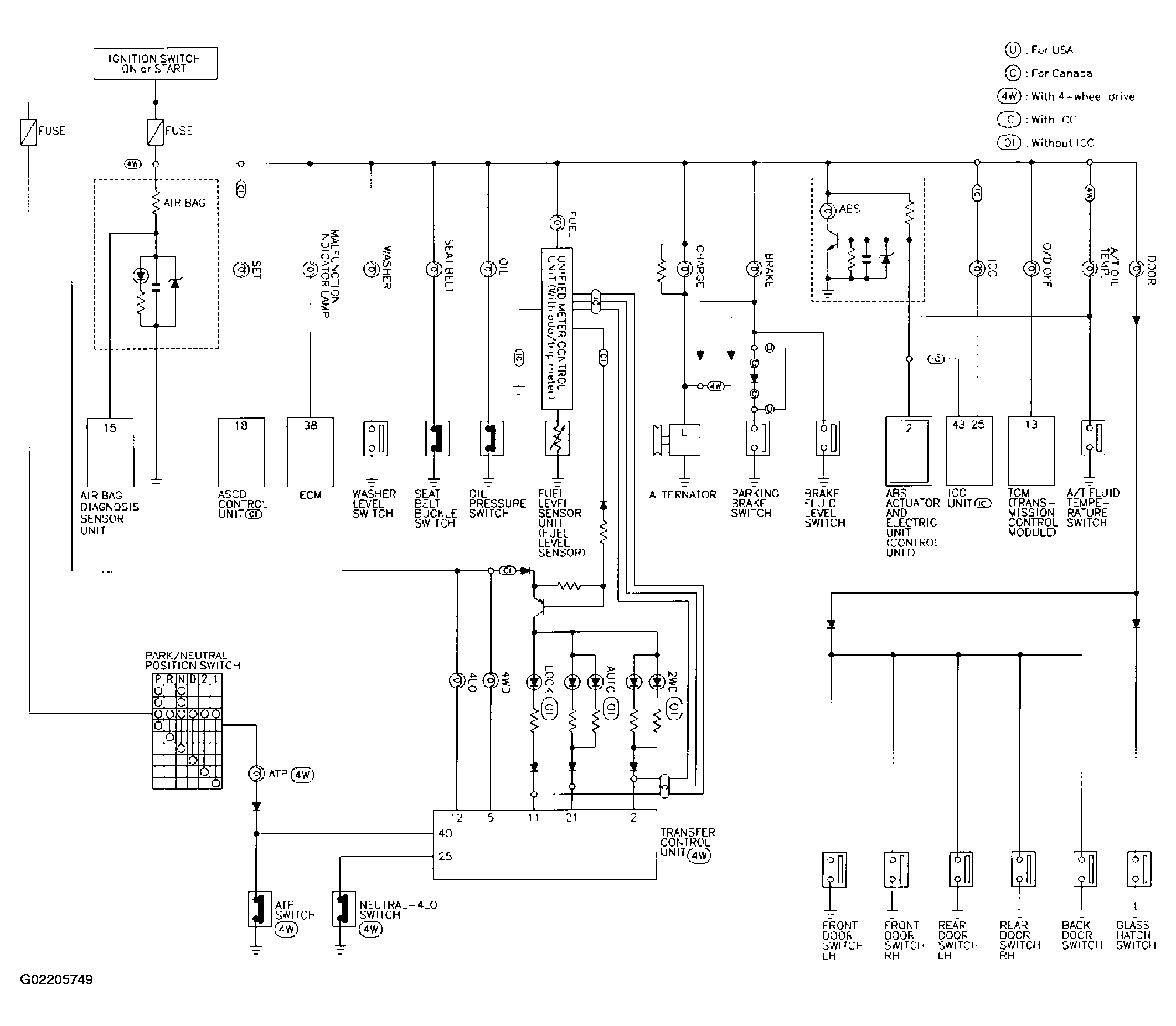

Fig 1: Warning Lamp Schematic Diagram

G02205749

Courtesy of NISSAN MOTOR CO., U.S.A.
