Meter/Gauge Resistance Check

Check resistance between installation screws of meter/gauge.

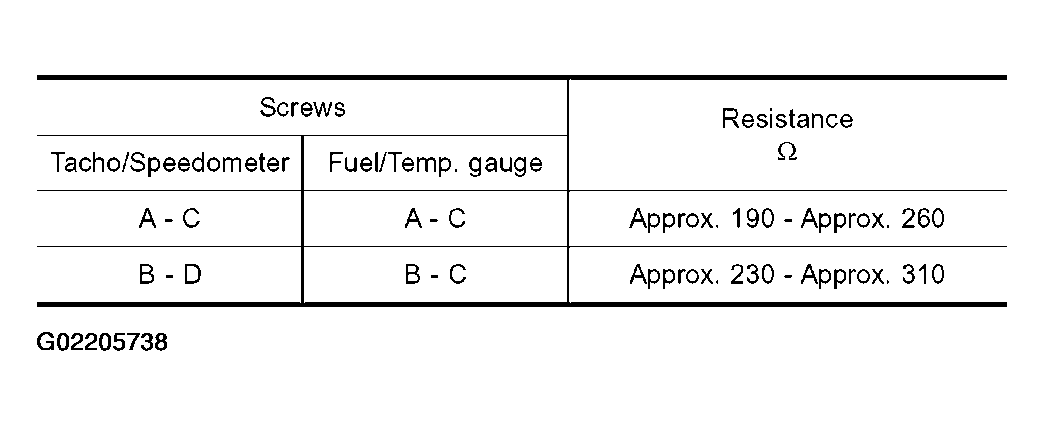

Fig 1: Meter/Gauge Installation Screws Resistance Chart
G02205738Courtesy of NISSAN MOTOR CO., U.S.A.

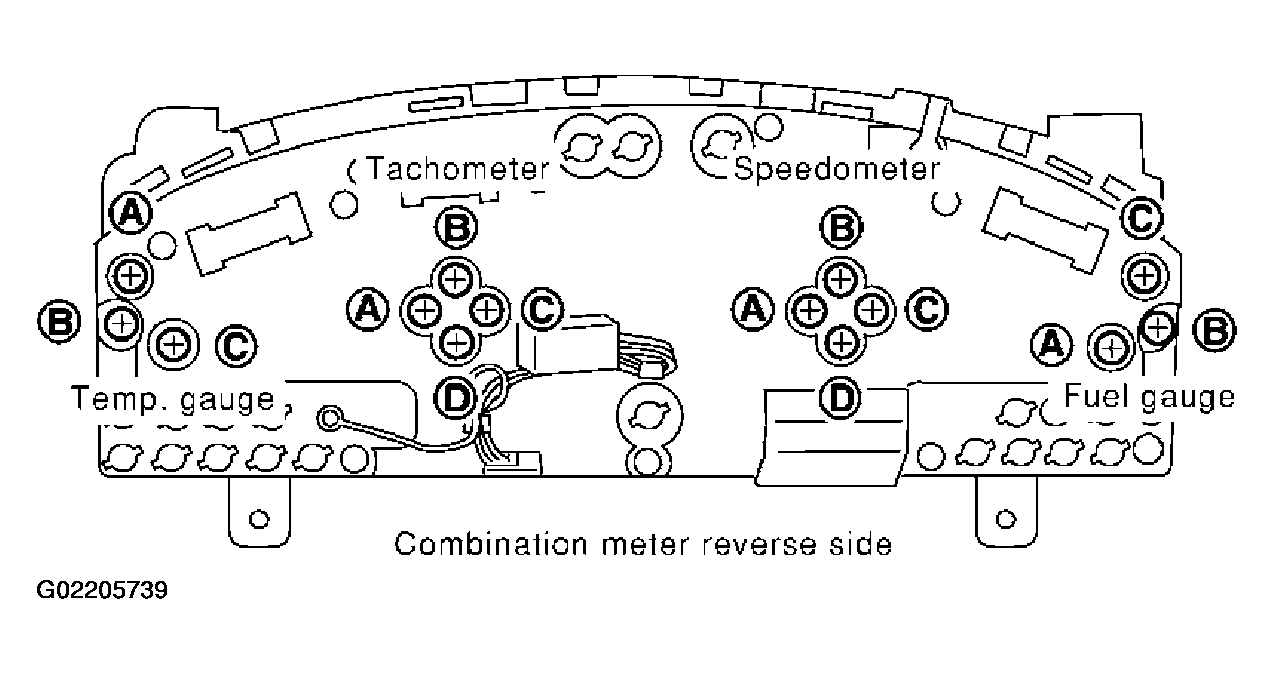

Fig 2: Identifying Screws On Reverse Side Of Combination Meter
G02205739Courtesy of NISSAN MOTOR CO., U.S.A.
