Wiring Diagram - CLOCK -

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

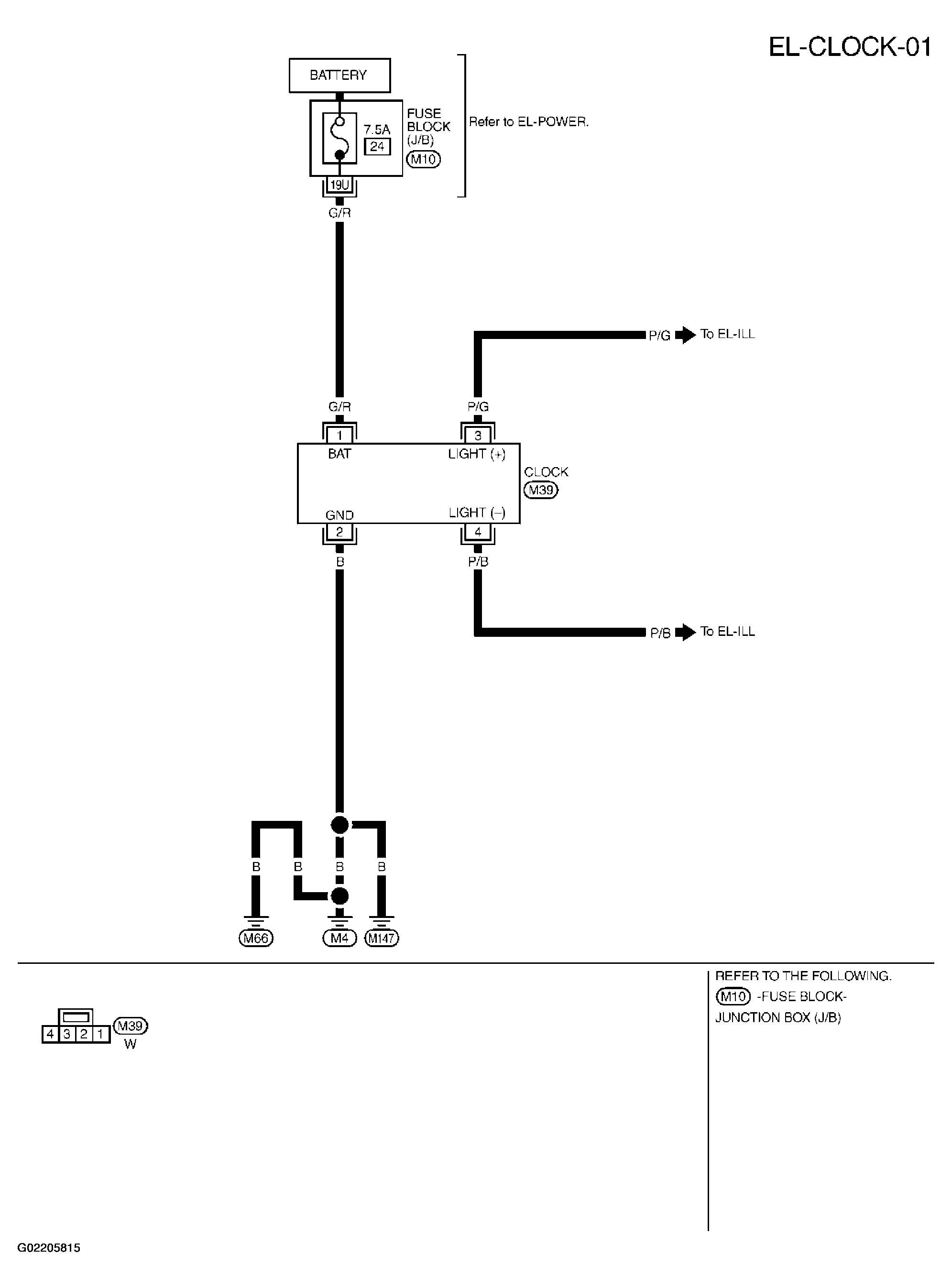

Fig 1: Circuit Diagram Clock

G02205815

Courtesy of NISSAN MOTOR CO., U.S.A.
