Wiring Diagram - TAIL/L -

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

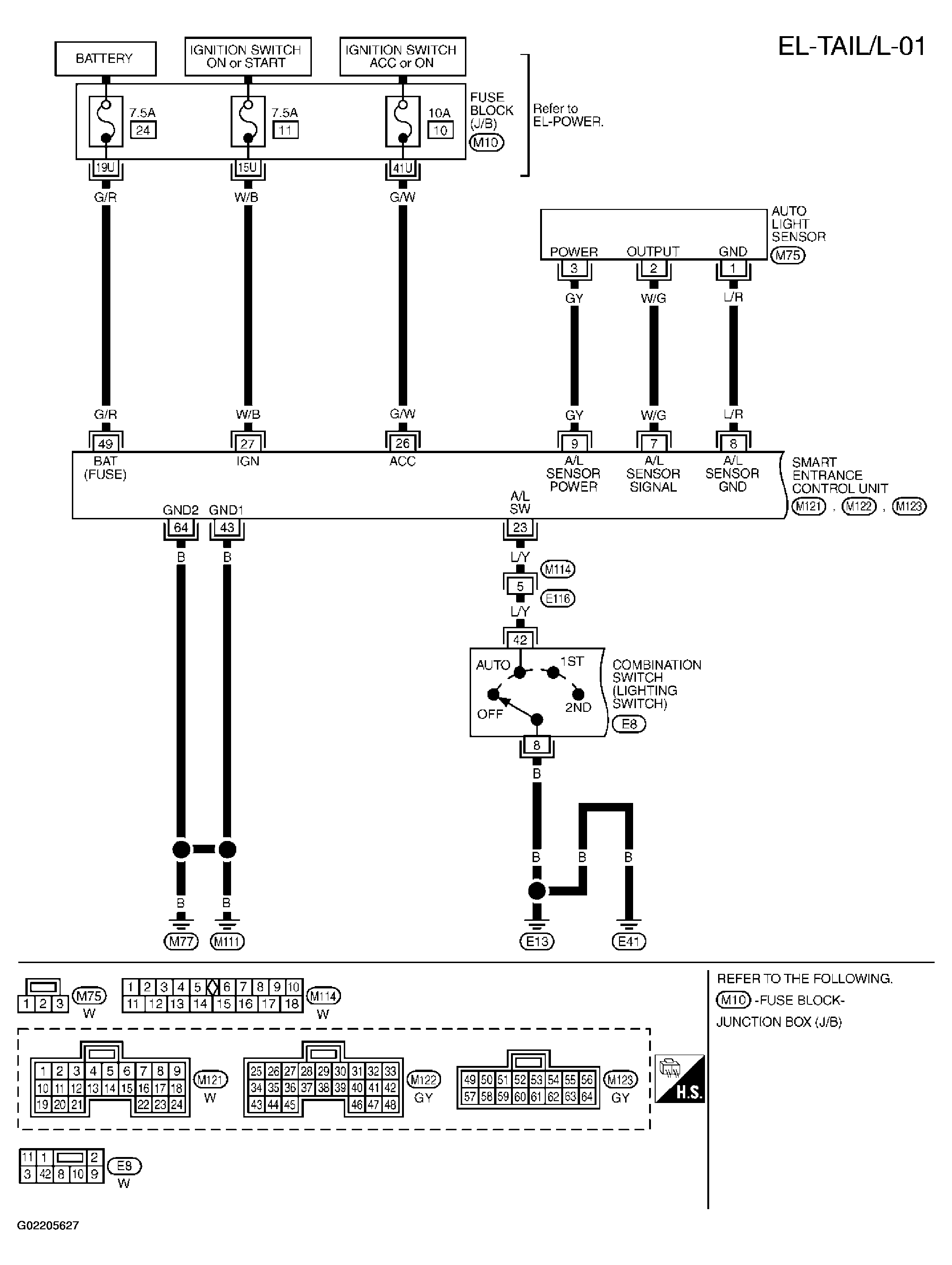

Fig 1: Circuit Diagram Tail Lamp (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

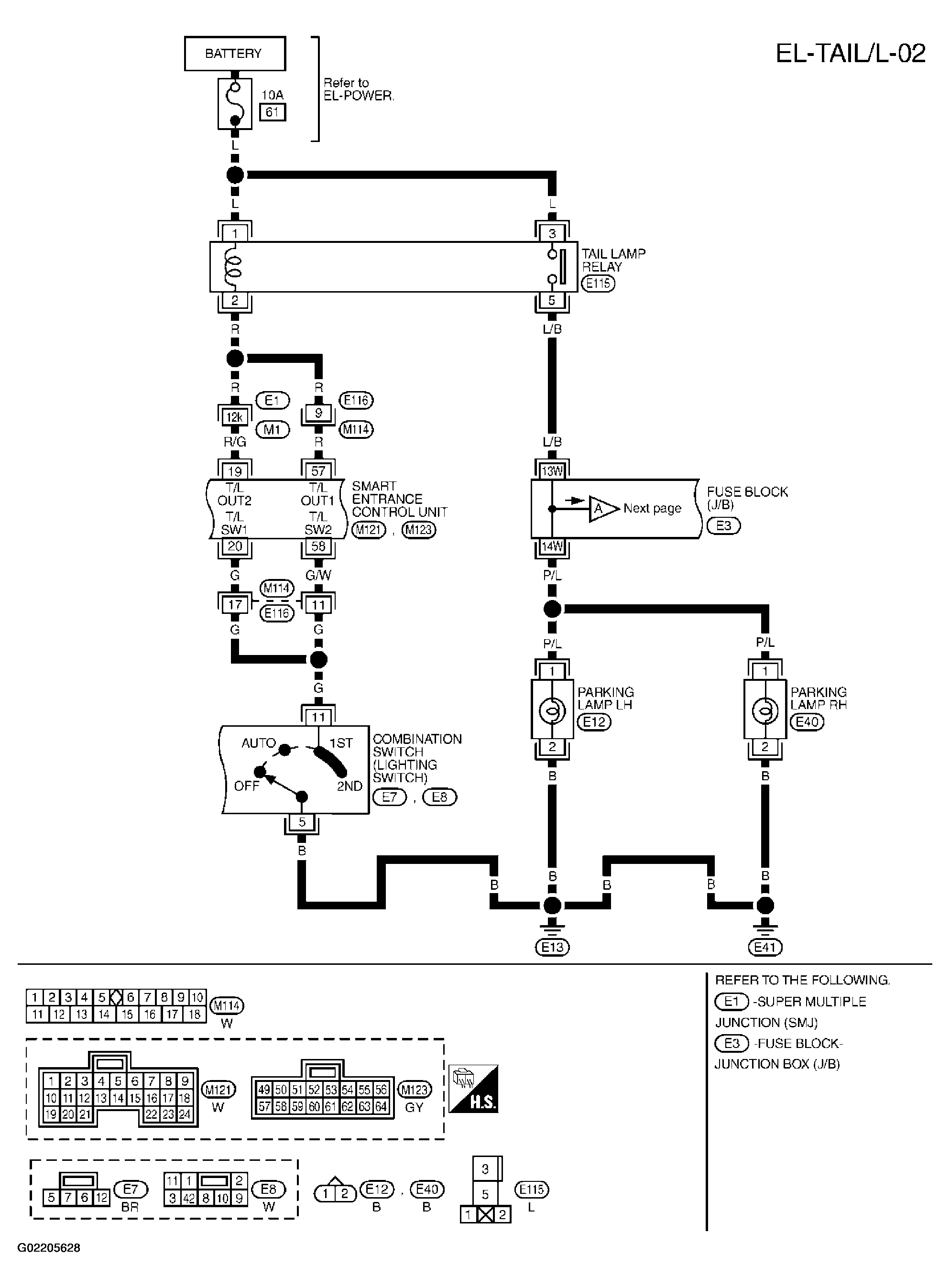

Fig 2: Circuit Diagram Tail Lamp (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

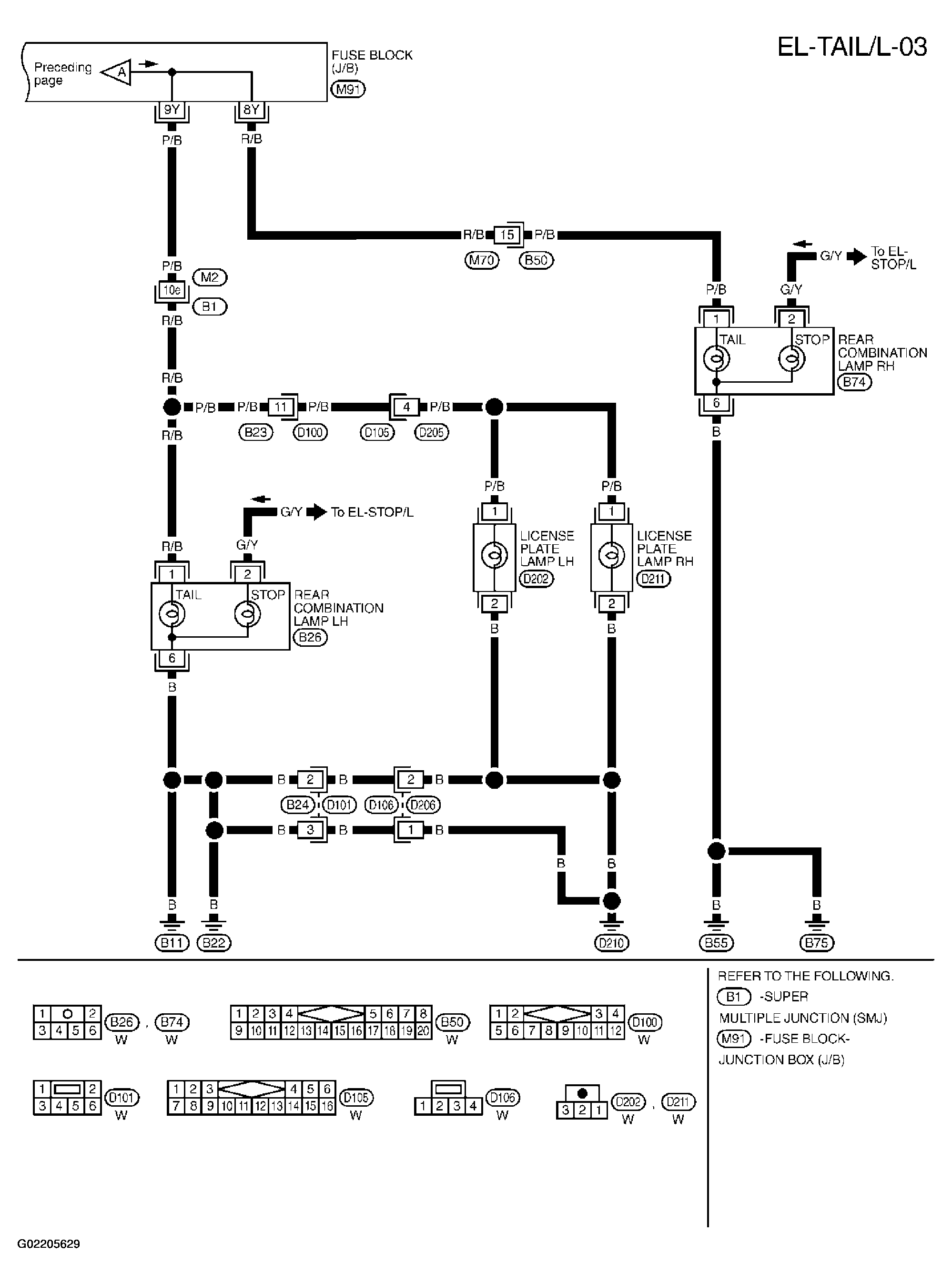

Fig 3: Circuit Diagram Tail Lamp (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

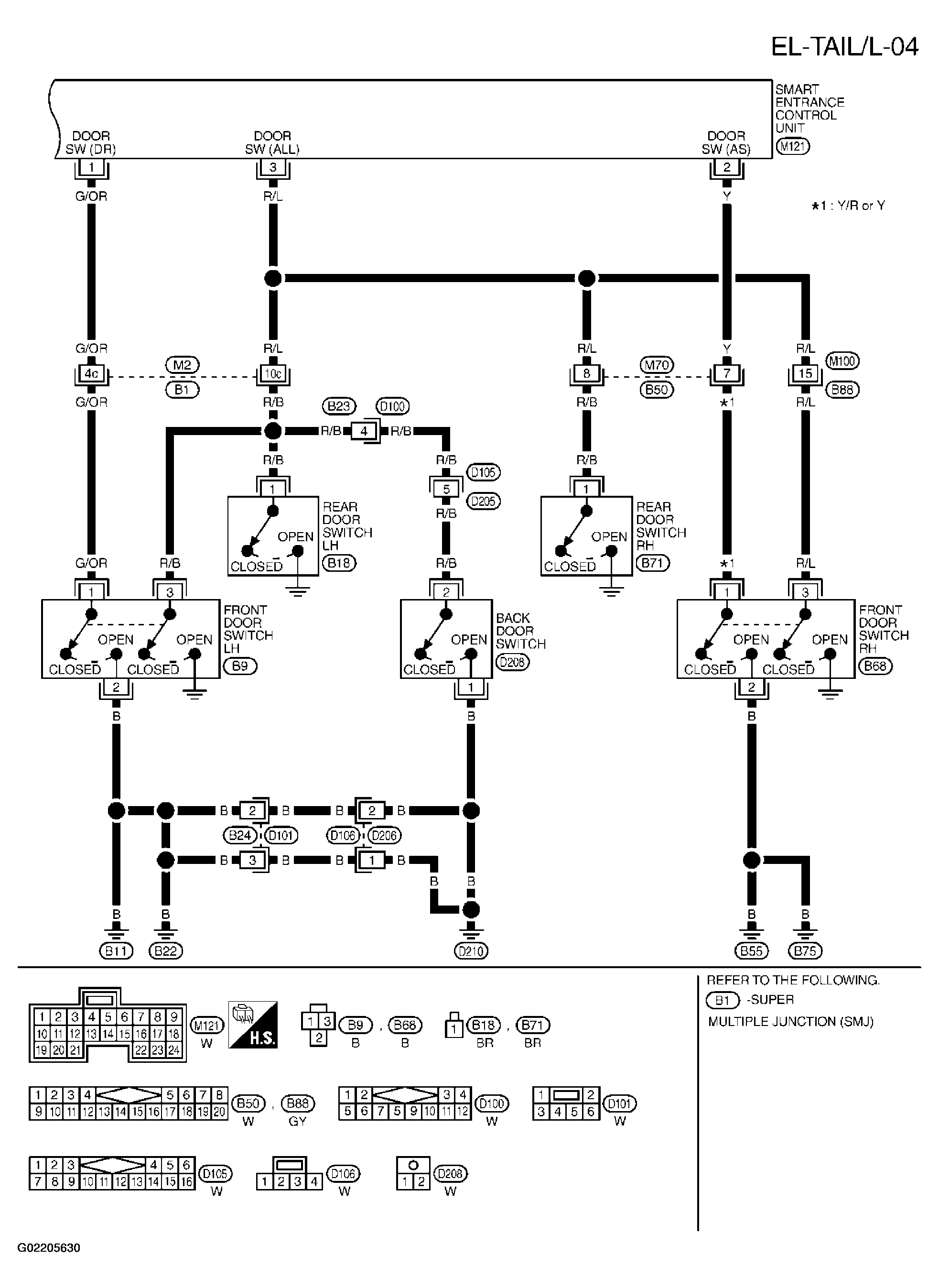

Fig 4: Circuit Diagram Tail Lamp (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
