Parking License And Tail Lamps
>>
Trouble Diagnoses
Trouble Diagnoses

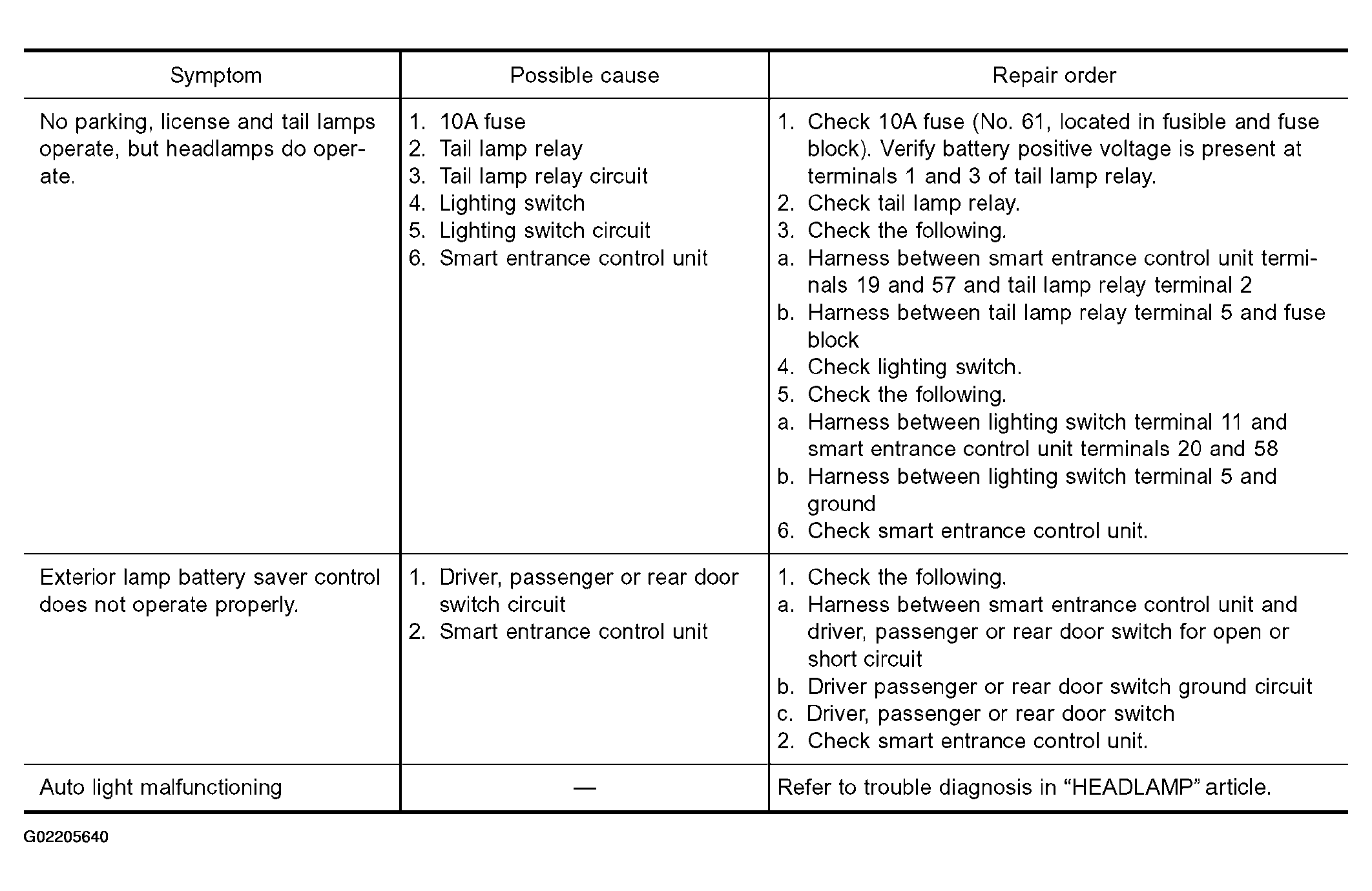

Fig 1: Parking, License And Tail Lamps Trouble Diagnoses Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

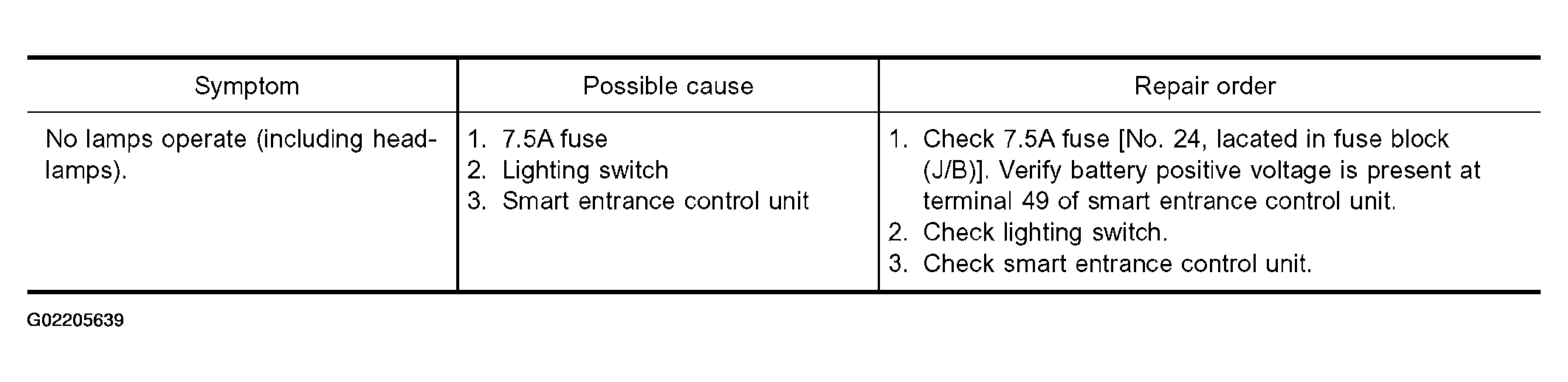

Fig 2: Parking, License And Tail Lamps Trouble Diagnoses Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
