CONSULT-II Inspection Procedure: "Headlamp"

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

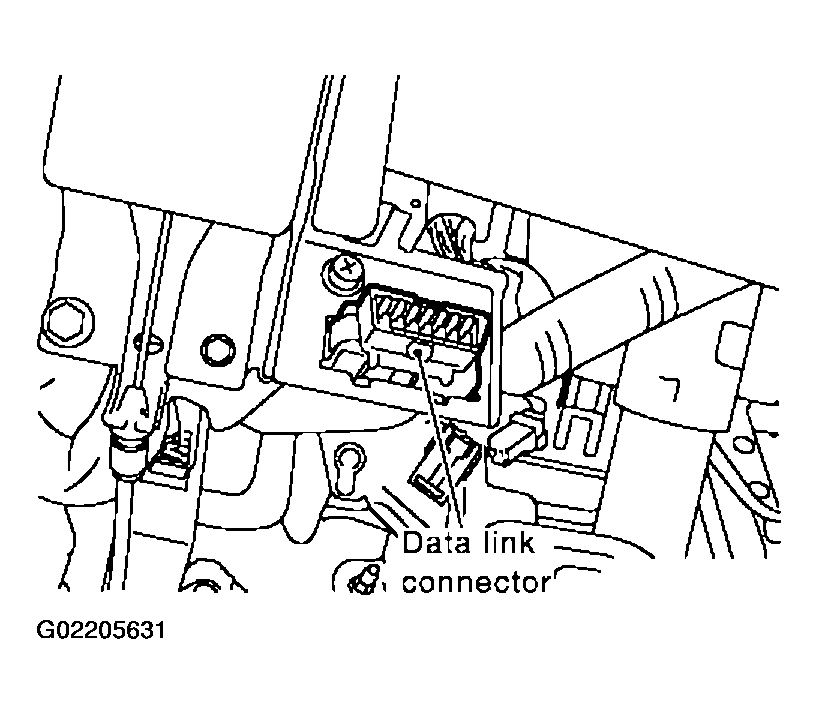

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

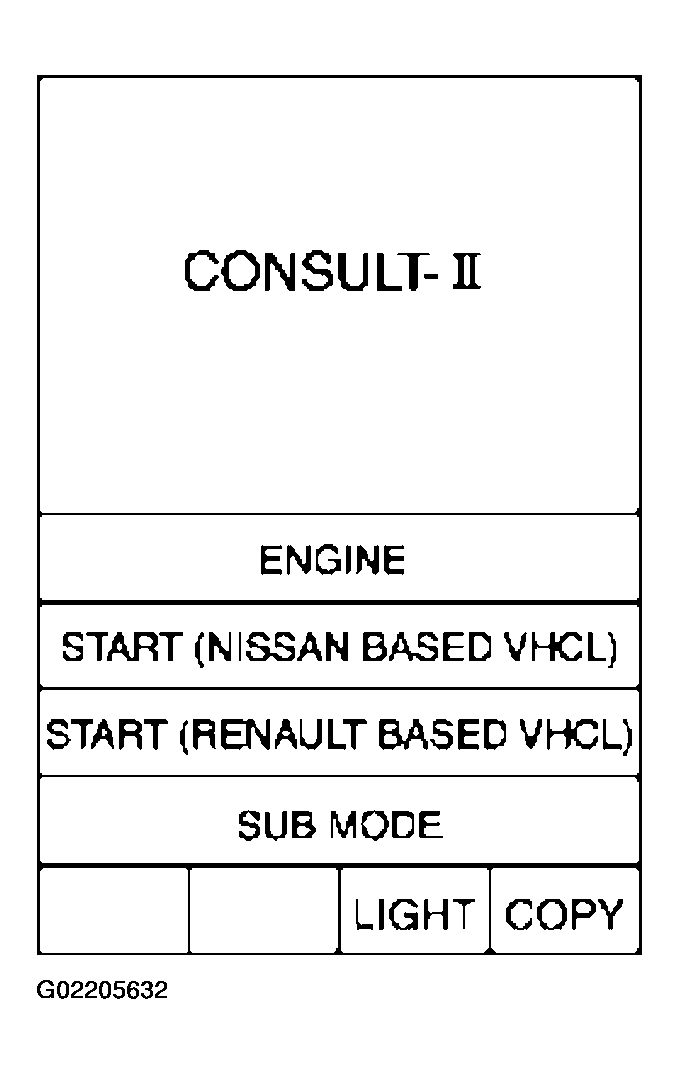

Fig 2: Consult II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit ".

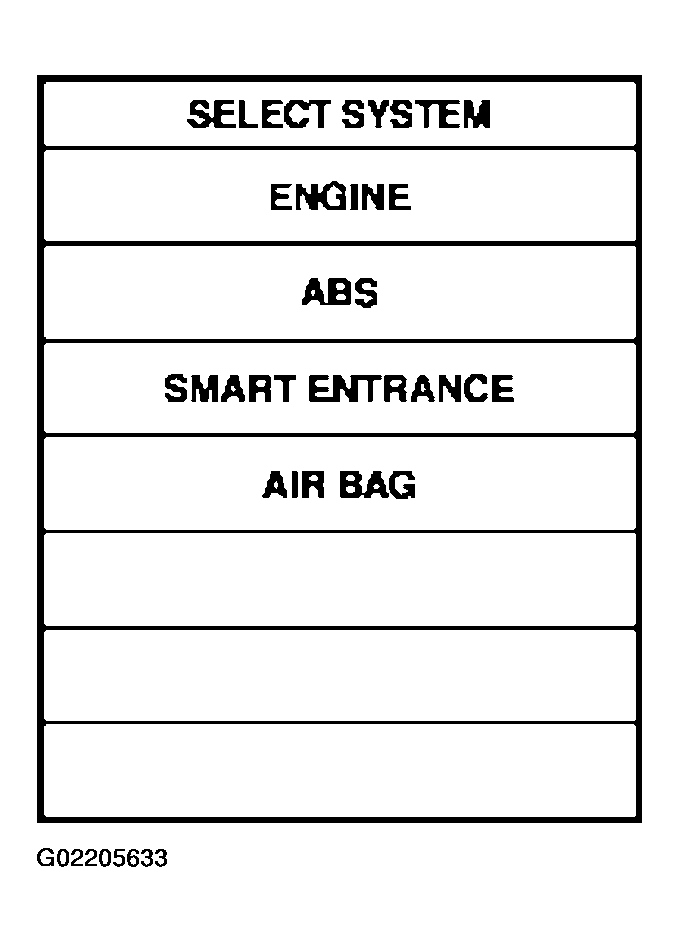

Fig 3: Consult II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEADLAMP".

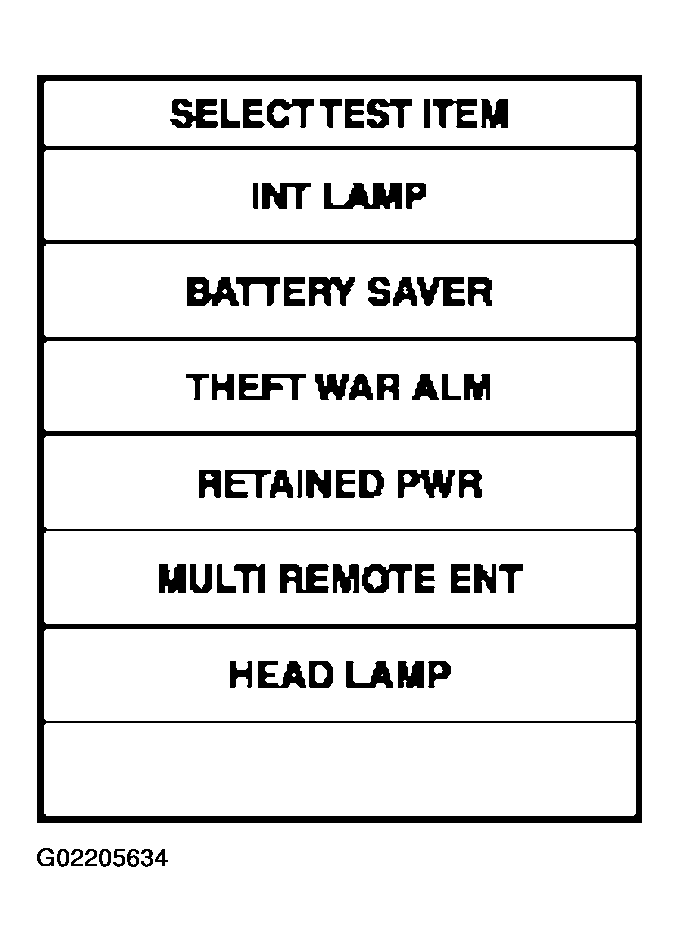

Fig 4: Consult II select Test Item Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

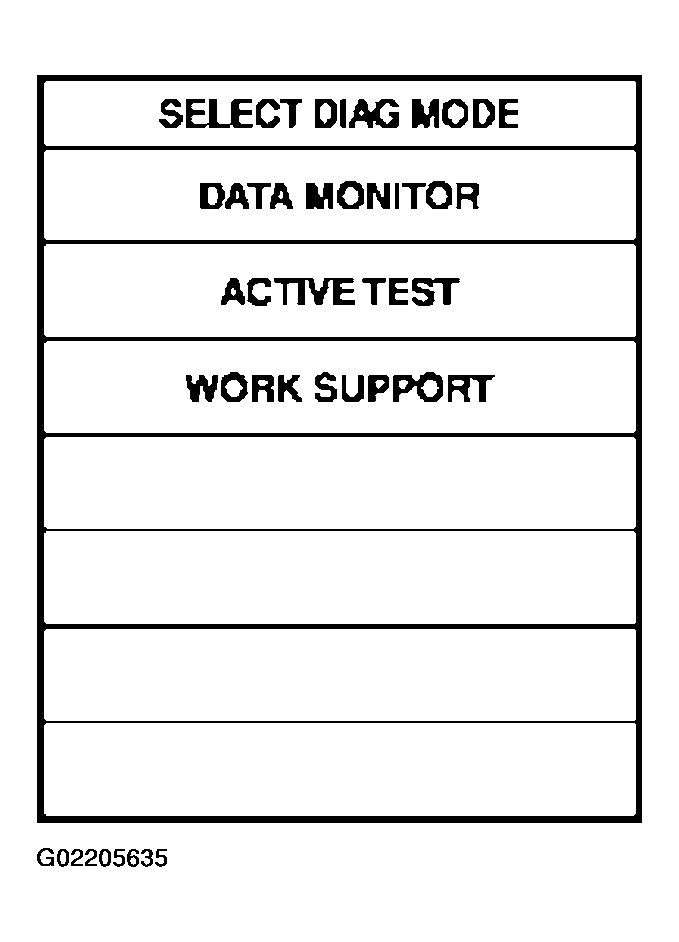

Fig 5: Consult II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
