Parking License And Tail Lamps: Schematic

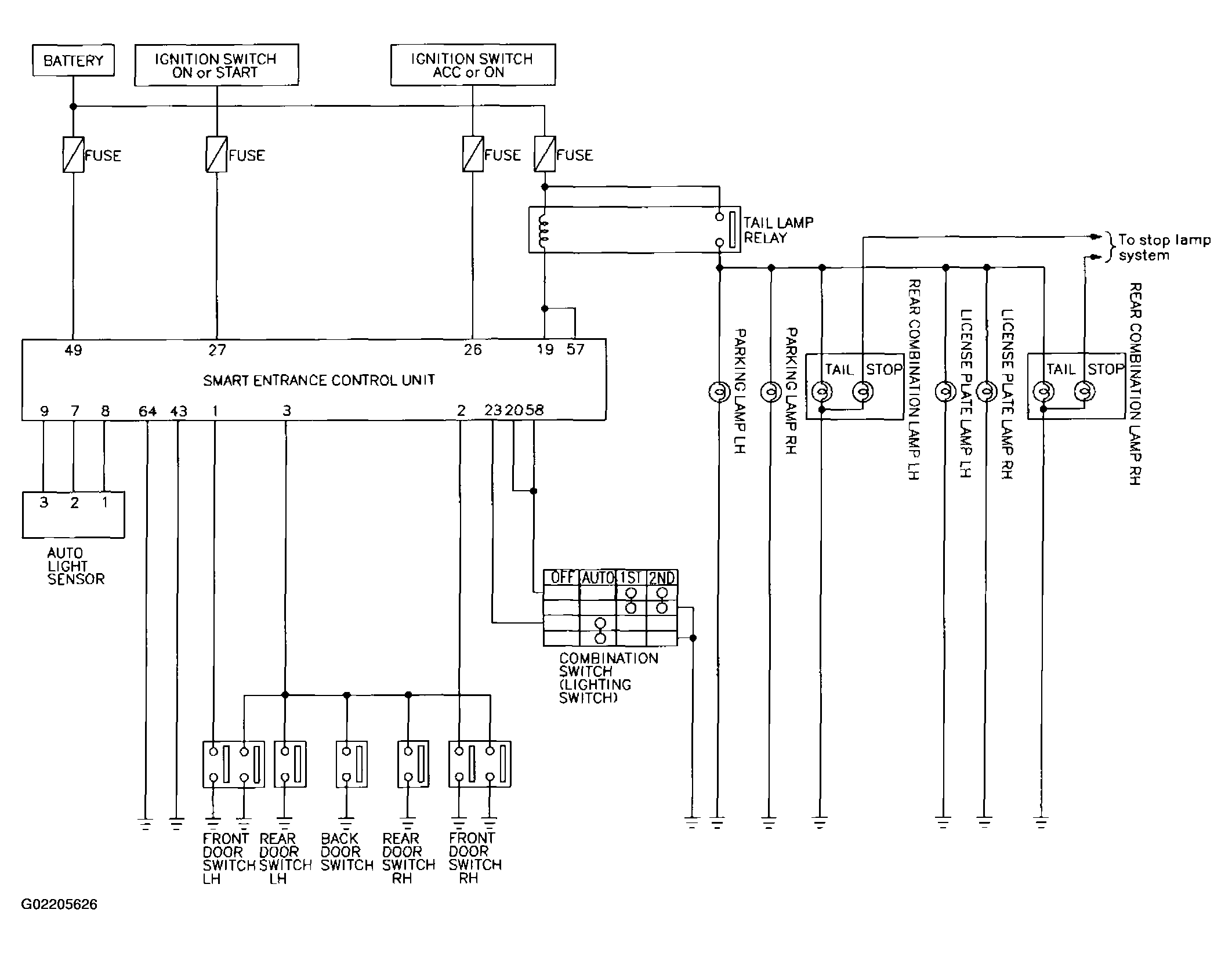

Fig 1: Parking, License And Tail Lamps Schematic Diagram
G02205626Courtesy of NISSAN MOTOR CO., U.S.A.
