Wiring Diagram - AT - HLR/C

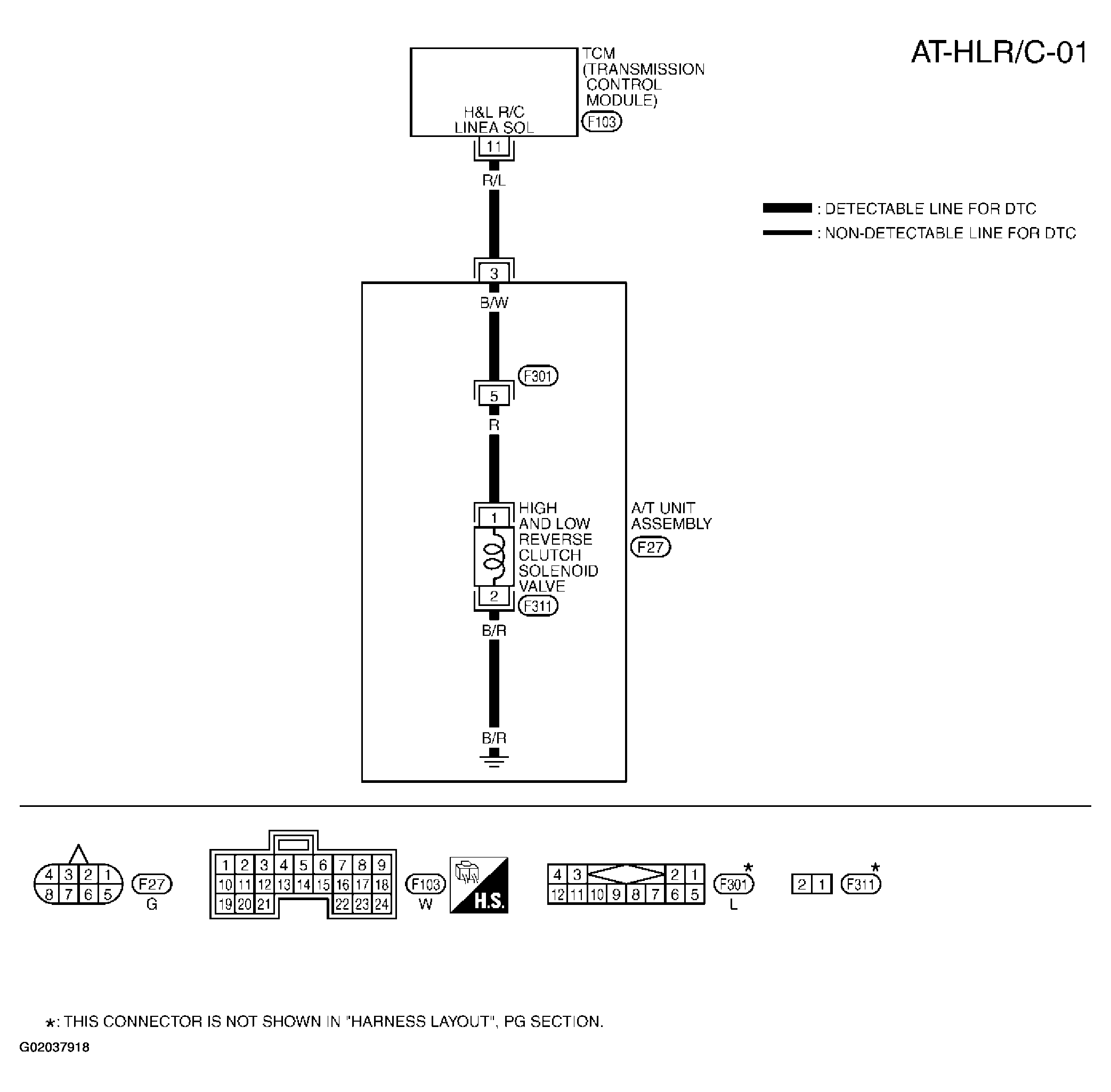

Fig 1: Wiring Diagram Of AT-HLR/C-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal and data are reference value. Measured between each terminal and ground.

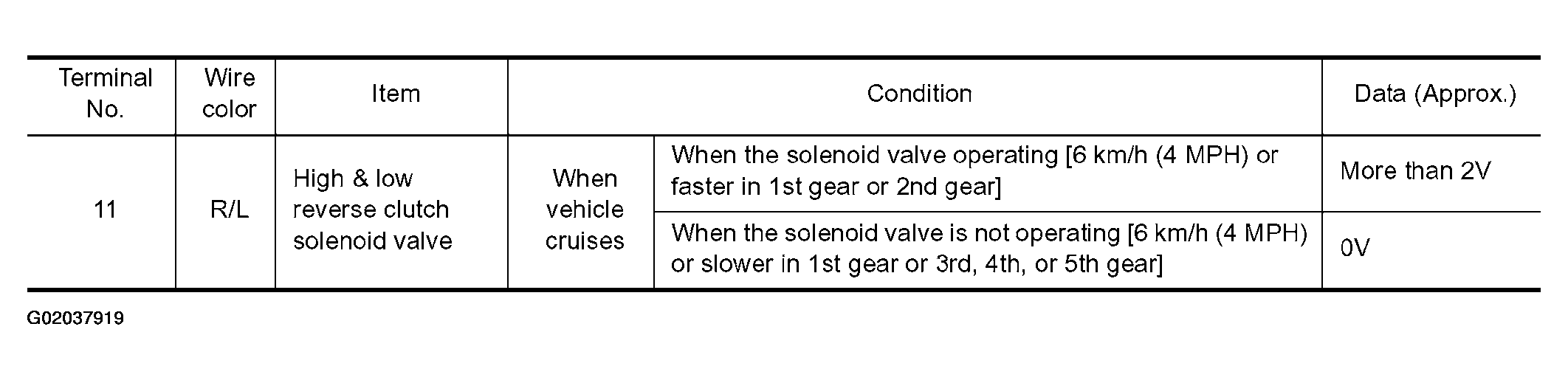

Fig 2: Identifying TCM Terminal And Data Are Reference Value Table

Courtesy of NISSAN MOTOR CO., U.S.A.
