Vanity Mirror And Trunk Room Lamps: Wiring Diagram

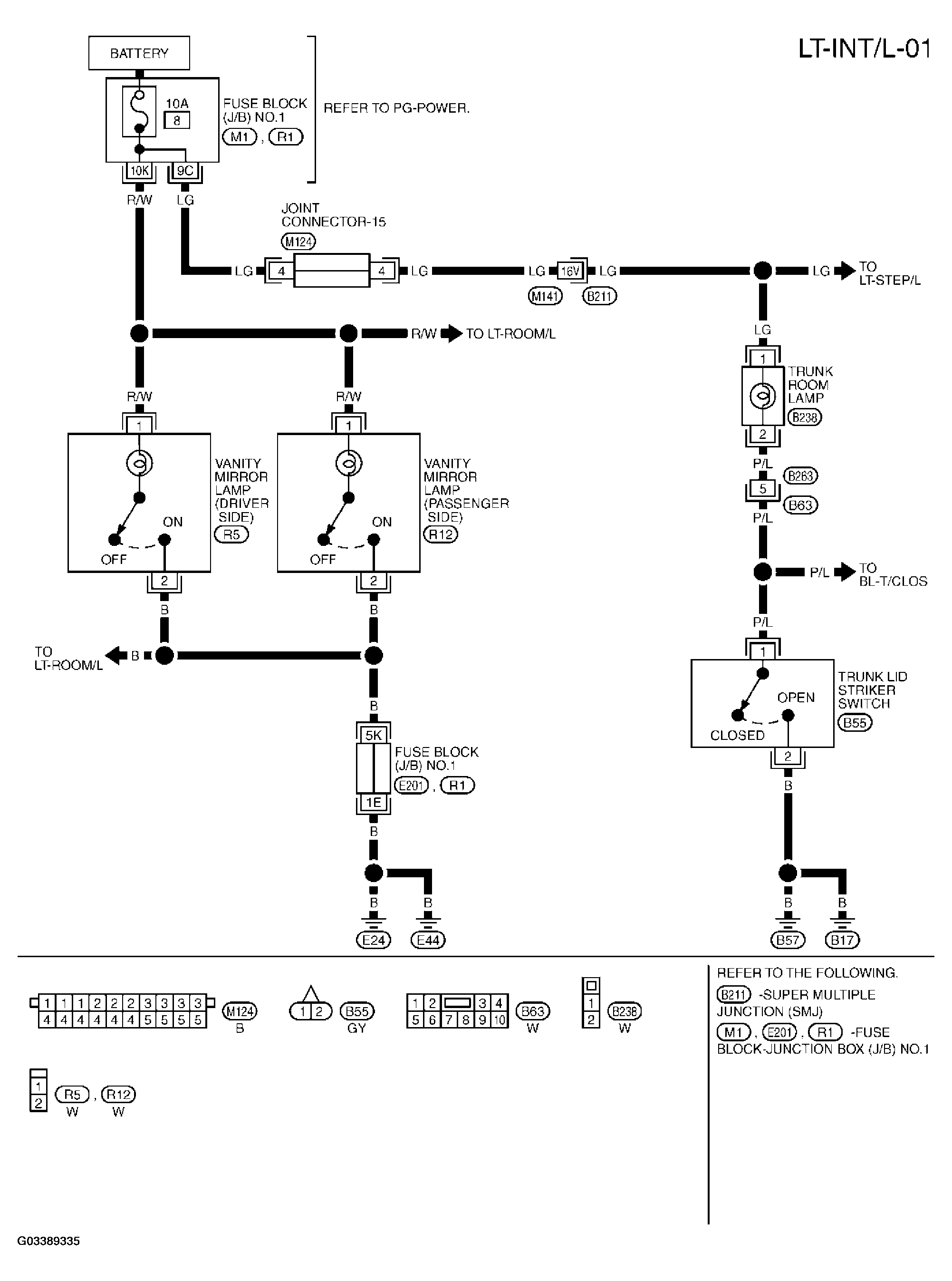

Fig 1: Wiring Diagram - Vanity Mirror And Trunk Room Lamps - LT-INT/L-01

G03389335

Courtesy of NISSAN MOTOR CO., U.S.A.
