Removal and Installation: Sec.251.280.487.680.969

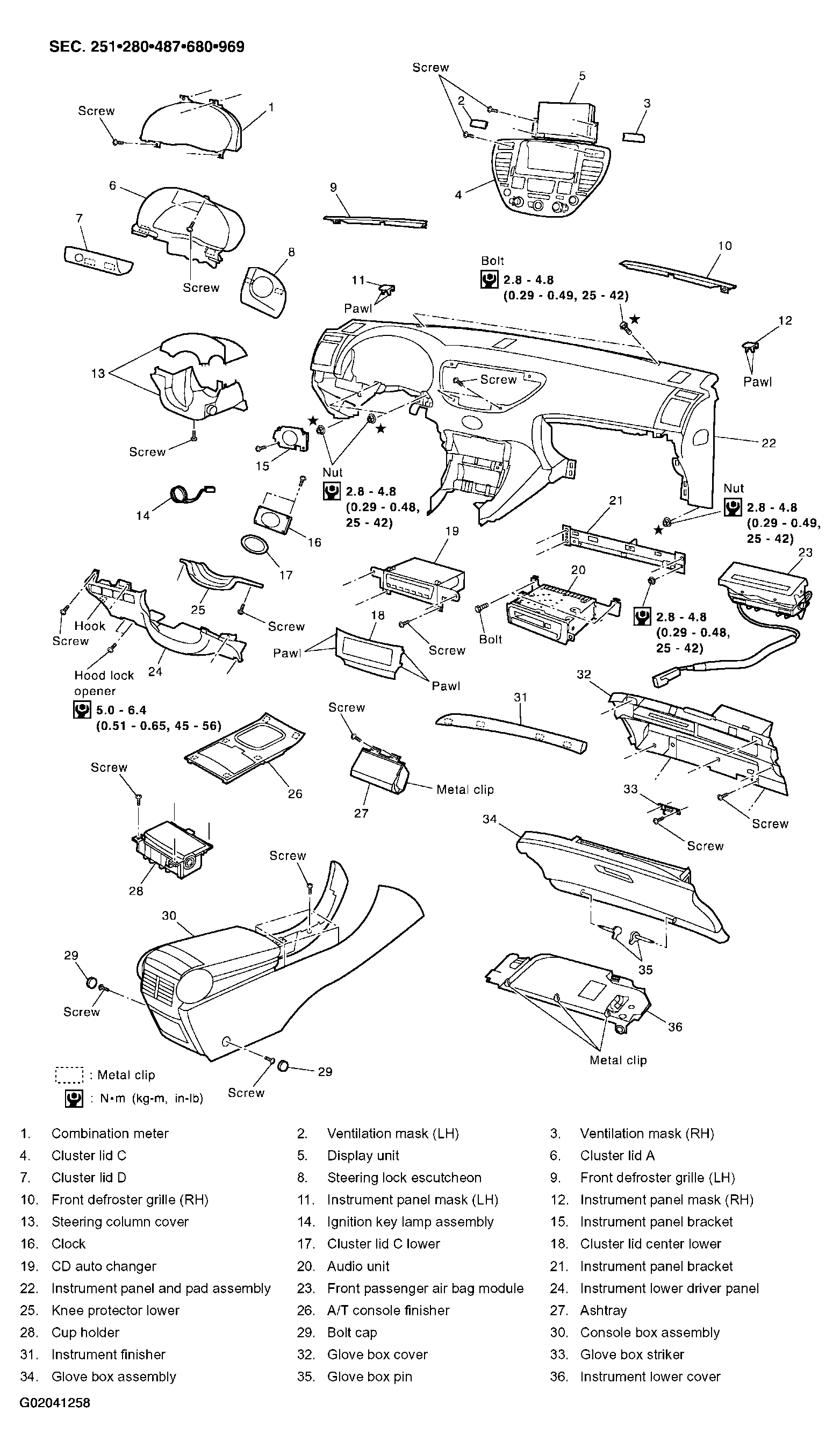

Fig 1: Exploded View Of Instrument Panel Assembly Components And Torque Specifications

G02041258

Courtesy of NISSAN MOTOR CO., U.S.A.
