Combination Meter

  1. Remove screws with power tool, and disconnect connectors.
  2. Turn to right part of meter come to your side. Push down to front face of meter up.
    CAUTION: Cover meter with cloth avoid contact with meter bracket that may cause scratches or damages.

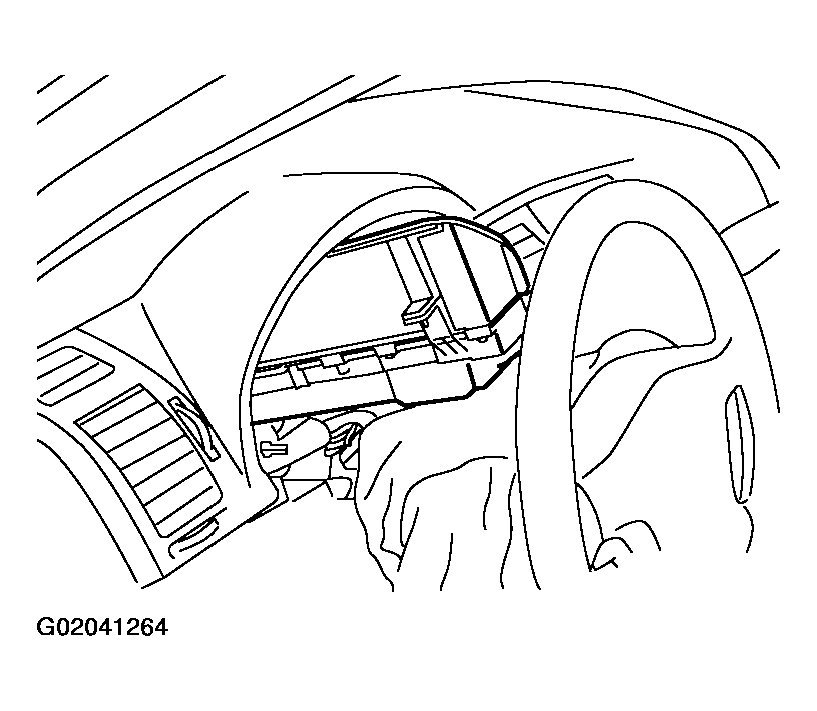

    Fig 1: Turning Combination Meter
    G02041264Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Pull meter to your side, then left side (Confirm the back of meter faces you).

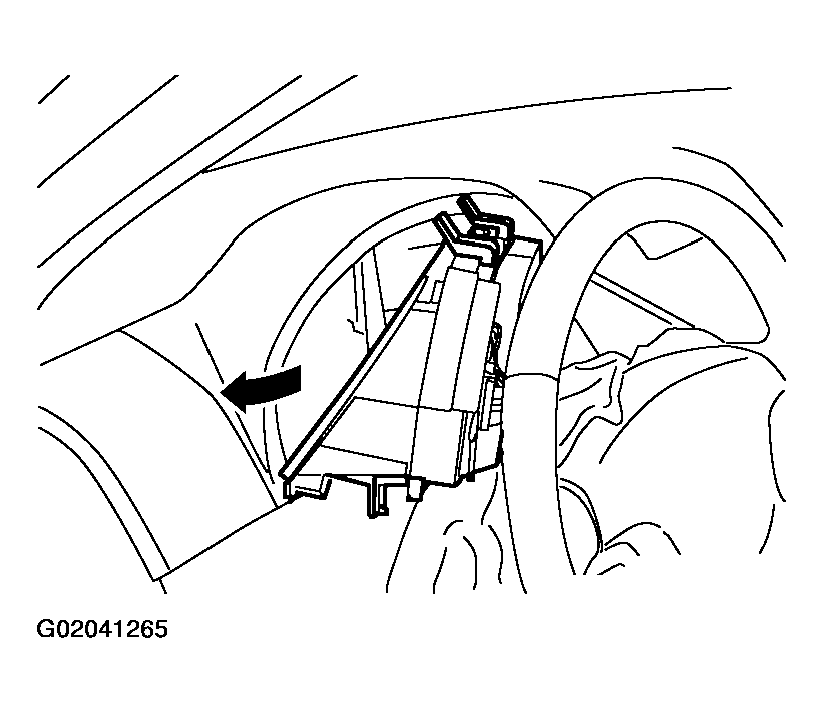

    Fig 2: Pulling Combination Meter Front Then Left Side
    G02041265Courtesy of NISSAN MOTOR CO., U.S.A.
